KDY260L-PBMEYW3 (2001)
Toyota Dyna
Production
Aug 2001
-
Sep 2006
Engine
2KDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0108- )KDY22#,23#,25#,26#

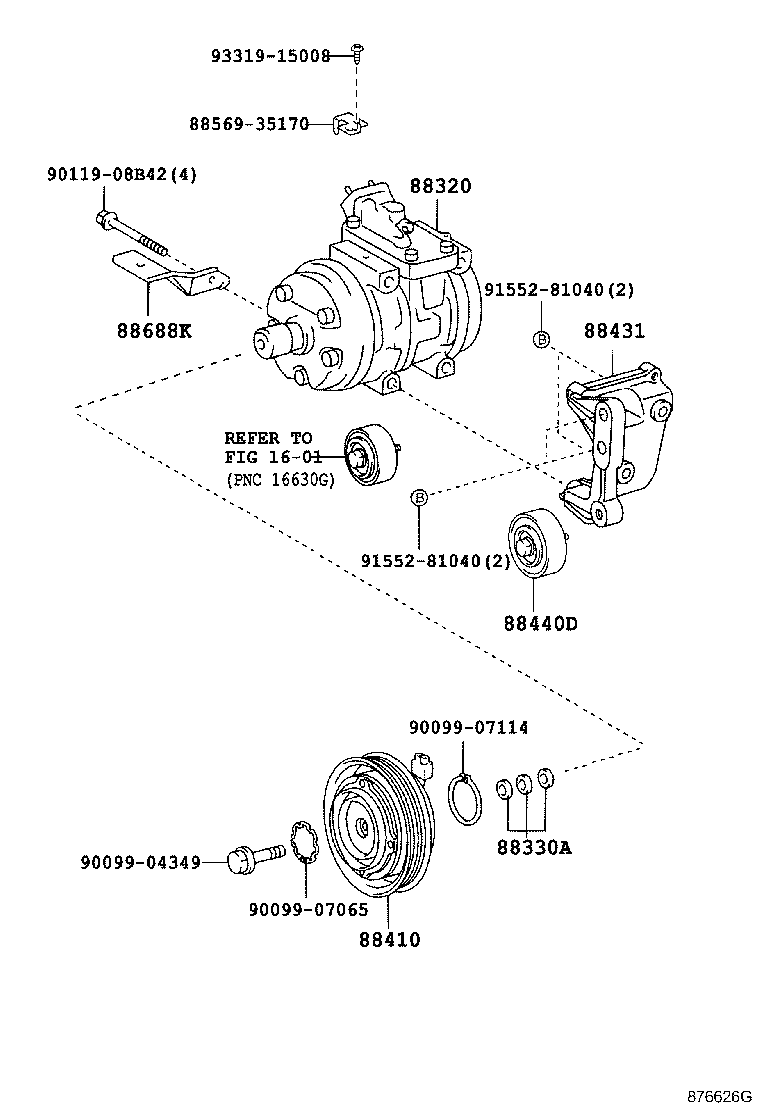

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-25110 |
KDY22#,23#,25#,26#..EUR |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-28200 |
KDY22#,23#,25#,26#..EUR |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-25240 |
KDY220,230,250,260 |
1 | ||
| 88431-35250 |
KDY221,231,251..EUR;KDY220,230,250,26#..LHD |
1 | ||
| 88440D - PULLEY ASSY, IDLE NO.2 | ||||
| 88440-25060 |
KDY220,230,250,260 |
1 | ||
| 88440-35120 |
KDY221,231,251..EUR;KDY220,230,250,26#..LHD |
1 | ||
| Common parts | ||||
| 88569-35170 | ||||
| 90099-04349 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 90119-08B42 | ||||
| 91552-81040 | ||||
| 93319-15008 | ||||
| Linked diagrams | ||||
| 1601 | ||||
