KDY260L-PBMEYW3 (2001)

Toyota Dyna

Production Aug 2001 - Sep 2006
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

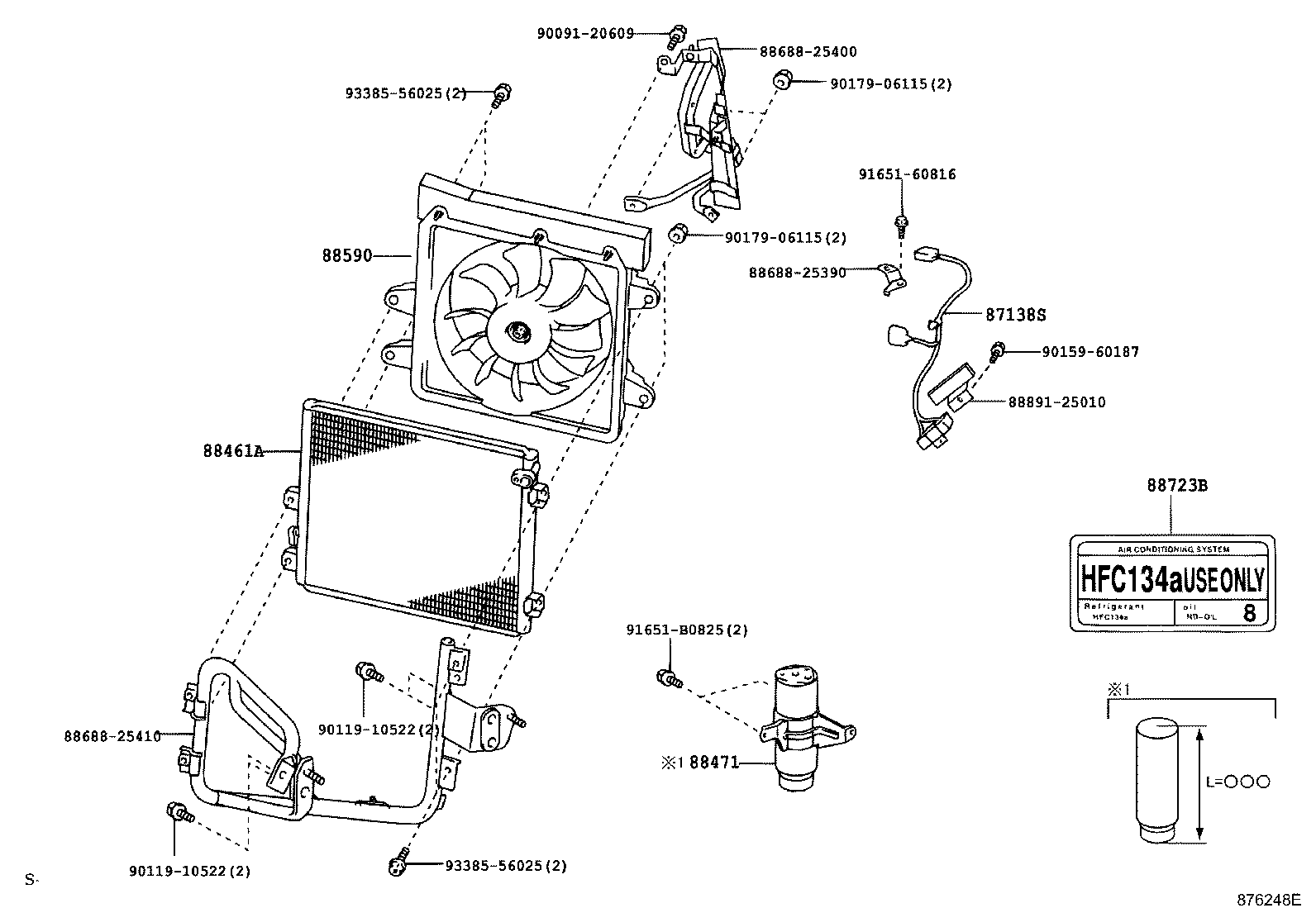

ILLUST NO. 1 OF 3(0204- )KDY22#,23#,25#,26#..LHD

Click highlighted areas on diagram

CONDENSER & RECEIVER

diagram 87138S 88461A 88471 88590 8868825390 8868825400 8868825410 88723B 8889125010 9009120609 9011910522 9011910522 9015960187 9017906115 9017906115 9165160816 91651B0825 9338556025 9338556025
Part # Description Qty Price
88461A - CORE, COOLER CONDENSER
88461-25080

KDY220,230,250,260..LHD

 1
88461-37060

KDY220,230,250,260..LHD

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-34010

KDY22#,23#,25#,26#..EUR

L=187

 1
Common parts
88688-25390
88688-25400
88688-25410
88891-25010
90091-20609
90119-10522
90159-60187
90179-06115
91651-60816
91651-B0825
93385-56025

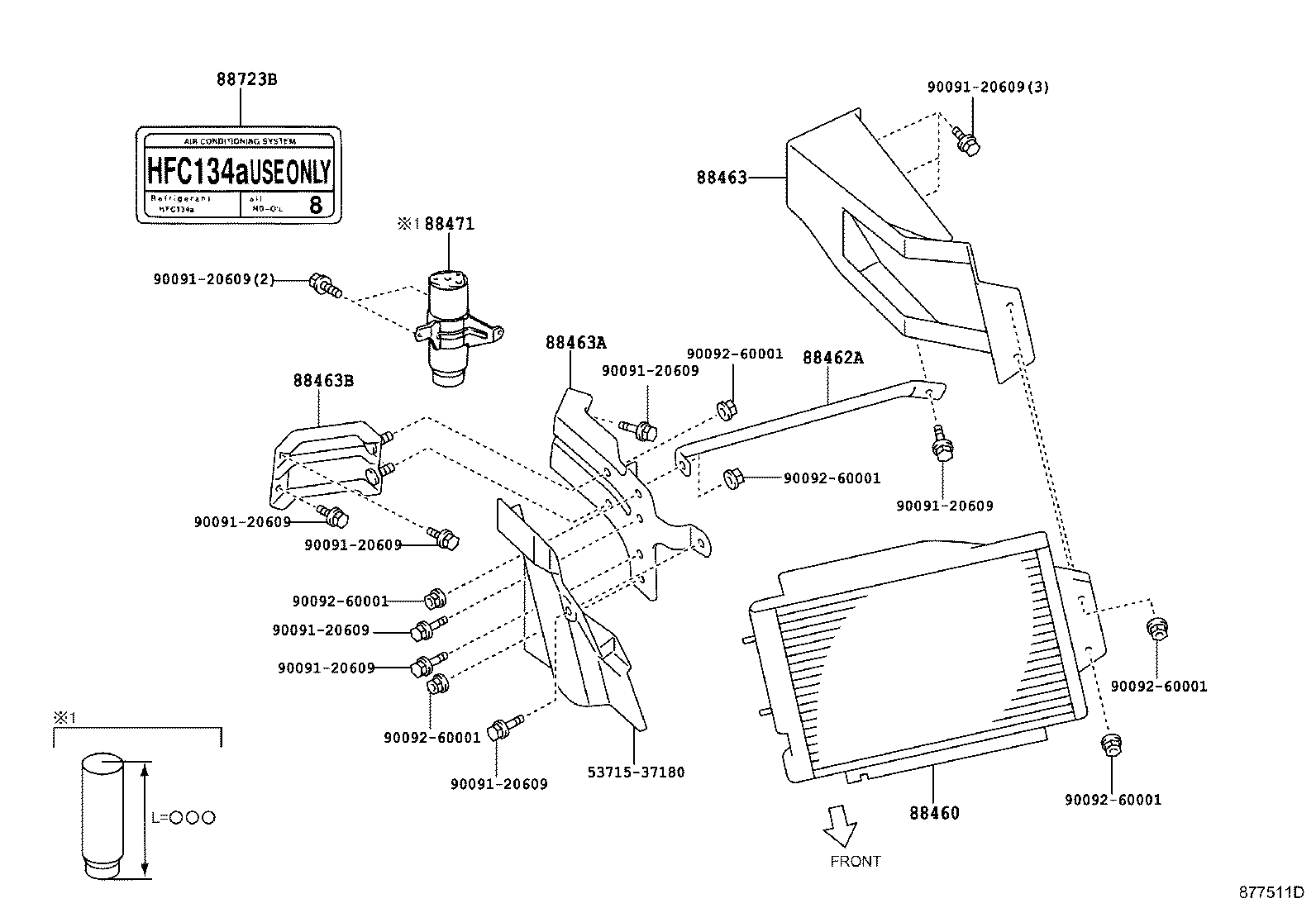

ILLUST NO. 1 OF 3(0108-0204)KDY220,230,250,260..LHD

Click highlighted areas on diagram

CONDENSER & RECEIVER

diagram 5371537180 88460 88462A 88463 88463A 88463B 88471 88723B 9009120609 9009120609 9009120609 9009120609 9009120609 9009120609 9009120609 9009120609 9009120609 9009260001 9009260001 9009260001 9009260001 9009260001 9009260001
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-25230

KDY220,230,250,260..LHD

 1
88462A - HOLDER, CONDENSER
88462-25010

KDY220,230,250,260..LHD

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-25050

KDY220,230,250,260..LHD

 1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-25070

KDY220,230,250,260..LHD

 1
88463B - BRACKET, COOLER CONDENSER, NO.3
88463-25090

KDY220,230,250,260..LHD

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-34010

KDY22#,23#,25#,26#..EUR

L=187

 1
Common parts
53715-37180
90091-20609
90092-60001
