Toyota Dyna KDY260 HEATING & AIR CONDITIONING - WATER PIPING

KDY260L-PBMEYW3 (2001)

Toyota Dyna

Production Aug 2001 - Sep 2006

Engine 2KDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

Click highlighted areas on diagram

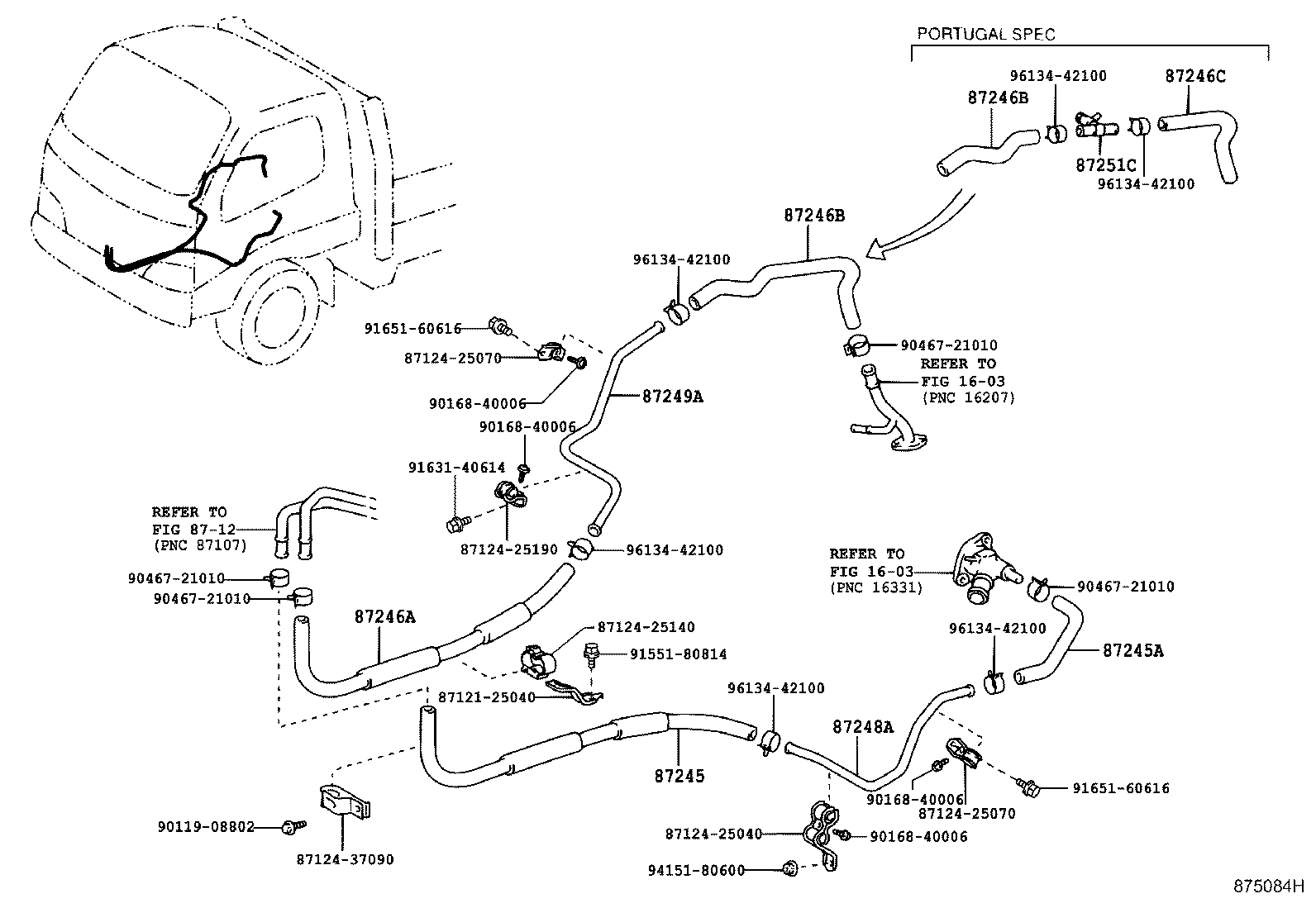

FRONT

Click highlighted areas on diagram

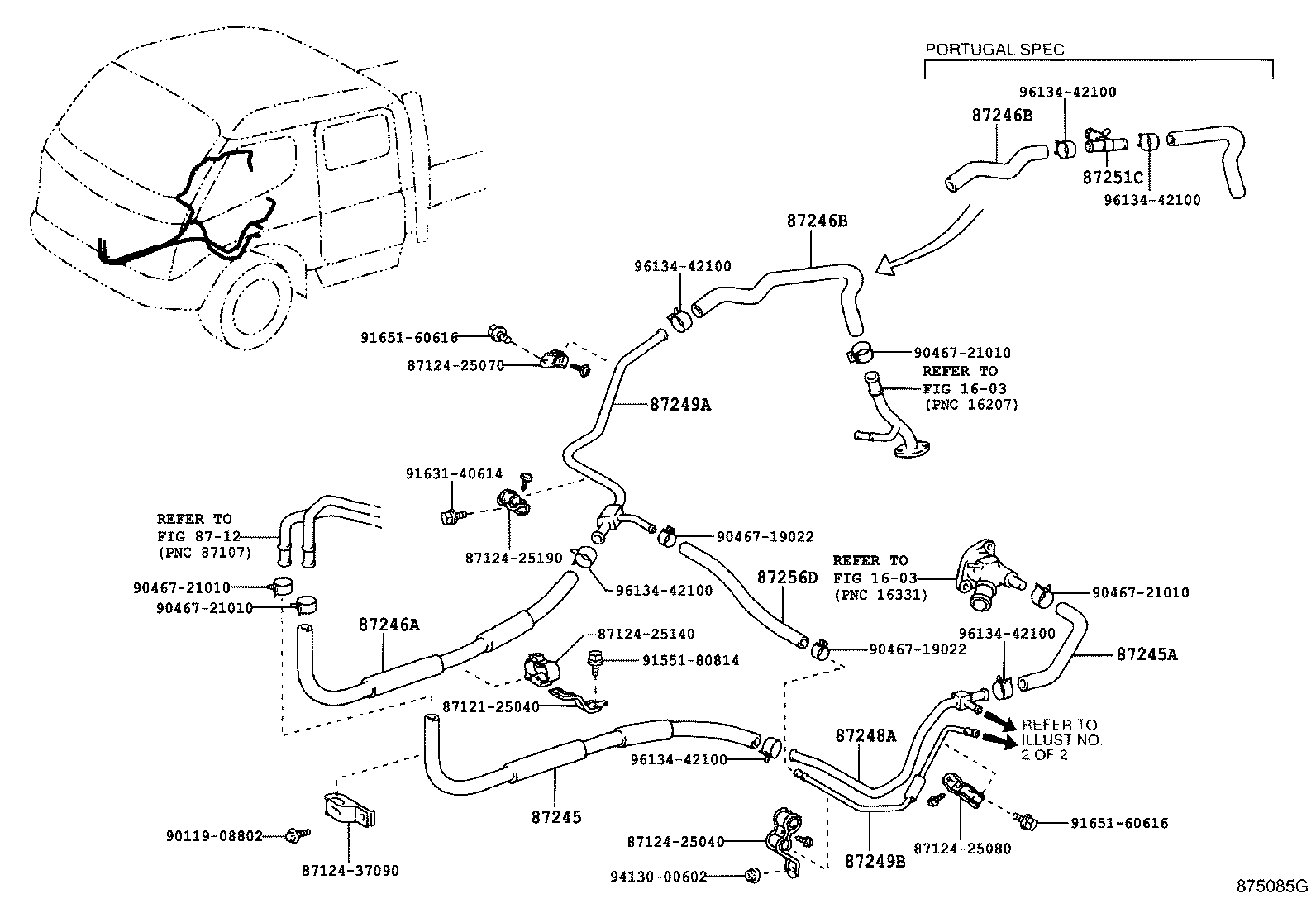

FRONT..W(REAR HEATER)

Part #	Description	Period	Qty
87245 - HOSE, HEATER WATER, INLET
87245-25550	KDY230,250,260..10T,125T W(REAR HEATER)	08/2001 - 09/2006	1
87245-25690	KDY220,230,250,260..LHD	08/2001 - 09/2006	1
87245A - HOSE, HEATER WATER, INLET A
87245-25700	KDY220,230,250,260..LHD	08/2001 - 09/2006	1
87245-25560	KDY230,250,260..10T,125T W(REAR HEATER)	08/2001 - 09/2006	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-25570	KDY230,250,260..10T,125T W(REAR HEATER)	08/2001 - 09/2006	1
87245-25710	KDY220,230,250,260..LHD	08/2001 - 09/2006	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-25720	KDY220,230,250,260..LHD	08/2001 - 09/2006	1
87245-25580	KDY230,250,260..10T,125T W(REAR HEATER)	08/2001 - 09/2006	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-25720	KDY220,230,250,260..LHD	08/2001 - 09/2006	1
87245-25580	KDY230,250,260..10T,125T W(REAR HEATER)	08/2001 - 09/2006	1
87248A - PIPE, HEATER WATER INLET, A
87248-25150	KDY230,250,260..10T,125T W(REAR HEATER)	08/2001 - 09/2006	1
87249A - PIPE, HEATER WATER OUTLET, A
87248-25170	KDY230,250,260..10T,125T W(REAR HEATER)	08/2001 - 09/2006	1
87249B - PIPE, HEATER WATER OUTLET, B
87248-25160	KDY230,250,260..10T,125T	08/2001 - 09/2006	1
87256D - HOSE, REAR HEATER WATER OUTLET, D
99556-20300	KDY230,250,260..10T,125T *H,L=250	08/2001 - 09/2006	1
Common parts
87121-25040
87124-25040
87124-25070
87124-25080
87124-25140
87124-25190
87124-37090
90119-08802
90467-19022
90467-21010
91551-80814
91631-40614
91651-60616
94130-00602
96134-42100
Linked diagrams
1603
8712

Click highlighted areas on diagram

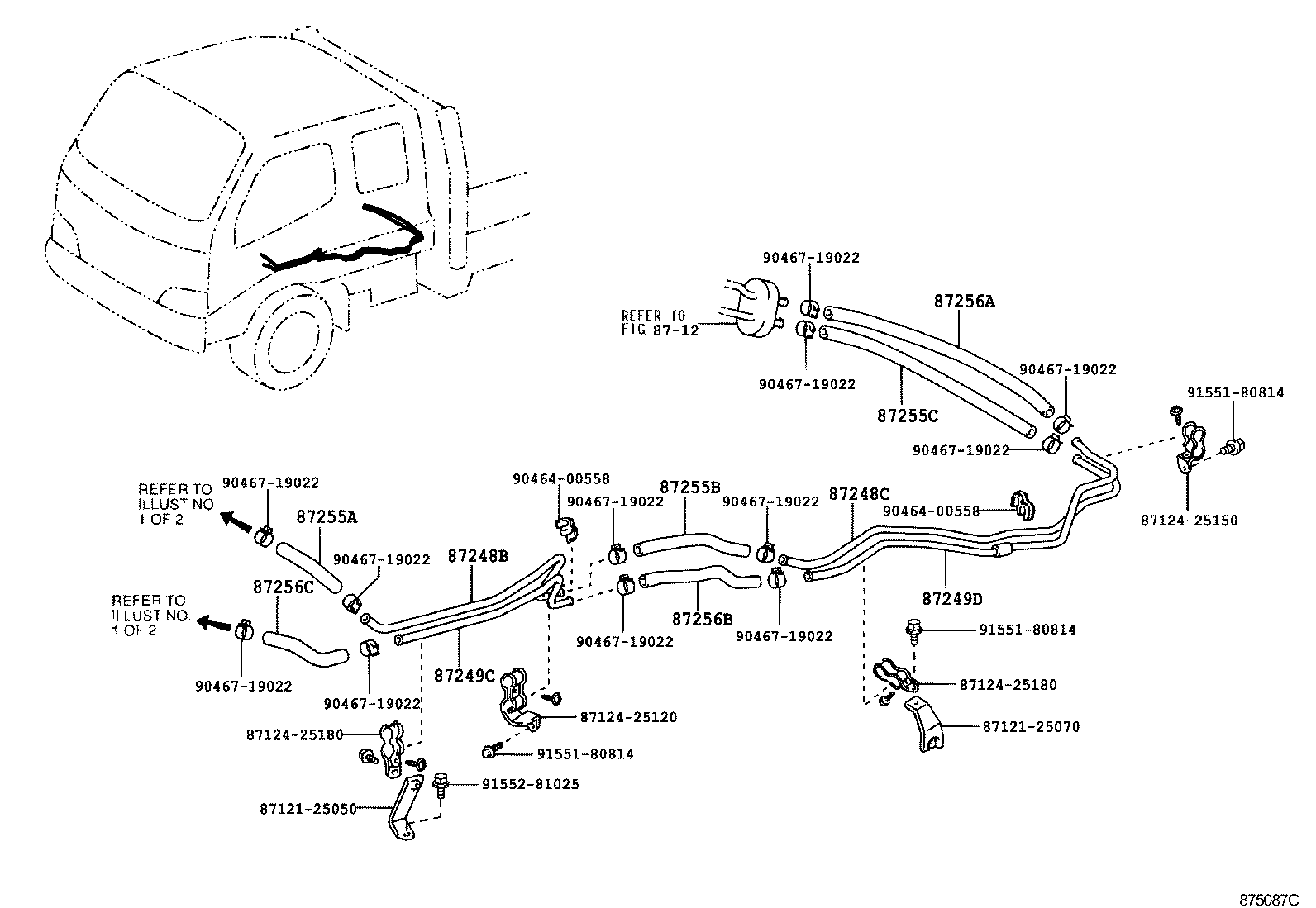

REAR
