KDY260L-PBMEYW3 (2001)

Toyota Dyna

Production Aug 2001 - Sep 2006
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

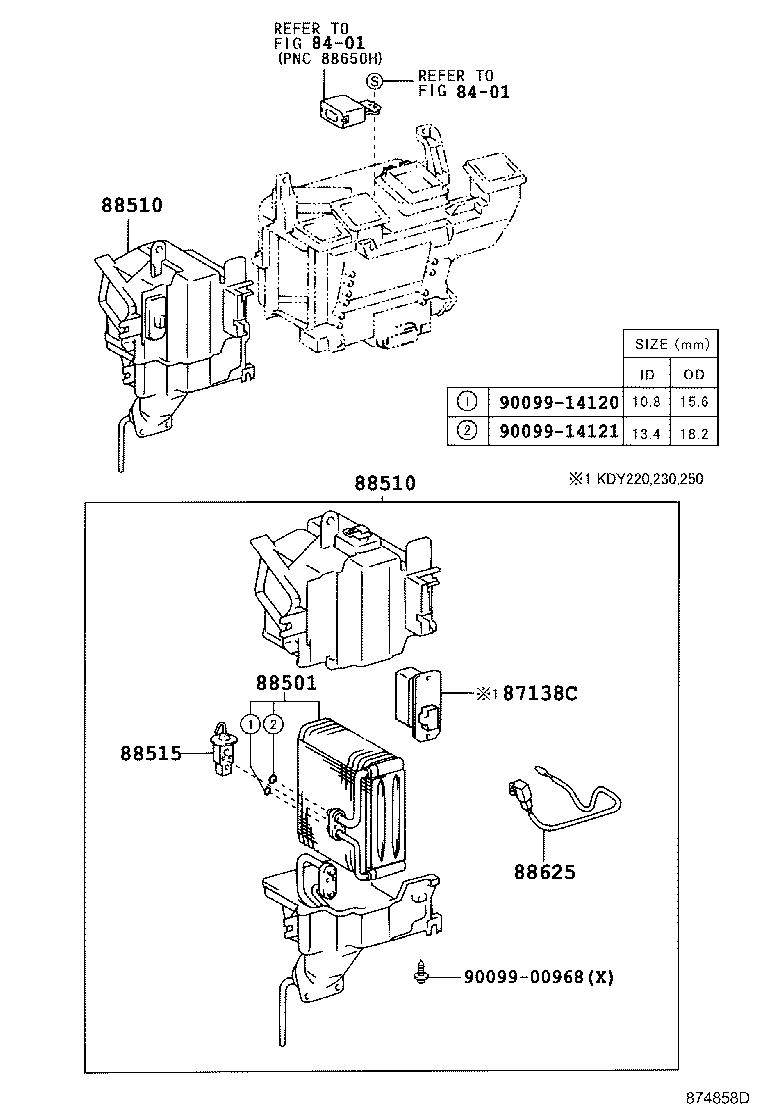

ILLUST NO. 1 OF 2(0107-0609)KDY220..RHD..CBU ; (0107-0609)KDY230,250,LY22#,23#..RHD ; (0312-0610)KDY

Click highlighted areas on diagram

FRONT(DEALER OPTION)

diagram 8401 8401 87138C 88501 88510 88510 88515 88625 9009900968 9009914120 9009914121
Part # Description Qty Price
88510 - UNIT ASSY, COOLER
88510-25080

KDY220,230,250,260..LHD

 1
88510 - UNIT ASSY, COOLER
88510-25080

KDY220,230,250,260..LHD

 1
88515 - VALVE, COOLER EXPANSION
88515-48040

KDY220,230,250,260..LHD

 1
88625 - THERMISTOR, COOLER, NO.1
88625-20460

KDY220,230,250,260

 1
Common parts
90099-00968
90099-14120
90099-14121
Linked diagrams
8401

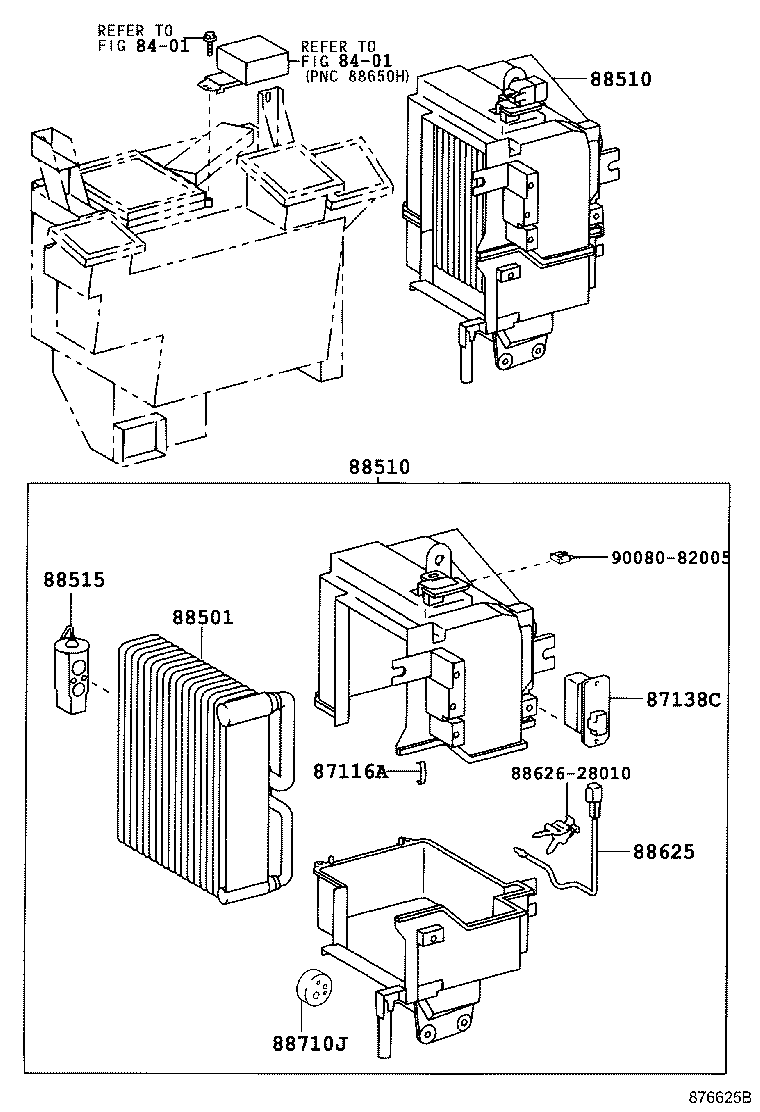

ILLUST NO. 1 OF 2(0108-0609)LHD

Click highlighted areas on diagram

FRONT(DEALER OPTION)

diagram 8401 8401 87116A 87138C 88501 88510 88510 88515 88625 8862628010 88710J 9008082005
Part # Description Qty Price
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010

KDY220,230,250,260..LHD

 3
88510 - UNIT ASSY, COOLER
88510-25080

KDY220,230,250,260..LHD

 1
88510 - UNIT ASSY, COOLER
88510-25080

KDY220,230,250,260..LHD

 1
88515 - VALVE, COOLER EXPANSION
88515-48040

KDY220,230,250,260..LHD

 1
88625 - THERMISTOR, COOLER, NO.1
88625-20460

KDY220,230,250,260

 1
88710J - TUBE, AIR CONDITIONER CONNECTOR
88710-37350

KDY220,230,250,260..LHD

 1
Common parts
88626-28010
90080-82005
Linked diagrams
8401

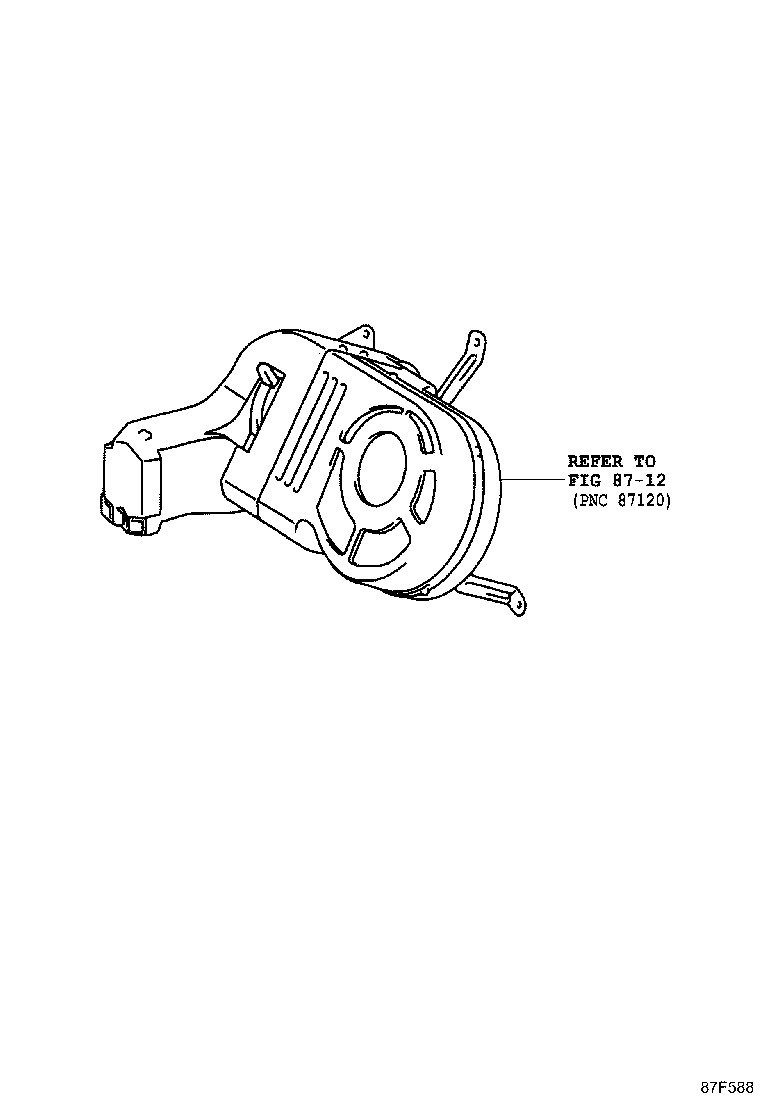

ILLUST NO. 2 OF 2(0108- )KDY23#,25#,26#..10T,125T

Click highlighted areas on diagram

REAR HEATER

diagram 8712
Part # Description Qty Price
Linked diagrams
8712
