KDY260L-PBMEYW3 (2001)

Toyota Dyna

Production Aug 2001 - Sep 2006
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0107-0408) ; (0408- )GEN

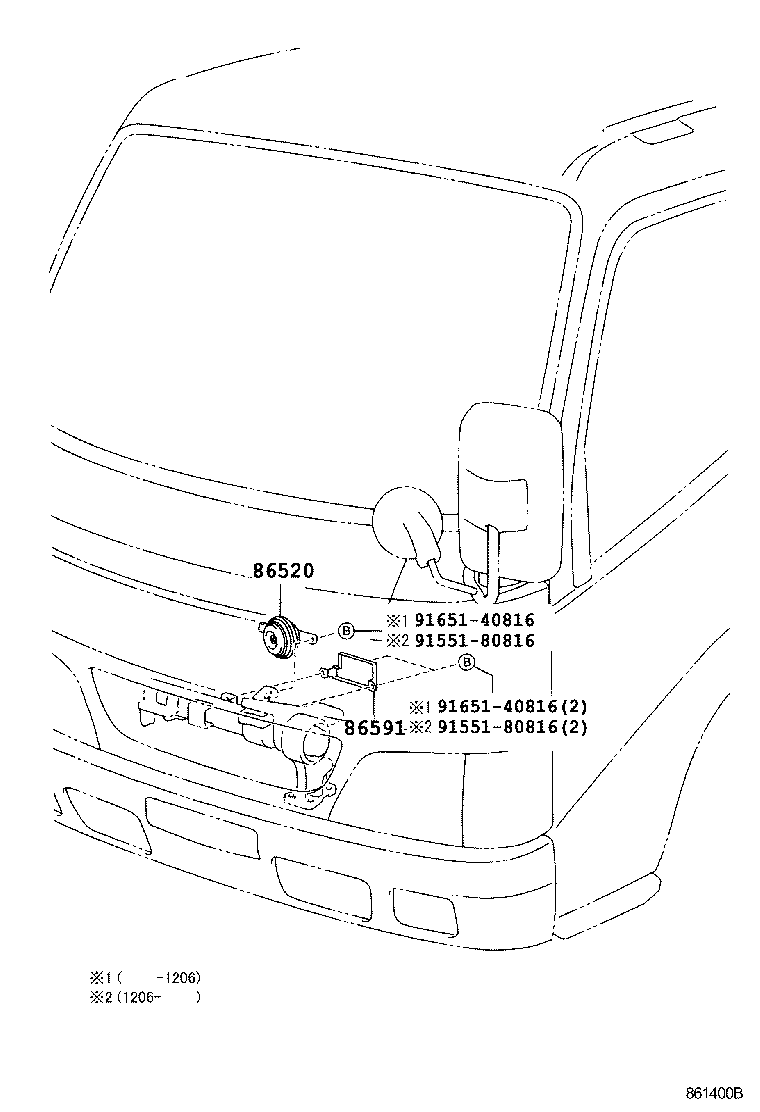

Click highlighted areas on diagram

diagram 86520 86591 9155180816 9155180816 9165140816 9165140816
Part # Description Qty Price
86520 - HORN ASSY, LOW PITCHED
86520-27040

KDY220,230,250,260,LY220,230

 1
86591 - BRACKET, HORN
86591-25030

KDY220,230,250,260,LY220,230

 1
Common parts
91551-80816
91651-40816

(0408- )ARL,EUR,SA

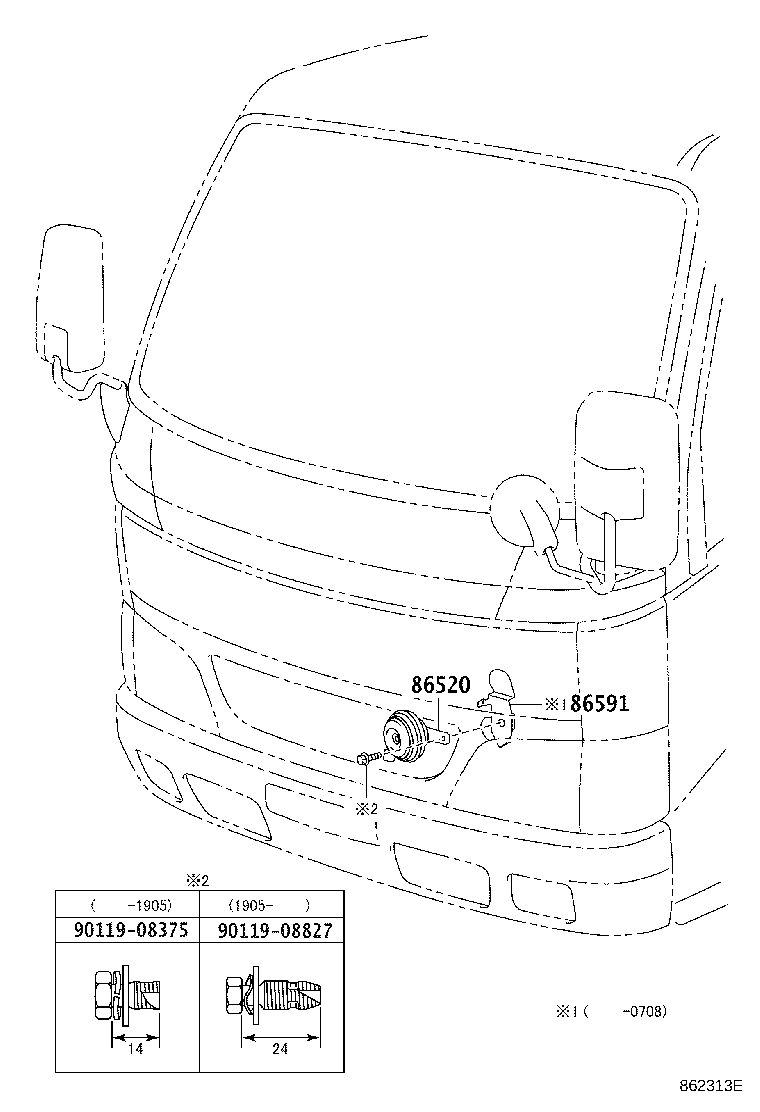

Click highlighted areas on diagram

diagram 86520 86591 9011908375 9011908827
Part # Description Qty Price
86520 - HORN ASSY, LOW PITCHED
86520-27040

KDY220,230,250,260,LY220,230

 1
86591 - BRACKET, HORN
86591-25030

KDY220,230,250,260,LY220,230

 1
Common parts
90119-08375
90119-08827
