KDY260L-PBMEYW3 (2001)

Toyota Dyna

Production Aug 2001 - Sep 2006
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0108- )KDY22#,23#,25#,26# ; (1610- )LY230

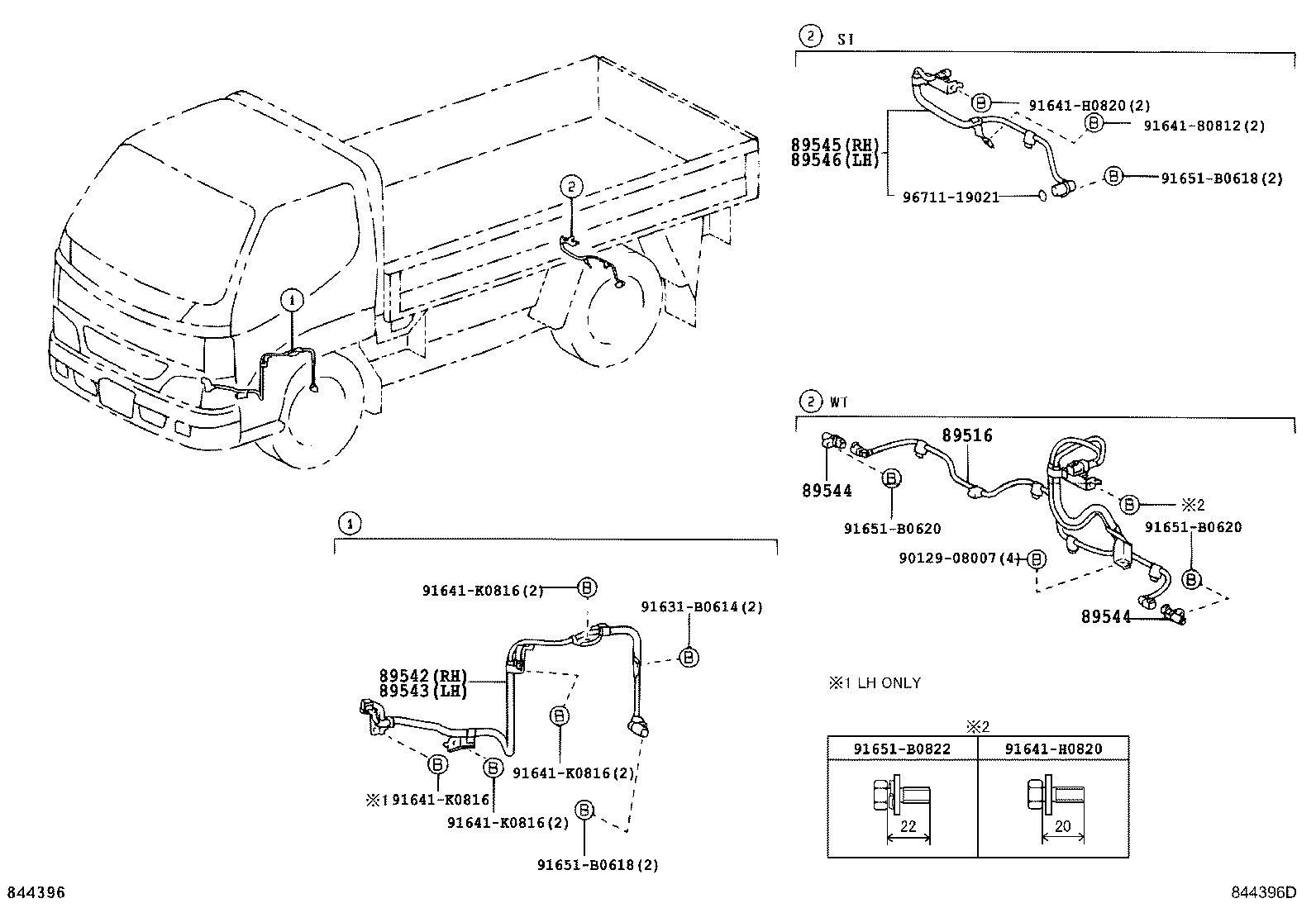

Click highlighted areas on diagram

diagram 89516 89542 89543 89544 89544 89545 89546 9012908007 91631B0614 9164180812 91641H0820 91641H0820 91641K0816 91641K0816 91641K0816 91641K0816 91651B0618 91651B0618 91651B0620 91651B0620 91651B0822 9671119021
Part # Description Qty Price
89542 - SENSOR, SPEED, FRONT RH
89542-25010

KDY22#,23#,25#,26#..EUR

 1
89543 - SENSOR, SPEED, FRONT LH
89543-25010

KDY22#,23#,25#,26#..EUR

 1
89544 - SENSOR, SKID CONTROL
89544-36030

KDY23#,25#,26#..WT..IV3

 2
89544 - SENSOR, SKID CONTROL
89544-36030

KDY23#,25#,26#..WT..IV3

 2
Common parts
90129-08007
91631-B0614
91641-80812
91641-H0820
91641-K0816
91651-B0618
91651-B0620
91651-B0822
96711-19021
