KDY260L-PBMEYW3 (2001)

Toyota Dyna

Production Aug 2001 - Sep 2006
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 5(0107-1610)LHD

Click highlighted areas on diagram

COWL & INSTRUMENT PANEL

diagram 82131 82141 82666A 82817 82817 8401 8401 8401 8401 8401 8601 9011906923 9011906923
Part # Description Qty Price
82131 - WIRE, COWL
82131-2E250

KDY220,230,250,260..LHD

DENMARK OR NORWAY OR SWEDEN SPEC

 1
82131-2E240

KDY220,230,250,260..LHD

W(HEADLAMP LEVELING)

 1
82131-2E280

KDY260;KDY230,250..10T,125T

W(DAY TIME RUNNING LIGHT SYSTEM & HEADLAMP LEVELING)

 1
82131-2E271

KDY220,230,250,260..LHD

W(HEADLAMP LEVELING)

 1
82131-2E251

KDY220,230,250,260..LHD

W(DAY TIME RUNNING LIGHT SYSTEM)

 1
82131-2E282

KDY220,230,250,260..LHD

W(DAY TIME RUNNING LIGHT SYSTEM & HEADLAMP LEVELING)

 1
82131-2E252

KDY220,230,250,260..LHD

W(DAY TIME RUNNING LIGHT SYSTEM)

 1
82131-2E281

KDY220,230,250,260..LHD

W(DAY TIME RUNNING LIGHT SYSTEM & HEADLAMP LEVELING)

 1
82131-2E270

KDY220,230,250,260..LHD

NETHERLAND SPEC OR AUSTRIA SPEC OR PORTUGAL SPEC

 1
82131-2E241

KDY220,230,250,260..LHD

 1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-37110

KDY220,230,250,260..LHD

 2
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-37110

KDY220,230,250,260..LHD

 2
Common parts
90119-06923
Linked diagrams
8401
8601

ILLUST NO. 1 OF 5(0108- )KDY22#,23#,25#,26#

Click highlighted areas on diagram

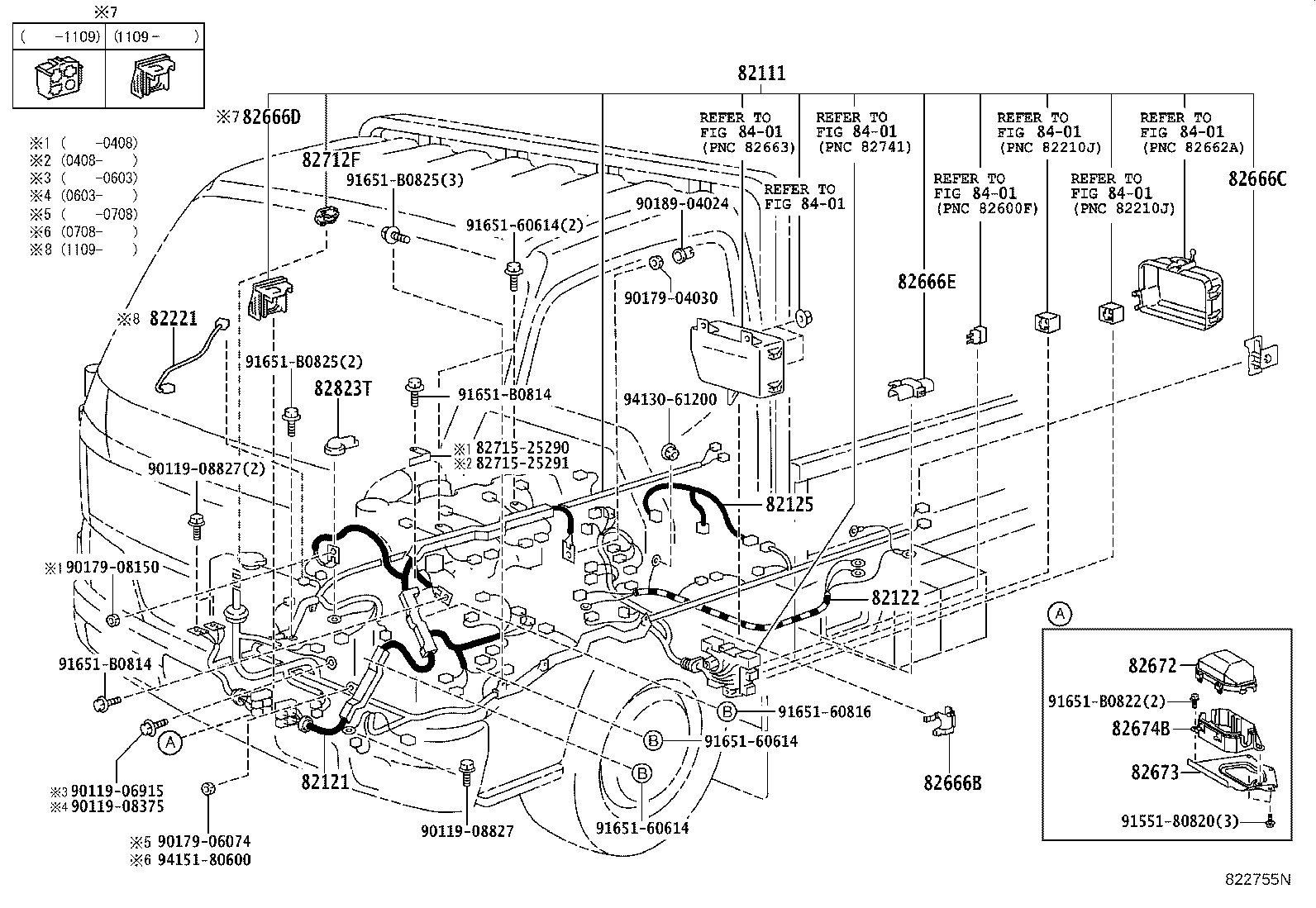

ENGINE ROOM

diagram 82111 82121 82122 82125 82221 82666B 82666C 82666D 82666E 82672 82673 82674B 82712F 8271525290 8271525291 82823T 8401 8401 8401 8401 8401 8401 8401 9011906915 9011908375 9011908827 9011908827 9017904030 9017906074 9017908150 9018904024 9155180820 9165160614 9165160614 9165160614 9165160816 91651B0814 91651B0814 91651B0822 91651B0825 91651B0825 9413061200 9415180600
Part # Description Qty Price
82111 - WIRE, ENGINE ROOM MAIN
82111-25420

KDY230,250,260..10T,125T

 1
82111-25430

KDY230,250,260..10T,125T

W(ABS)

 1
82111-25421

KDY230,250,260..10T,125T

 1
82111-25431

KDY230,250,260..10T,125T

W(ABS)

 1
82111-25432

KDY230,250,260..10T,125T

W(ABS)

 1
82111-25433

KDY230,250,260..10T,125T

W(ABS)

 1
82111-25423

KDY230,250,260..10T,125T

 1
82111-25422

KDY230,250,260..10T,125T

 1
82121 - WIRE, ENGINE
82121-25500

KDY220,230,250,260

 1
82121-25501

KDY220,230,250,260

 1
82122 - WIRE, ENGINE, NO.2
82122-25250

KDY230,250,260..10T,125T

 1
82125 - WIRE, TRANSMISSION
82125-25070

LY235;KDY221,23#,25#,26#,LY230..WT

 1
82666B - HOLDER, CONNECTOR NO.3
82666-25020

KDY22#,23#,25#,26#,LY220,230

 1
82666C - HOLDER, CONNECTOR NO.4
82666-25030

KDY221,231..GEN;KDY220,230,250,260,LY22#,23#

 1
82666D - HOLDER, CONNECTOR NO.5
82666-25040

KDY230,250,260..10T,125T

 1
82666E - HOLDER, CONNECTOR NO.6
82666-25050

KDY230,250,260..10T,125T

 1
82673 - BRACKET, JUNCTION BLOCK
82673-25020

KDY220,230,250,260

 1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050

KDY22#,23#,25#,26#,LY22#,23#

 1
Common parts
82715-25290
82715-25291
90119-06915
90119-08375
90119-08827
90179-04030
90179-06074
90179-08150
90189-04024
91551-80820
91651-60614
91651-60816
91651-B0814
91651-B0822
91651-B0825
94130-61200
94151-80600
Linked diagrams
8401

ILLUST NO. 3 OF 5(0108- )KDY221,23#,25#,26#..10T,125T

Click highlighted areas on diagram

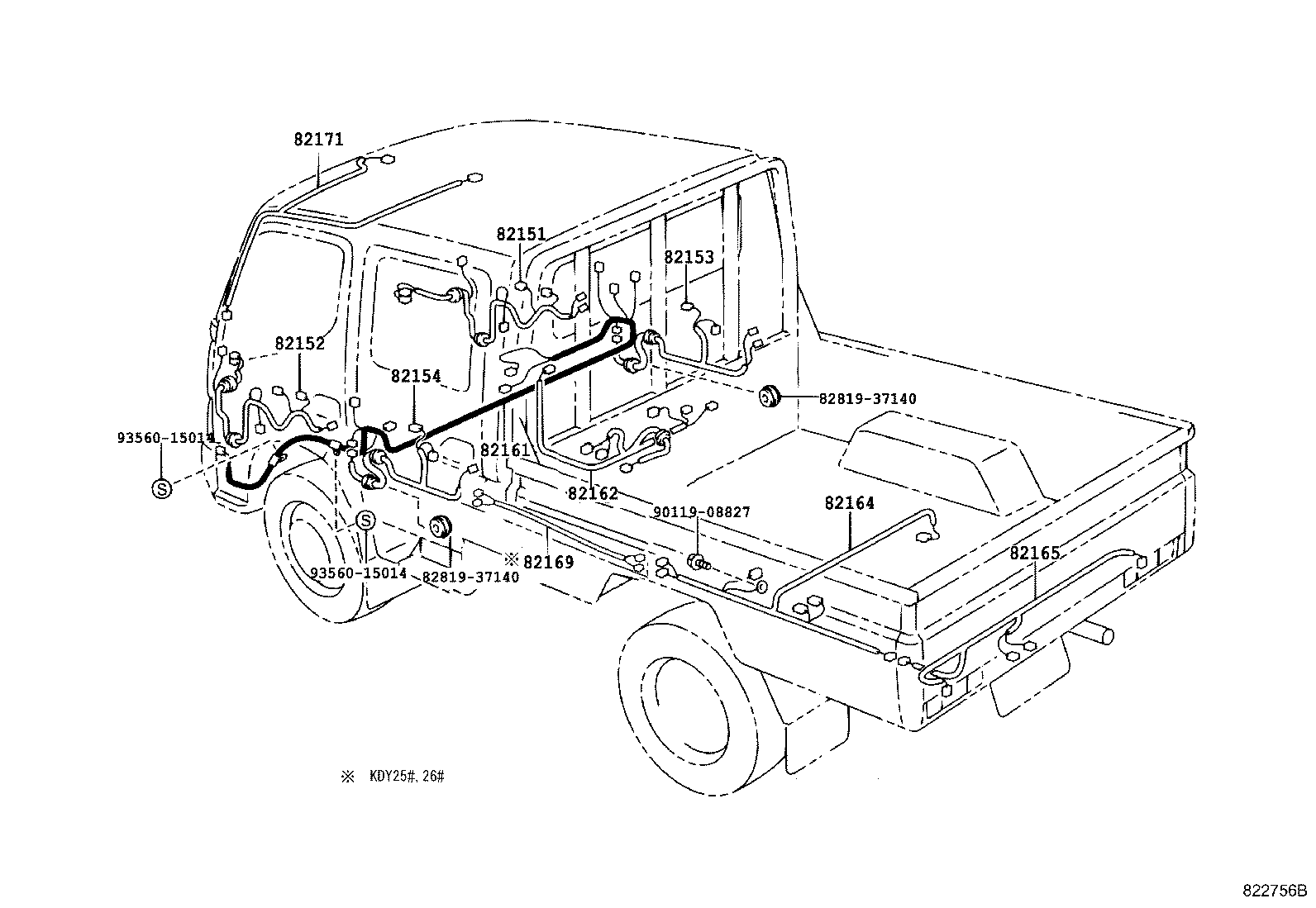

BODY

diagram 82151 82152 82153 82154 82161 82162 82164 82165 82169 82171 8281937140 8281937140 9011908827 9356015014 9356015014
Part # Description Qty Price
82151 - WIRE, FRONT DOOR, RH
82151-25220

KDY220,230,250,260..LHD

W(POWER DOOR LOCK & SIDE TURN SIGNAL LAMP)

 1
82151-25230

KDY220,230,250,260..LHD

W(POWER DOOR LOCK & POWER WINDOW & SIDE TURN SIGNAL LAMP)

 1
82151-25130

KDY22#,23#,25#,LY22#,23#

 1
82152 - WIRE, FRONT DOOR, LH
82152-25090

KDY22#,23#,25#,LY22#,23#

 1
82164 - WIRE, FRAME
82164-2E030

LY225;KDY220,250,260,LY220..IV3

 1
82164-2E050

KDY250,260

W(ABS)

 1
82165 - WIRE, FRAME, NO.2
82165-25080

KDY221..RHD..IV3;KDY220,230,250,260,LY220,230..(ARL,EUR)..IV3

 1
82171 - WIRE, ROOF, NO.1
82171-25080

KDY230,250,260..10T,125T

 1
82171-25170

KDY230..ST..IV3;KDY250,260..125T

W(HIGH ROOF)

 1
Common parts
82819-37140
90119-08827
93560-15014
