KDY260L-PBMEYW3 (2001)

Toyota Dyna

Production Aug 2001 - Sep 2006
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0108- )KDY23#,25#,26#..10T,125T

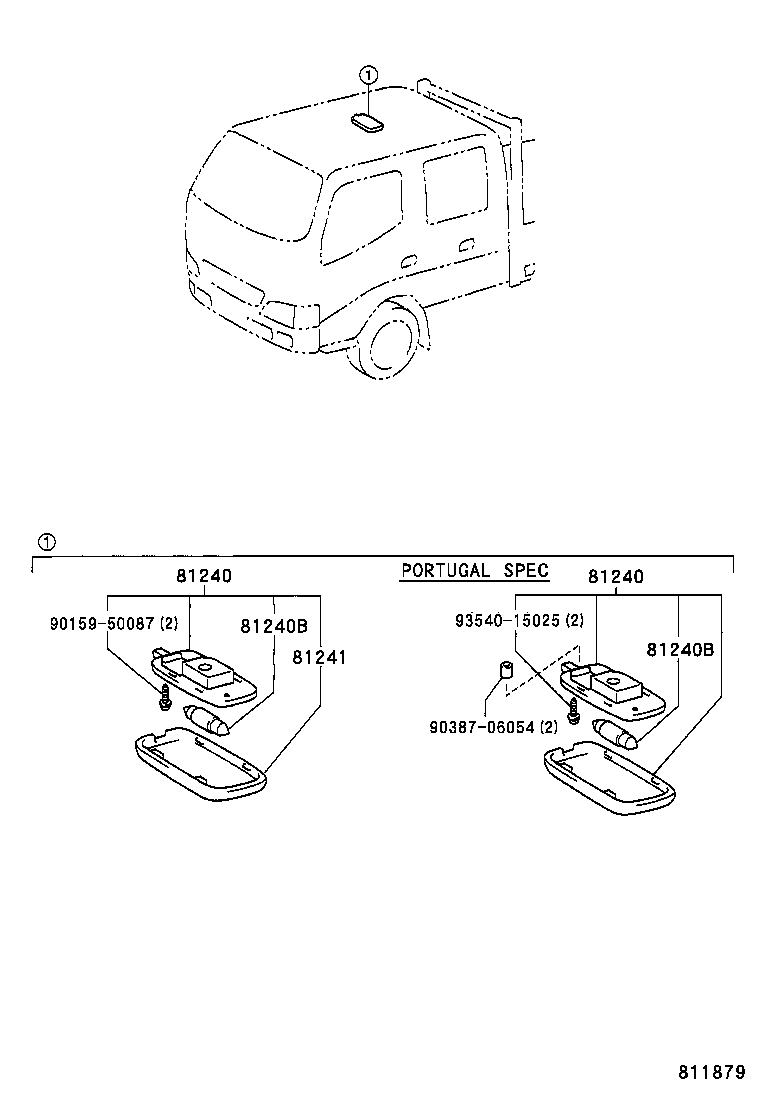

Click highlighted areas on diagram

diagram 81240 81240 81240B 81240B 81241 9015950087 9038706054 9354015025
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-95704B2

KDY230,250,260..10T,125T

MD.CHARCOAL,TRIM1#

 1
81240 - LAMP ASSY, ROOM, NO.1
81240-95704B2

KDY230,250,260..10T,125T

MD.CHARCOAL,TRIM1#

 1
Common parts
90159-50087
90387-06054
93540-15025
