KDY260L-PBMEYW3 (2001)

Toyota Dyna

Production Aug 2001 - Sep 2006
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0107-1610)EUR

Click highlighted areas on diagram

W(AUTO LEVELING)

diagram 81110B 81131A 81144 81171A 81193A 81193A 81194A 81194A 85661 85662 9015960411 9046710005C0
Part # Description Qty Price
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13058

LY225,235..LHD;KDY22#,23#,25#,26#

12V 60/55W,HALOGEN

 2
81144 - COVER, HEADLAMP, NO.1
81139-37110

LY235..LHD;KDY22#,23#,25#,26#..EUR

 2
81193A - PROTECTOR, HEADLAMP, RH
81193-37011

KDY220,230,250,260,LY22#,23#

 1
81193-37030

KDY220,230,250,260

W(HEADLAMP LEVELING)

 1
81193A - PROTECTOR, HEADLAMP, RH
81193-37011

KDY220,230,250,260,LY22#,23#

 1
81193-37030

KDY220,230,250,260

W(HEADLAMP LEVELING)

 1
81194A - PROTECTOR, HEADLAMP, LH
81194-37012

KDY220,230,250,260,LY22#,23#

 1
81194-37030

KDY220,230,250,260

W(HEADLAMP LEVELING)

 1
81194A - PROTECTOR, HEADLAMP, LH
81194-37012

KDY220,230,250,260,LY22#,23#

 1
81194-37030

KDY220,230,250,260

W(HEADLAMP LEVELING)

 1
Common parts
90159-60411
90467-10005C0

(0107-0308) ; (0308-1610)EUR ; (0308-1610)LY225,235..LHD

Click highlighted areas on diagram

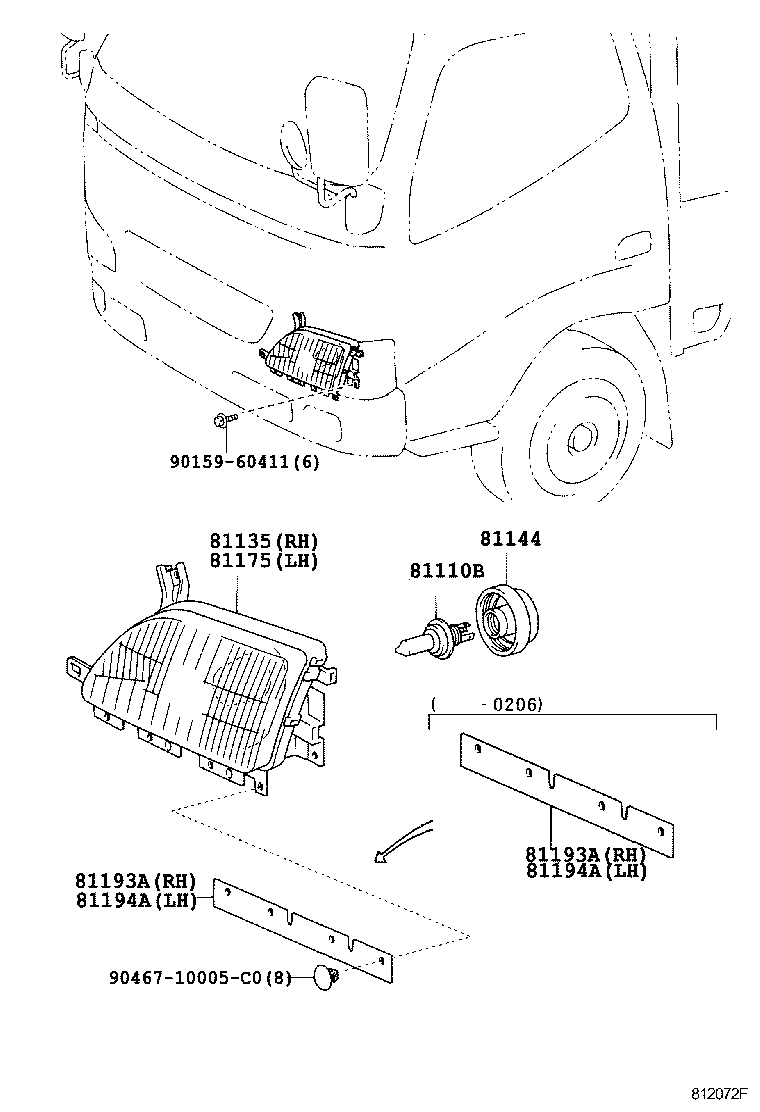

diagram 81110B 81135 81144 81175 81193A 81193A 81194A 81194A 9015960411 9046710005C0
Part # Description Qty Price
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13058

LY225,235..LHD;KDY22#,23#,25#,26#

12V 60/55W,HALOGEN

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-25180

KDY22#,23#,25#,26#,LY225,235..LHD

 1
81144 - COVER, HEADLAMP, NO.1
81139-37110

LY235..LHD;KDY22#,23#,25#,26#..EUR

 2
81175 - UNIT ASSY, HEADLAMP, LH
81170-25160

KDY22#,23#,25#,26#,LY225,235..LHD

 1
81193A - PROTECTOR, HEADLAMP, RH
81193-37011

KDY220,230,250,260,LY22#,23#

 1
81193-37030

KDY220,230,250,260

W(HEADLAMP LEVELING)

 1
81193A - PROTECTOR, HEADLAMP, RH
81193-37011

KDY220,230,250,260,LY22#,23#

 1
81193-37030

KDY220,230,250,260

W(HEADLAMP LEVELING)

 1
81194A - PROTECTOR, HEADLAMP, LH
81194-37012

KDY220,230,250,260,LY22#,23#

 1
81194-37030

KDY220,230,250,260

W(HEADLAMP LEVELING)

 1
81194A - PROTECTOR, HEADLAMP, LH
81194-37012

KDY220,230,250,260,LY22#,23#

 1
81194-37030

KDY220,230,250,260

W(HEADLAMP LEVELING)

 1
Common parts
90159-60411
90467-10005C0
