KDY260L-PBMEYW3 (2001)

Toyota Dyna

Production Aug 2001 - Sep 2006
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

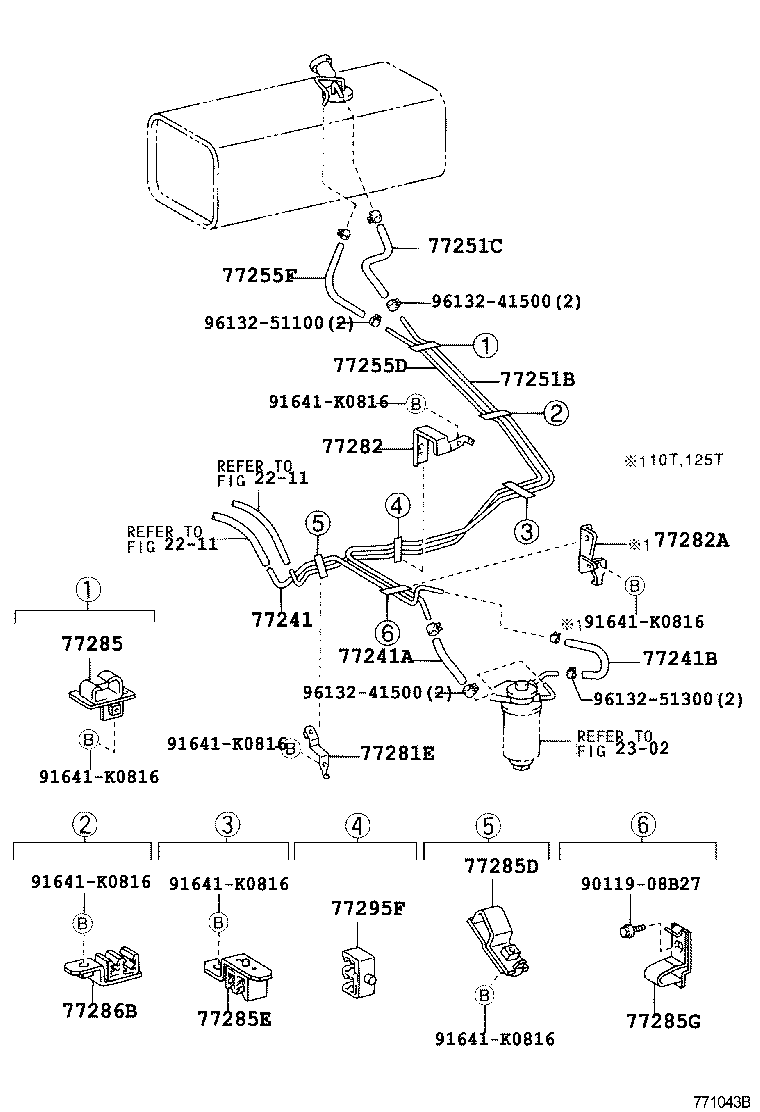

ILLUST NO. 2 OF 2(0108- )KDY220,230,250,260

Click highlighted areas on diagram

FUEL TUBE

diagram 2211 2211 2302 77241 77241A 77241B 77251B 77251C 77255D 77255F 77281E 77282 77282A 77285 77285D 77285E 77285G 77286B 77295F 9011908B27 91641K0816 91641K0816 91641K0816 91641K0816 91641K0816 91641K0816 91641K0816 9613241500 9613241500 9613251100 9613251300
Part # Description Qty Price
77241 - TUBE, FUEL MAIN, NO.1
77251-25390

KDY220,230,250,260

 1
77281E - BRACKET, FUEL MAIN TUBE, NO.1
77281-25070

KDY22#,23#,25#,26#,LY220,230

 1
77282 - BRACKET, FUEL MAIN TUBE, NO.2
77281-25080

KDY22#,23#,25#,26#,LY220,230

 1
77285 - BRACKET, FUEL TUBE
77281-25020

KDY22#,23#,25#,26#

 1
77285G - CLAMP, FUEL TUBE, NO.1
77285-25030

KDY22#,23#,25#,26#,LY220,230

 1
77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2
77286-25010

KDY22#,23#,25#,26#

 1
77295F - GROMMET, FUEL HOSE
77295-25050

KDY22#,23#,25#,26#

 1
Common parts
90119-08B27
91641-K0816
96132-41500
96132-51100
96132-51300
Linked diagrams
2211
2302
