KDY260L-PBMEYW3 (2001)

Toyota Dyna

Production Aug 2001 - Sep 2006
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0108- )KDY221,23#,25#,26#..10T,125T

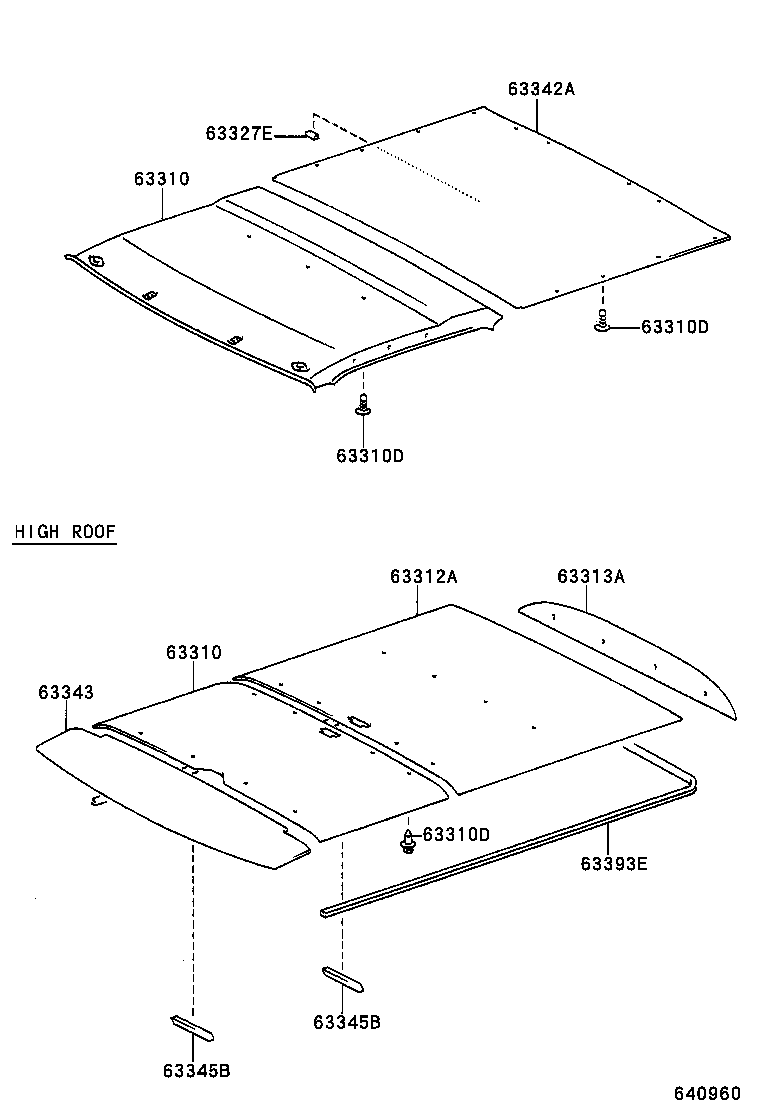

Click highlighted areas on diagram

diagram 63310 63310 63310D 63310D 63310D 63312A 63313A 63327E 63342A 63343 63345B 63345B 63393E
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63311-25080B0

KDY230,250,260..10T,125T

MEDIUM CHARCOAL,TRIM1#

 1
63311-25081

KDY230,250,260..10T,125T

 1
63310 - HEADLINING ASSY, ROOF
63311-25080B0

KDY230,250,260..10T,125T

MEDIUM CHARCOAL,TRIM1#

 1
63311-25081

KDY230,250,260..10T,125T

 1
