KDY260L-PBMEYW3 (2001)

Toyota Dyna

Production Aug 2001 - Sep 2006
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0108- )KDY221,23#,25#,26#..10T,125T

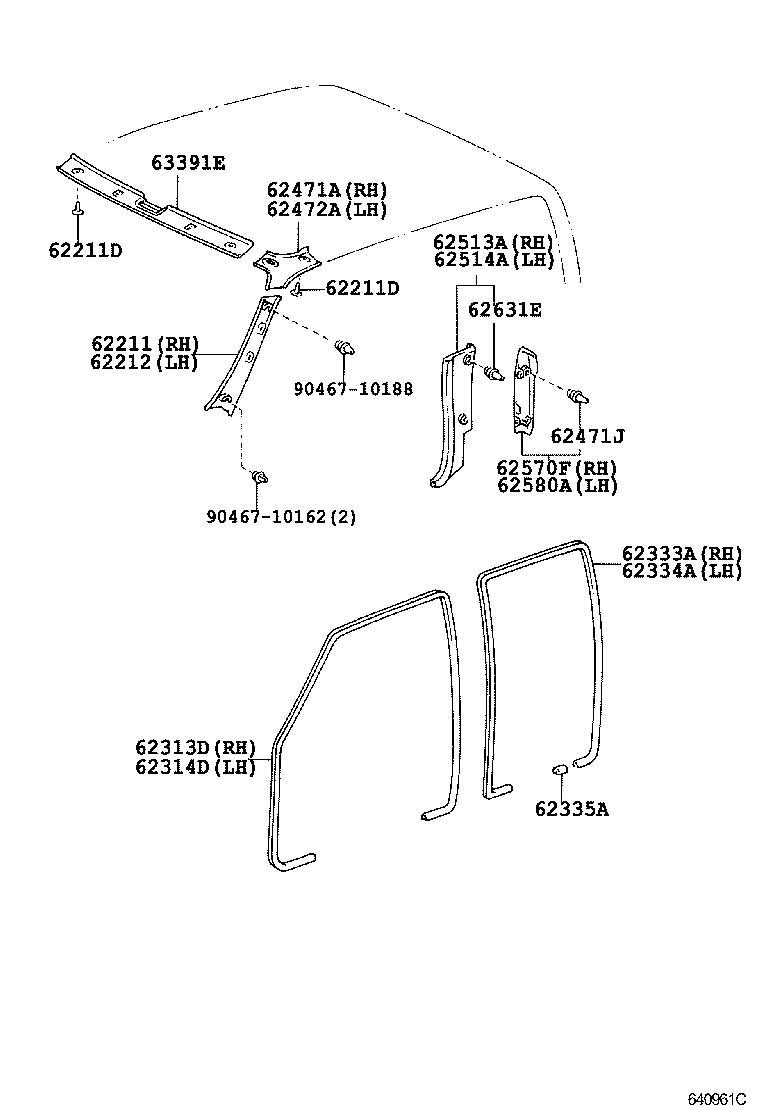

Click highlighted areas on diagram

diagram 62211 62211D 62211D 62212 62313D 62314D 62333A 62334A 62335A 62471A 62471J 62472A 62513A 62514A 62570F 62580A 62631E 63391E 9046710162 9046710188
Part # Description Qty Price
62211 - GARNISH, FRONT PILLAR, RH
62211-37010B0

KDY220,230,250,260,LY22#,23#

MD.CHARCOAL,TRIM1#

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-37010B0

KDY220,230,250,260,LY22#,23#

MD.CHARCOAL,TRIM1#

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-37040B0

KDY220,230,250,260,LY22#,23#

MD.CHARCOAL,TRIM1#

 1
62313-37040B0

KDY220,230,250,260,LY22#,23#

MD.CHARCOAL,TRIM1#

 1
62313-37041B0

KDY220,230,250,260,LY22#,23#

MD.CHARCOAL,TRIM1#

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62313-37040B0

KDY220,230,250,260,LY22#,23#

MD.CHARCOAL,TRIM1#

 1
62313-37040B0

KDY220,230,250,260,LY22#,23#

MD.CHARCOAL,TRIM1#

 1
62313-37041B0

KDY220,230,250,260,LY22#,23#

MD.CHARCOAL,TRIM1#

 1
62333A - TRIM, REAR DOOR OPENING, RH
62333-37020B0

KDY230,250,260..10T,125T

MD.CHARCOAL,TRIM1#

 1
62333-37020B0

KDY230,250,260..10T,125T

MD.CHARCOAL,TRIM1#

 1
62334A - TRIM, REAR DOOR OPENING, LH
62333-37020B0

KDY230,250,260..10T,125T

MD.CHARCOAL,TRIM1#

 1
62333-37020B0

KDY230,250,260..10T,125T

MD.CHARCOAL,TRIM1#

 1
62471J - CLIP (FOR ROOF SIDE GARNISH)
67771-12050

KDY230,250,260..10T,125T

 4
62513A - PANEL, QUARTER TRIM, LOWER RH
62513-37010B0

KDY22#,23#,25#,26#,LY22#,23#..ARL,EUR,GEN

W(*ELR),MD.CHARCOAL,TRIM1#

 1
62514A - PANEL, QUARTER TRIM, LOWER LH
62514-37010B0

KDY22#,23#,25#,26#,LY22#,23#..ARL,EUR,GEN

W(*ELR),MD.CHARCOAL,TRIM1#

 1
62631E - RETAINER, QUATER TRIM
67771-12050

KDY220,230,250,260,LY22#,23#

 4
90467-10161

KDY22#,23#,25#,26#,LY22#,23#

 4
63391E - TRIM, ROOF HEADLINING, FRONT
63391-25030B0

KDY230..ST..IV3;KDY250,260..125T

MD.CHARCOAL,TRIM1#

 1
63391-25031B0

KDY230..ST..IV3;KDY250,260..125T

MD.CHARCOAL,TRIM1#

 1
Common parts
90467-10162
90467-10188
