KDY260L-PBMEYW3 (2001)

Toyota Dyna

Production Aug 2001 - Sep 2006
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0108- )KDY23#,25#,26#..10T,125T

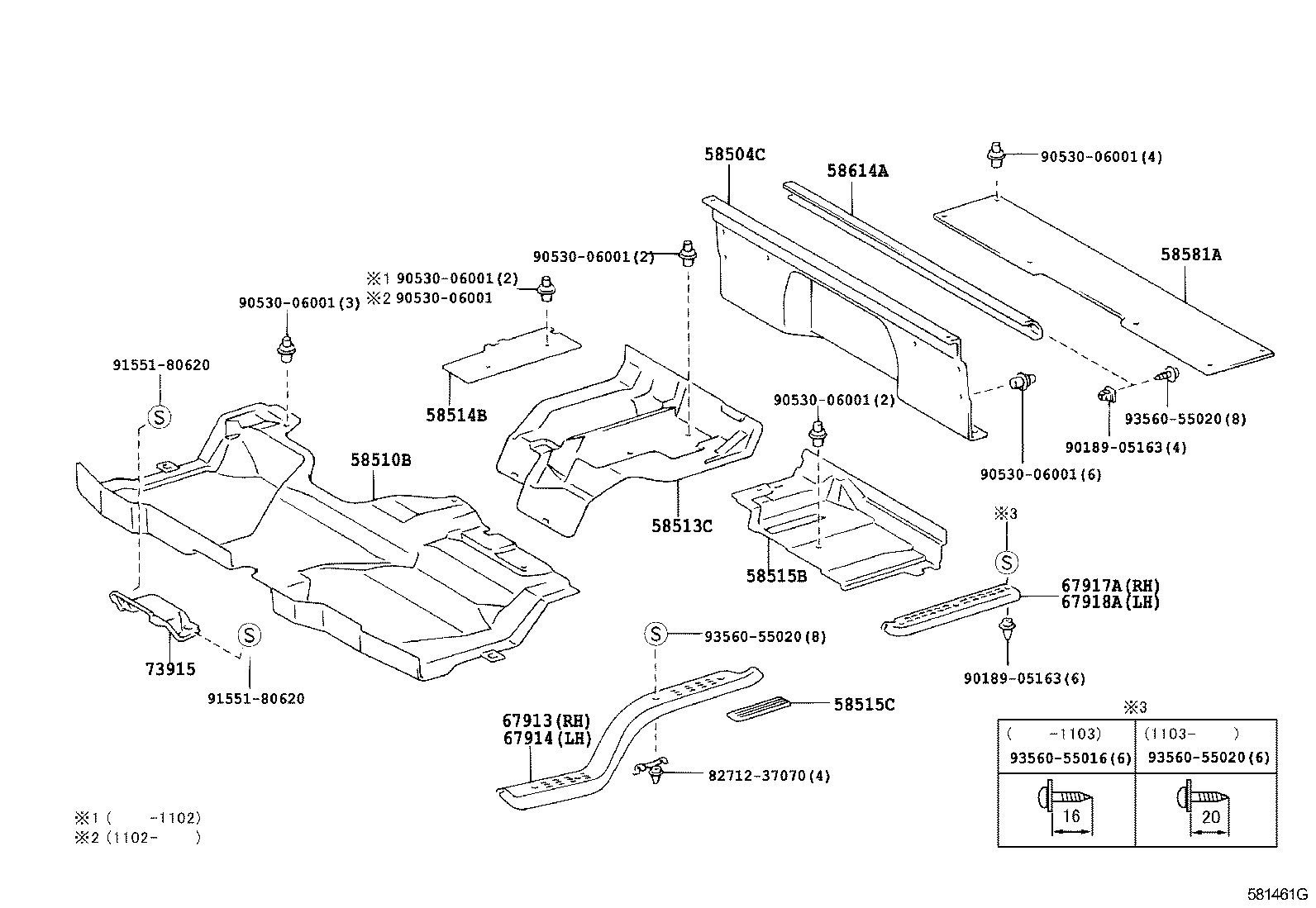

Click highlighted areas on diagram

diagram 58504C 58510B 58513C 58514B 58515B 58515C 58581A 58614A 67913 67914 67917A 67918A 73915 8271237070 9018905163 9018905163 9053006001 9053006001 9053006001 9053006001 9053006001 9053006001 9053006001 9155180620 9155180620 9356055016 9356055020 9356055020 9356055020
Part # Description Qty Price
58504C - MAT SUB-ASSY, HEADER
58504-25020B0

KDY230,250,260..10T,125T

DARK CHARCOAL,TRIM1#

 1
58510B - MAT, FRONT FLOOR, FRONT
58510-25450B0

KDY220,230,250,260..LHD

DARK CHARCOAL,TRIM1#

 1
58510-25470B0

KDY220,250,260..LHD..IV3;KDY230..LHD..(10T,15T)..IV3

PORTUGAL CKD & W(*80),DARK CHARCOAL,TRIM1#

 1
58510-25340B0

KDY220,230,250,260..LHD

W(*80),DARK CHARCOAL,TRIM1#

 1
58510-25470B0

KDY220,250,260..LHD..IV3;KDY230..LHD..(10T,15T)..IV3

PORTUGAL CKD & W(*80),DARK CHARCOAL,TRIM1#

 1
58513C - MAT, FLOOR, FRONT CENTER
58513-25060B0

KDY230,250,260..10T,125T

DARK CHARCOAL,TRIM1#

 1
58514B - MAT, FLOOR, REAR RH
58514-25080B0

KDY230,250,260..10T,125T

DARK CHARCOAL,TRIM1#

 1
58515B - MAT, FLOOR, REAR LH
58515-25060B0

KDY230,250,260..10T,125T

DARK CHARCOAL,TRIM1#

 1
58515C - MAT, FRONT FLOOR, REAR NO.1
58515-37080B1

KDY221,231,251..LHD;KDY220,230,250,26#,LY22#,23#..ARL,EUR,GEN

MD.CHARCOAL,TRIM1#

 1
58581A - MAT, REAR FLOOR
58581-25011B0

KDY230,250,260..10T,125T

DARK CHARCOAL,TRIM1#

 1
58581-25010B0

KDY230,250,260..10T,125T

DARK CHARCOAL,TRIM1#

 1
58614A - PLATE, MAT SET, NO.4
58614-37010B0

KDY230,250,260..10T,125T

DK.CHARCOAL,TRIM1#

 1
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-37010B0

KDY22#,23#,25#,26#,LY22#,23#

MD.CHARCOAL,TRIM1#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-37010B0

KDY22#,23#,25#,26#,LY22#,23#

MD.CHARCOAL,TRIM1#

 1
Common parts
82712-37070
90189-05163
90530-06001
91551-80620
93560-55016
93560-55020
