KDY260L-PBMEYW3 (2001)

Toyota Dyna

Production Aug 2001 - Sep 2006
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0108- )KDY23#,25#,26#..10T,125T

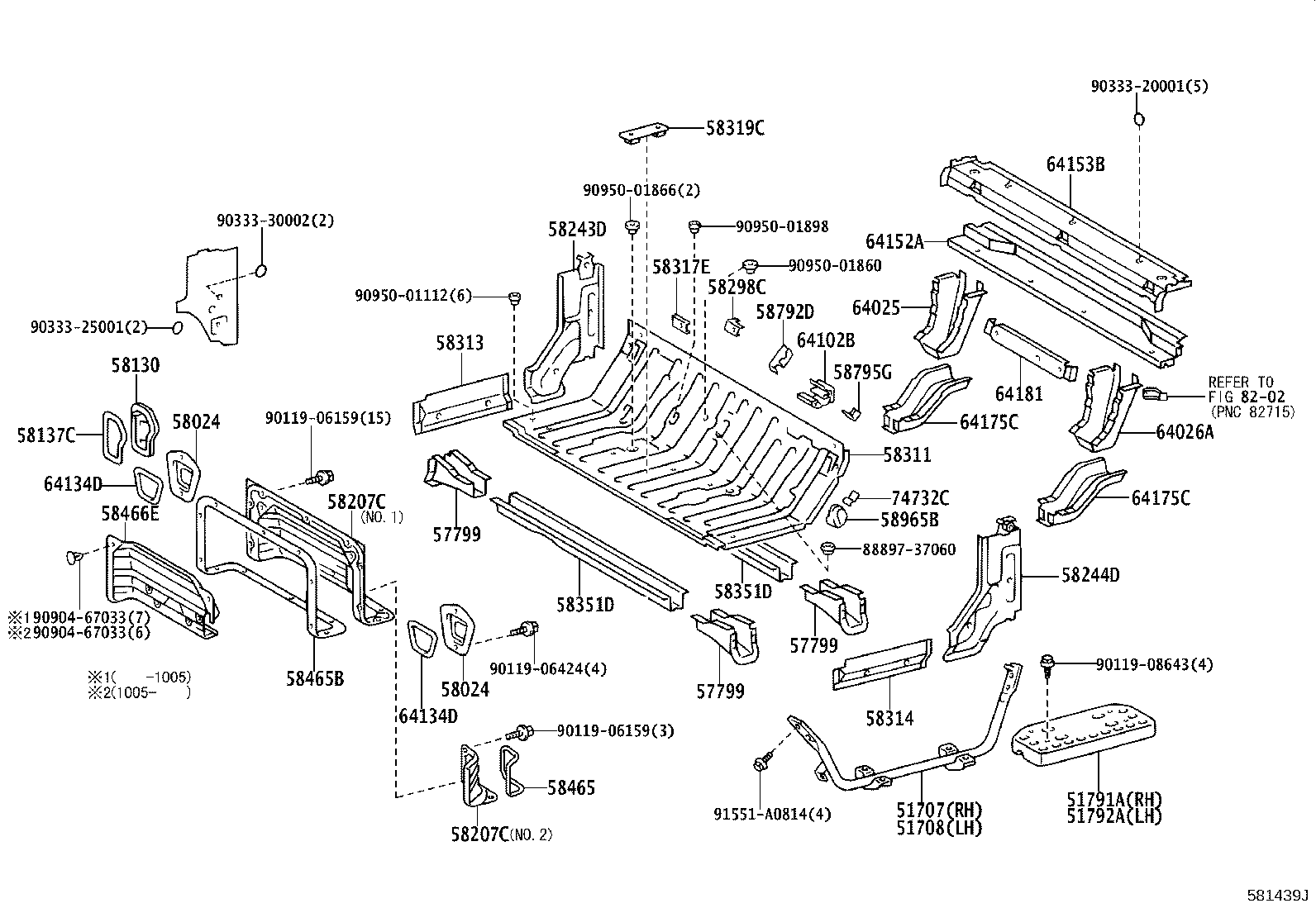

Click highlighted areas on diagram

diagram 51707 51708 51791A 51792A 57799 57799 57799 58024 58024 58130 58137C 58207C 58207C 58243D 58244D 58298C 58311 58313 58314 58317E 58319C 58351D 58351D 58465 58465B 58466E 58792D 58795G 58965B 64025 64026A 64102B 64134D 64134D 64152A 64153B 64175C 64175C 64181 74732C 8202 8889737060 9011906159 9011906159 9011906424 9011908643 9033320001 9033325001 9033330002 9090467033 9090467033 9095001112 9095001860 9095001866 9095001898 91551A0814
Part # Description Qty Price
58351D - REINFORCEMENT, REAR FLOOR PANEL
58351-37010

KDY230,250,260..10T,125T

 1
58351D - REINFORCEMENT, REAR FLOOR PANEL
58351-37010

KDY230,250,260..10T,125T

 1
58465B - PACKING, TRANSMISSION SERVICE HOLE COVER
58465-37080

KDY230,250,260..10T,125T

 1
64153B - FRAME, BACK, REAR
64153-37030

KDY230,250,260..10T,125T

 1
Common parts
88897-37060
90119-06159
90119-06424
90119-08643
90333-20001
90333-25001
90333-30002
90904-67033
90950-01112
90950-01860
90950-01866
90950-01898
91551-A0814
Linked diagrams
8202
