KDY260L-PBMEYW3 (2001)

Toyota Dyna

Production Aug 2001 - Sep 2006
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0108- )KDY22#,23#,25#,26#

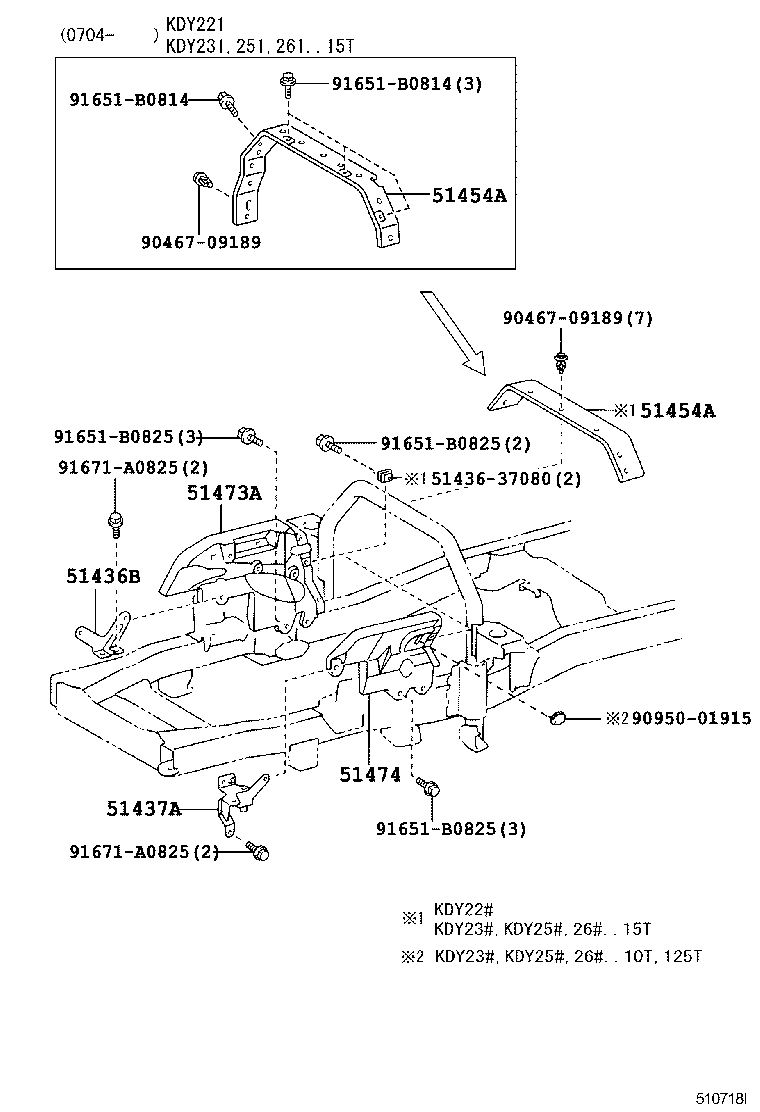

Click highlighted areas on diagram

diagram 5143637080 51436B 51437A 51454A 51454A 51473A 51474 9046709189 9046709189 9095001915 91651B0814 91651B0814 91651B0825 91651B0825 91651B0825 91671A0825 91671A0825
Part # Description Qty Price
51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH
51436-25030

KDY22#,23#,25#,26#,LY220,230

 1
51437A - BRACKET, ENGINE SIDE COVER, NO.1 LH
51047-25010

KDY22#,23#,25#,26#,LY220,230

 1
51473A - COVER SUB-ASSY, ENGINE SIDE, RH
51473-25060

KDY22#,23#,25#,26#,LY230

 1
51473-25050

KDY220,230,250,260,LY220,230

 1
Common parts
51436-37080
90467-09189
90950-01915
91651-B0814
91651-B0825
91671-A0825
