KDY260L-PBMEYW3 (2001)

Toyota Dyna

Production Aug 2001 - Sep 2006
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0108- )KDY25#,26#

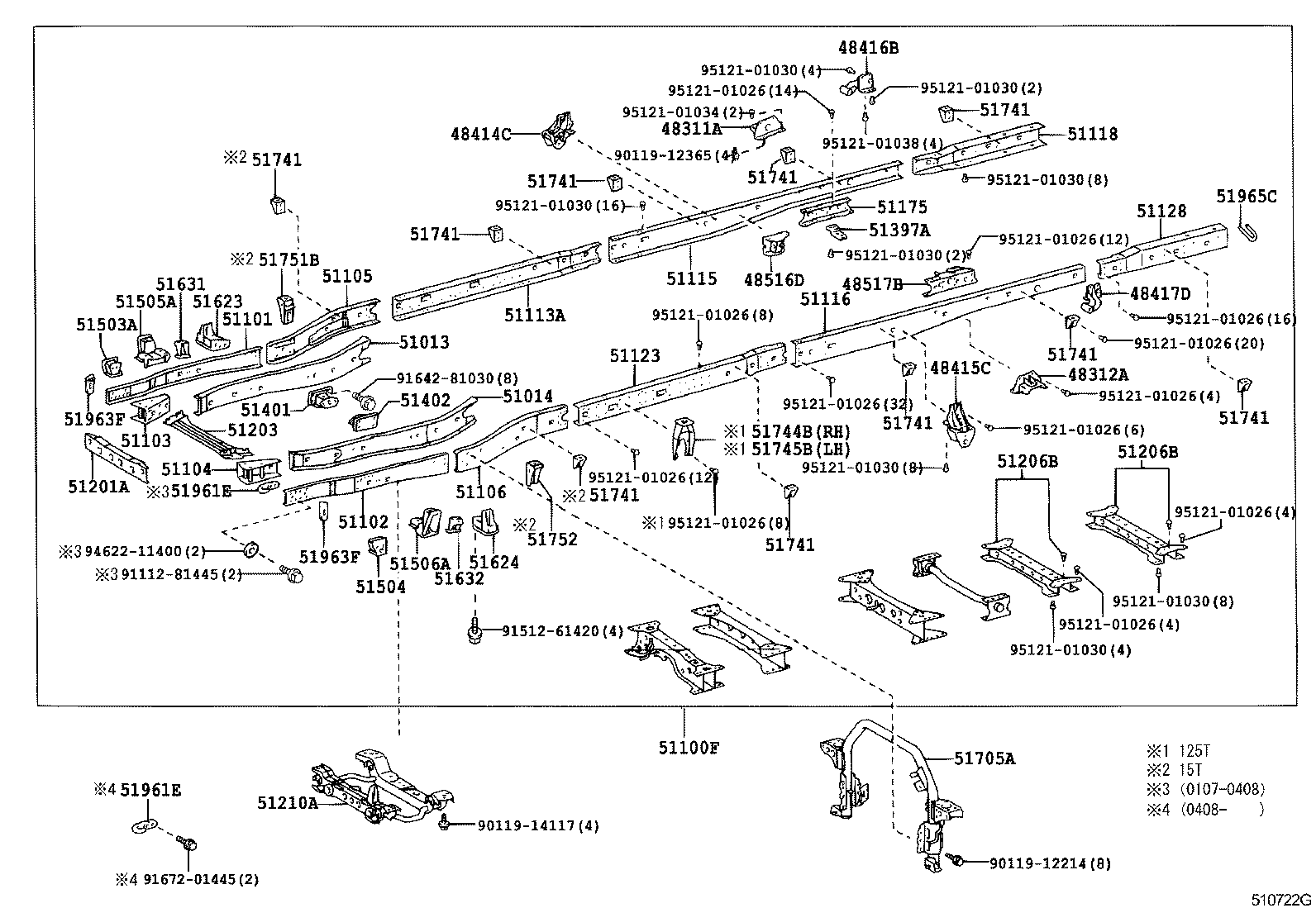

Click highlighted areas on diagram

diagram 48311A 48312A 48414C 48415C 48416B 48417D 48516D 48517B 51013 51014 51100F 51101 51102 51103 51104 51105 51106 51113A 51115 51116 51118 51123 51128 51175 51201A 51203 51206B 51206B 51210A 51397A 51401 51402 51503A 51504 51505A 51506A 51623 51624 51631 51632 51705A 51741 51741 51741 51741 51741 51741 51741 51741 51741 51741 51744B 51745B 51751B 51752 51961E 51961E 51963F 51963F 51965C 9011912214 9011912365 9011914117 9111281445 9151261420 9164281030 9167201445 9462211400 9512101026 9512101026 9512101026 9512101026 9512101026 9512101026 9512101026 9512101026 9512101026 9512101026 9512101026 9512101026 9512101030 9512101030 9512101030 9512101030 9512101030 9512101030 9512101030 9512101030 9512101034 9512101038
Part # Description Qty Price
48311A - BRACKET, HOLLOW SPRING, RH
48311-25060

LY225,235..ST;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA

 1
48312A - BRACKET, HOLLOW SPRING, LH
48311-25060

LY225,235..ST;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA

 1
48414C - BRACKET, SPRING, NO.3 RH
48414-25090

LY225,235..ST;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA

 1
48415C - BRACKET, SPRING, NO.3 LH
48414-25090

LY225,235..ST;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA

 1
48416B - BRACKET, SPRING, NO.4 RH
48416-25110

LY225,235..ST;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA

 1
48417D - BRACKET, SPRING, NO.4 LH
48417-25090

LY225,235..ST;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA

 1
48516D - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH
48505-25070

KDY22#,23#,25#,26#,LY22#,23#

 1
48517B - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH
51016-25050

KDY22#,23#,25#,26#,LY22#,23#

 1
51013 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT RH
51013-25020

KDY221,231,25#,26#;KDY220,230,LY220,230..RHD

 1
51014 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT LH
51014-25060

KDY221,231,25#,26#;KDY220,230,LY220,230..RHD

 1
51100F - FRAME SUB-ASSY
51001-2E290

KDY260..125T

 1
51103 - REINFORCEMENT SUB-ASSY, INNER CHANNEL, FRONT RH
51103-25010

KDY221,231,25#,26#;KDY220,230,LY220,230..RHD

 1
51104 - REINFORCEMENT SUB-ASSY, INNER CHANNEL, FRONT LH
51103-25010

KDY22#,23#,25#,26#,LY220,230

 1
51105 - RAIL SUB-ASSY, CENTER FRAME, RH
51105-25010

KDY221,231,25#,26#;KDY220,230,LY220,230..RHD

 1
51106 - RAIL SUB-ASSY, CENTER FRAME, LH
51106-25010

KDY221,231,25#,26#;KDY220,230,LY220,230..RHD

 1
51175 - REINFORCEMENT, SIDE RAIL, NO.3 RH
51175-25010

KDY22#,23#,25#,26#,LY22#,23#

 1
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51211-25100

KDY22#,23#,25#,26#,LY220,230

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-25150

KDY22#,23#,25#,26#,LY220,230

 1
51397A - BRACKET, EXHAUST PIPE CLAMP, NO.3
51397-25030

KDY22#,23#,25#,26#,LY22#,23#

 1
51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51401-25190

KDY22#,23#,25#,26#,LY220,230

 1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51402-25090

KDY22#,23#,25#,26#,LY220,230

 1
51503A - BRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, RH
51503-25010

KDY221,231,25#,26#;KDY220,230,LY220,230..RHD

 1
51504 - BRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, LH
51504-25010

KDY221,231,25#,26#;KDY220,230,LY220,230..RHD

 1
51505A - SUPPORT SUB-ASSY, UPPER CONTROL ARM
51505-25020

KDY221,231,25#,26#;KDY220,230,LY220,230..RHD

 1
51506A - SUPPORT SUB-ASSY, UPPER CONTROL ARM, LH
51506-25020

KDY221,231,25#,26#;KDY220,230,LY220,230..RHD

 1
51623 - BRACKET, FRONT SPRING BOUND STOPPER, RH
51603-25010

KDY221,231,25#,26#;KDY220,230,LY220,230..RHD

 1
51624 - BRACKET, FRONT SPRING BOUND STOPPER, LH
51604-25010

KDY221,231,25#,26#;KDY220,230,LY220,230..RHD

 1
51631 - STOPPER, FRONT SUSPENSION REBOUND, RH
51631-25010

KDY22#,23#,25#,26#,LY220,230

 1
51632 - STOPPER, FRONT SUSPENSION REBOUND, LH
51631-25010

KDY22#,23#,25#,26#,LY220,230

 1
51961E - HOOK, FRONT
51961-25040

KDY220,230,250,260,LY220,230

 1
51961-25041

KDY22#,23#,25#,26#,LY220,230

 1
51961E - HOOK, FRONT
51961-25040

KDY220,230,250,260,LY220,230

 1
51961-25041

KDY22#,23#,25#,26#,LY220,230

 1
51963F - HOOK, TRANSPORT
51963-25010

KDY221,231,25#,26#;KDY220,230,LY220,230..RHD

 2
51963F - HOOK, TRANSPORT
51963-25010

KDY221,231,25#,26#;KDY220,230,LY220,230..RHD

 2
51965C - HOOK, REAR
51965-26031

LY235..WT;KDY220,230,25#,26#,LY220,230..ARL,EUR

 1
Common parts
90119-12214
90119-12365
90119-14117
91112-81445
91512-61420
91642-81030
91672-01445
94622-11400
95121-01026
95121-01030
95121-01034
95121-01038
