KDY260L-PBMEYW3 (2001)

Toyota Dyna

Production Aug 2001 - Sep 2006
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

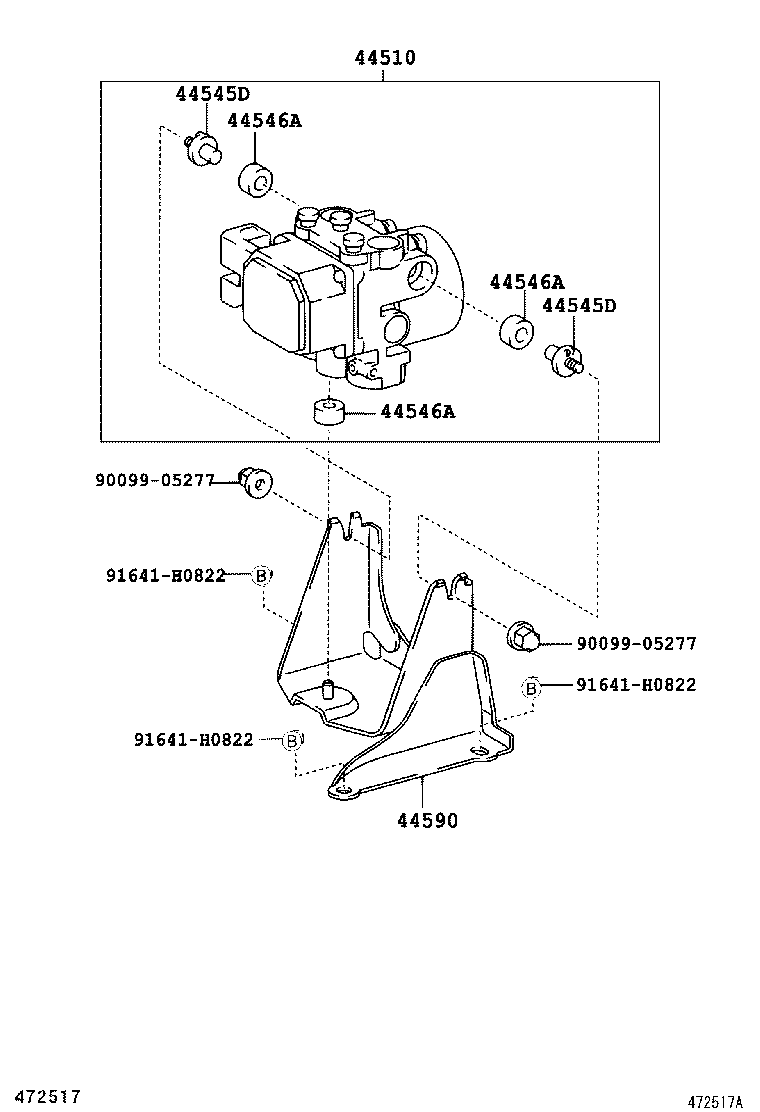

ILLUST NO. 3 OF 4(0108- )KDY22#,23#,25#,26# ; (1610- )LY230

Click highlighted areas on diagram

W(ABS)

diagram 44510 44545D 44545D 44546A 44546A 44546A 44590 9009905277 9009905277 91641H0822 91641H0822 91641H0822
Part # Description Qty Price
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42090

KDY22#,23#,25#,26#..EUR

 2
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42090

KDY22#,23#,25#,26#..EUR

 2
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

KDY22#,23#,25#,26#..EUR

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

KDY22#,23#,25#,26#..EUR

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

KDY22#,23#,25#,26#..EUR

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-25010

KDY22#,23#,25#,26#..EUR

 1
Common parts
90099-05277
91641-H0822

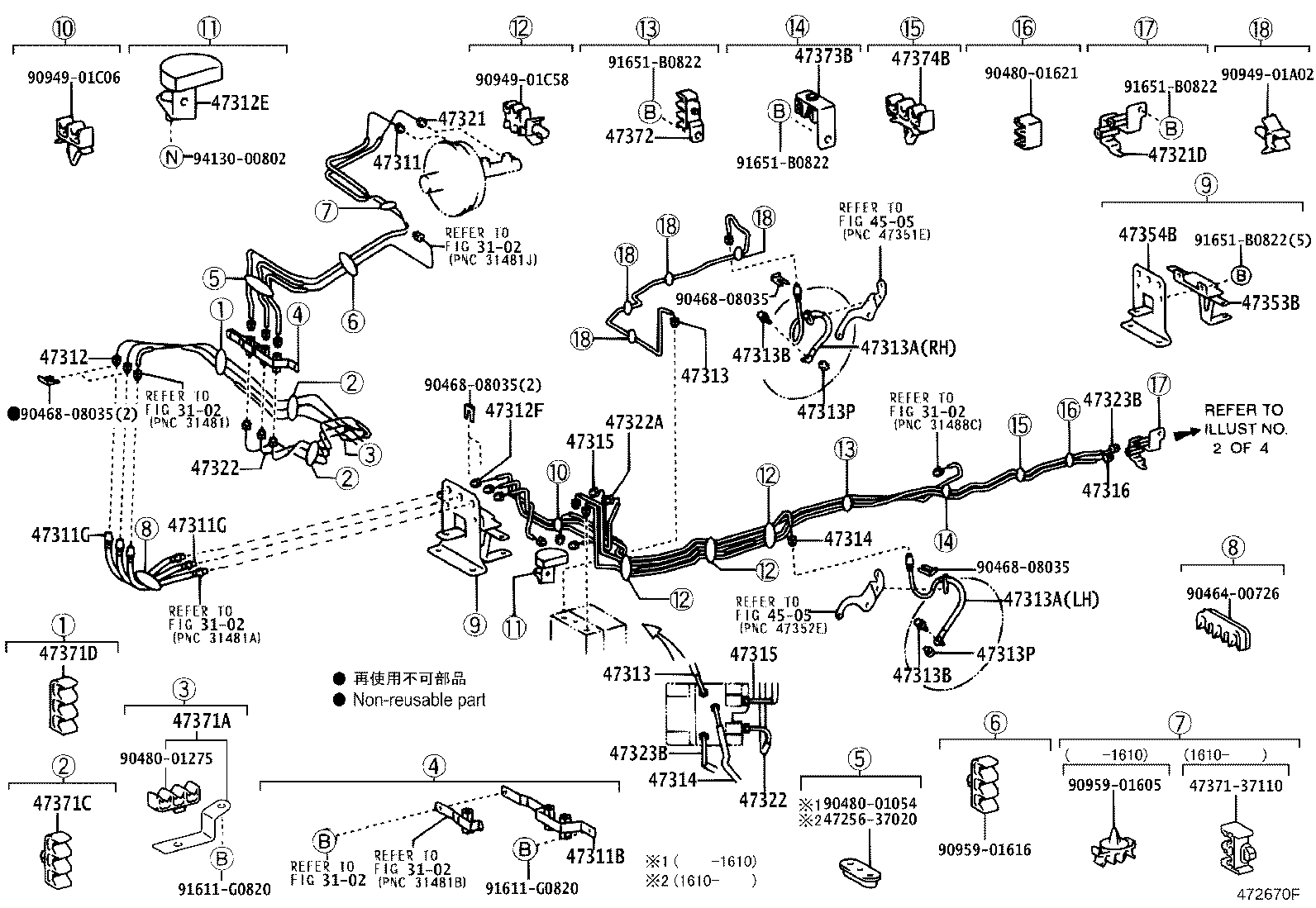

ILLUST NO. 1 OF 4(0108- )KDY22#,23#,25#,26#..LHD

Click highlighted areas on diagram

W(ABS)

diagram 3102 3102 3102 3102 3102 3102 4505 4505 4725637020 47311 47311B 47311G 47311G 47312 47312E 47312F 47313 47313 47313A 47313A 47313B 47313B 47313P 47313P 47314 47314 47315 47315 47316 47321 47321D 47322 47322 47322A 47323B 47323B 47353B 47354B 4737137110 47371A 47371C 47371D 47372 47373B 47374B 9046400726 9046808035 9046808035 9046808035 9046808035 9048001054 9048001275 9048001621 9094901A02 9094901C06 9094901C58 9095901605 9095901616 91611G0820 91611G0820 91651B0822 91651B0822 91651B0822 91651B0822 9413000802
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-25420

KDY22#,23#,25#,26#,LY225,235..LHD

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
47391-37010

KDY22#,23#,25#,26#,LY22#,23#

 1
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02C65

KDY22#,23#,25#,26#,LY22#,23#

 2
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02C65

KDY22#,23#,25#,26#,LY22#,23#

 2
47312 - TUBE, FRONT BRAKE, NO.2
47312-25210

KDY22#,23#,25#,26#,LY225,235..LHD

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90414-10052

KDY23#;KDY221..GEN;KDY22#,25#,26#,LY220,230..IV3

 1
47312F - TUBE, FRONT BRAKE, FRAME, NO.2
47312-25220

KDY22#,23#,25#,26#,LY220,230

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-25220

KDY23#;KDY221..GEN;KDY22#,25#,26#,LY220,230..IV3

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-25220

KDY23#;KDY221..GEN;KDY22#,25#,26#,LY220,230..IV3

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02C71

KDY22#,23#,25#,26#,LY220,230

LH

 1
90947-02C70

KDY22#,23#,25#,26#,LY220,230

RH

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02C71

KDY22#,23#,25#,26#,LY220,230

LH

 1
90947-02C70

KDY22#,23#,25#,26#,LY220,230

RH

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

KDY22#,23#,25#,26#,LY22#,23#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

KDY22#,23#,25#,26#,LY22#,23#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

KDY22#,23#,25#,26#,LY22#,23#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

KDY22#,23#,25#,26#,LY22#,23#

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-25250

KDY23#;KDY221..GEN;KDY22#,25#,26#,LY220,230..IV3

 1
47314 - TUBE, FRONT BRAKE, NO.4
47314-25250

KDY23#;KDY221..GEN;KDY22#,25#,26#,LY220,230..IV3

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-25140

KDY22#,23#,25#,26#..EUR

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-25140

KDY22#,23#,25#,26#..EUR

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-25320

KDY22#,23#,25#,26#,LY220,230

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-25280

KDY22#,23#,25#,26#,LY225,235..LHD

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10229

KDY22#,23#,25#,26#,LY22#,23#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-25180

KDY22#,23#,25#,26#,LY225,235..LHD

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-25180

KDY22#,23#,25#,26#,LY225,235..LHD

 1
47322A - TUBE, REAR BRAKE, FRAME NO.2
47322-25190

KDY22#,23#,25#,26#..EUR

 1
47323B - TUBE, REAR BRAKE, NO.3
47323-25190

KDY22#,23#,25#,26#..EUR

 1
47323B - TUBE, REAR BRAKE, NO.3
47323-25190

KDY22#,23#,25#,26#..EUR

 1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-25110

KDY22#,23#,25#,26#,LY220,230

 1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47354-25030

KDY22#,23#,25#,26#,LY220,230

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-37020

KDY22#,23#,25#,26#,LY225,235..LHD

 1
47371C - CLAMP, BRAKE TUBE, NO.7
90480-01275

KDY22#,23#,25#,26#,LY22#,23#

 2
47372 - CLAMP, BRAKE TUBE, NO.2
47371-25010

KDY22#,23#,25#,26#,LY220,230

 1
47373B - CLAMP, BRAKE TUBE, NO.3
47371-25030

KDY22#,23#,25#,26#,LY220,230

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90949-01C84

KDY22#,23#,25#,26#,LY220,230

 1
Common parts
47256-37020
47371-37110
90464-00726
90468-08035
90480-01054
90480-01275
90480-01621
90949-01A02
90949-01C06
90949-01C58
90959-01605
90959-01616
91611-G0820
91651-B0822
94130-00802
Linked diagrams
3102
4505

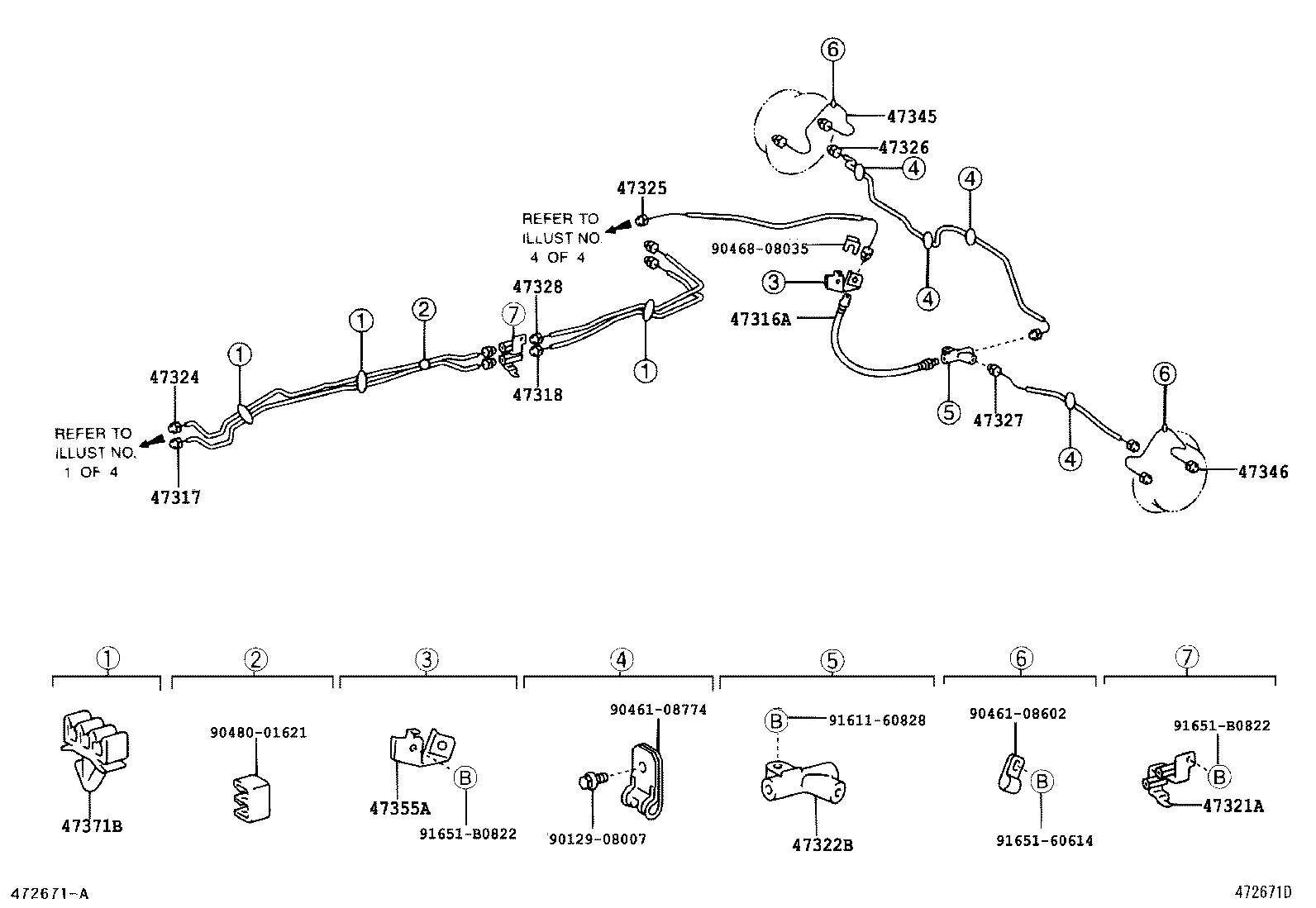

ILLUST NO. 2 OF 4(0108- )KDY25#,26#

Click highlighted areas on diagram

diagram 47316A 47317 47318 47321A 47322B 47324 47325 47326 47327 47328 47345 47346 47355A 47371B 9012908007 9046108602 9046108774 9046808035 9048001621 9161160828 9165160614 91651B0822 91651B0822
Part # Description Qty Price
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02C67

KDY23#,25#,26#,LY230..WT..IV3

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10147

LY235..ST;KDY23#,25#,26#,LY230..WT..IV3

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-25450

KDY260

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-25360

KDY22#,23#,25#,26#,LY22#,23#

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-25530

KDY23#,25#,26#,LY230..WT..IV3

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-25490

KDY23#,25#,26#,LY230..WT..IV3

 1
47345 - TUBE, WHEEL CYLINDER, REAR RH
47342-36060

KDY23#,25#,26#,LY230..WT..IV3

 1
47346 - TUBE, WHEEL CYLINDER, REAR LH
47344-36060

KDY23#,25#,26#,LY230..WT..IV3

 1
47355A - BRACKET, FLEXIBLE HOSE, NO.5
47355-25020

KDY22#,23#,25#,26#,LY22#,23#

 1
Common parts
90129-08007
90461-08602
90461-08774
90468-08035
90480-01621
91611-60828
91651-60614
91651-B0822

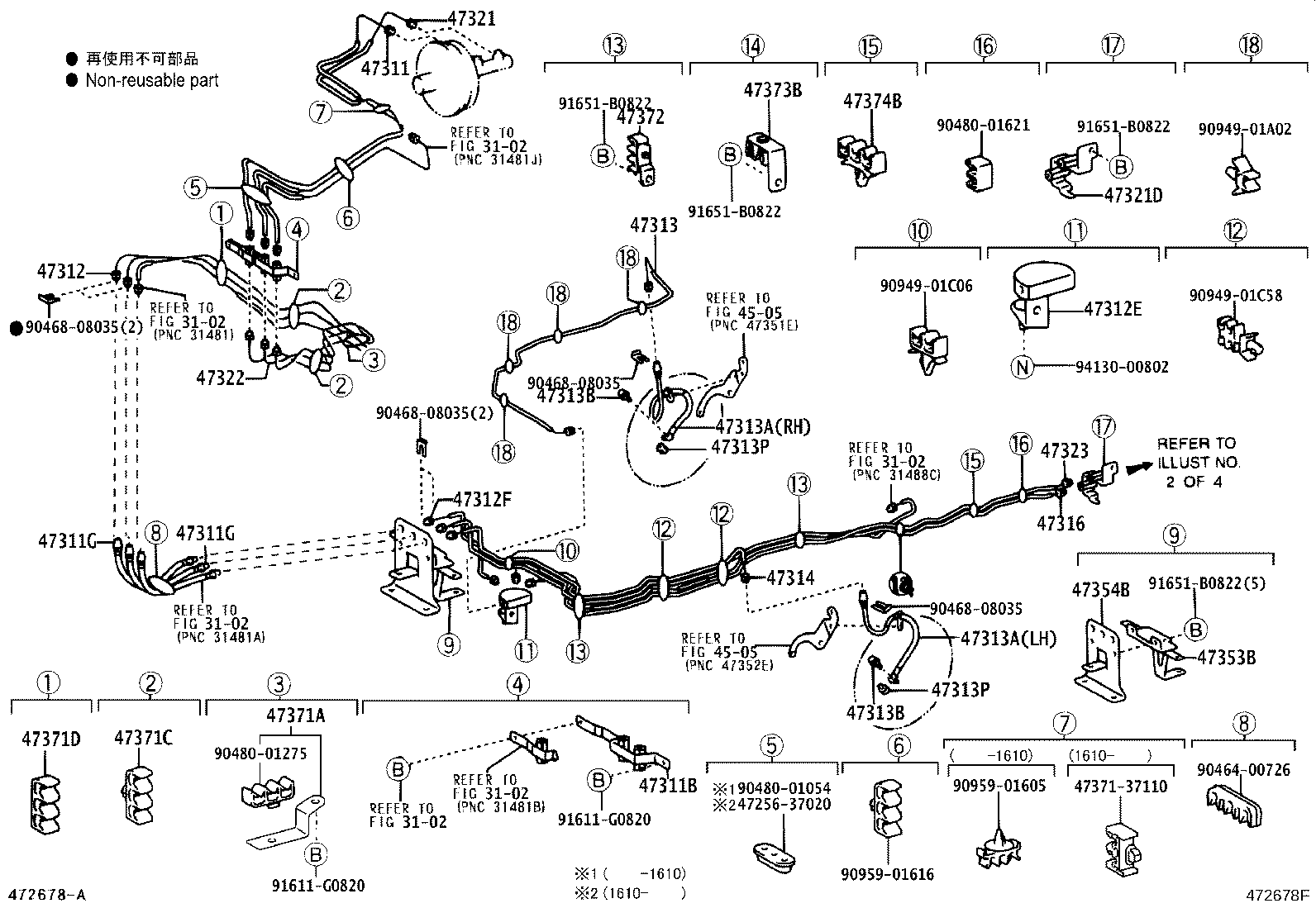

ILLUST NO. 1 OF 4(0108- )KDY220..LHD..IV3 ; (0108- )KDY221,23#,25#,26#..LHD

Click highlighted areas on diagram

diagram 3102 3102 3102 3102 3102 3102 4505 4505 4725637020 47311 47311B 47311G 47311G 47312 47312E 47312F 47313 47313A 47313A 47313B 47313B 47313P 47313P 47314 47316 47321 47321D 47322 47323 47353B 47354B 4737137110 47371A 47371C 47371D 47372 47373B 47374B 9046400726 9046808035 9046808035 9046808035 9046808035 9048001054 9048001275 9048001621 9094901A02 9094901C06 9094901C58 9095901605 9095901616 91611G0820 91611G0820 91651B0822 91651B0822 91651B0822 91651B0822 9413000802
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-25420

KDY22#,23#,25#,26#,LY225,235..LHD

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
47391-37010

KDY22#,23#,25#,26#,LY22#,23#

 1
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02C65

KDY22#,23#,25#,26#,LY22#,23#

 2
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02C65

KDY22#,23#,25#,26#,LY22#,23#

 2
47312 - TUBE, FRONT BRAKE, NO.2
47312-25210

KDY22#,23#,25#,26#,LY225,235..LHD

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90414-10052

KDY23#;KDY221..GEN;KDY22#,25#,26#,LY220,230..IV3

 1
47312F - TUBE, FRONT BRAKE, FRAME, NO.2
47312-25220

KDY22#,23#,25#,26#,LY220,230

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-25220

KDY23#;KDY221..GEN;KDY22#,25#,26#,LY220,230..IV3

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02C71

KDY22#,23#,25#,26#,LY220,230

LH

 1
90947-02C70

KDY22#,23#,25#,26#,LY220,230

RH

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02C71

KDY22#,23#,25#,26#,LY220,230

LH

 1
90947-02C70

KDY22#,23#,25#,26#,LY220,230

RH

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

KDY22#,23#,25#,26#,LY22#,23#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

KDY22#,23#,25#,26#,LY22#,23#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

KDY22#,23#,25#,26#,LY22#,23#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

KDY22#,23#,25#,26#,LY22#,23#

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-25250

KDY23#;KDY221..GEN;KDY22#,25#,26#,LY220,230..IV3

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-25320

KDY22#,23#,25#,26#,LY220,230

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-25280

KDY22#,23#,25#,26#,LY225,235..LHD

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10229

KDY22#,23#,25#,26#,LY22#,23#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-25180

KDY22#,23#,25#,26#,LY225,235..LHD

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-25210

KDY23#;KDY221..GEN;KDY22#,25#,26#,LY220,230..IV3

 1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-25110

KDY22#,23#,25#,26#,LY220,230

 1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47354-25030

KDY22#,23#,25#,26#,LY220,230

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-37020

KDY22#,23#,25#,26#,LY225,235..LHD

 1
47371C - CLAMP, BRAKE TUBE, NO.7
90480-01275

KDY22#,23#,25#,26#,LY22#,23#

 2
47372 - CLAMP, BRAKE TUBE, NO.2
47371-25010

KDY22#,23#,25#,26#,LY220,230

 1
47373B - CLAMP, BRAKE TUBE, NO.3
47371-25030

KDY22#,23#,25#,26#,LY220,230

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90949-01C84

KDY22#,23#,25#,26#,LY220,230

 1
Common parts
47256-37020
47371-37110
90464-00726
90468-08035
90480-01054
90480-01275
90480-01621
90949-01A02
90949-01C06
90949-01C58
90959-01605
90959-01616
91611-G0820
91651-B0822
94130-00802
Linked diagrams
3102
4505
