KDY260L-PBMEYW3 (2001)

Toyota Dyna

Production Aug 2001 - Sep 2006
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0108- )KDY23#,25#,26#..WT..IV3 ; (1610- )LY230

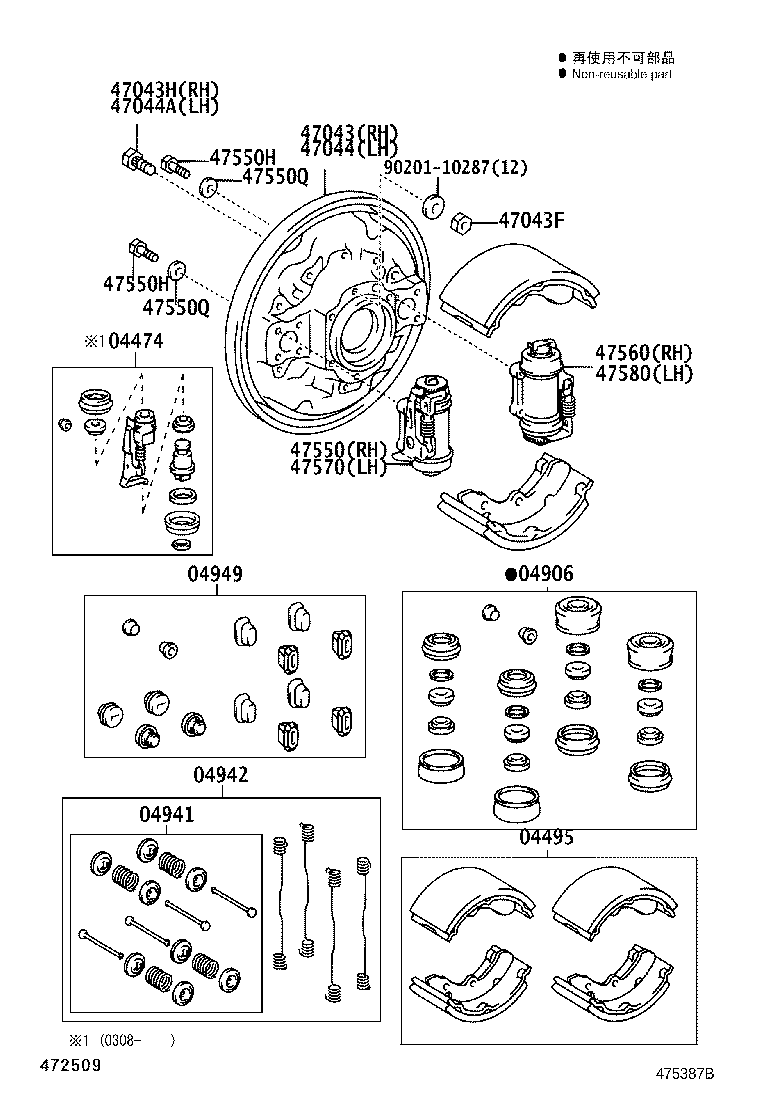

Click highlighted areas on diagram

W(ABS)

diagram 04474 04495 04906 04941 04942 04949 47043 47043F 47043H 47044 47044A 47550 47550H 47550H 47550Q 47550Q 47560 47570 47580 9020110287
Part # Description Qty Price
04474 - CYLINDER KIT, REAR WHEEL
04468-37060

KDY23#,25#,26#,LY230..WT..IV3

LH

 1
04474-37270

KDY23#,25#,26#,LY230..WT..IV3

RH

 1
04495 - SHOE KIT, REAR BRAKE
04495-25130

KDY23#,25#,26#,LY230..WT..IV3

MARK NBK LN503

 1
04906 - CUP KIT, REAR WHEEL CYLINDER
04906-25030

KDY23#,25#,26#,LY230..WT..IV3

 1
04941 - SPRING KIT, REAR BRAKE SHOE HOLD DOWN
04941-25010

LY235;KDY221,23#,25#,26#,LY230..WT..(ARL,EUR,GEN)

 1
04942 - SPRING KIT, REAR BRAKE
04942-25030

KDY23#,25#,26#,LY230..WT..IV3

 1
04949 - PLUG KIT, REAR BRAKE
04949-25020

LY235..ST;KDY230,250,260,LY230..WT

 1
04949-25040

LY235..ST;KDY23#,25#,26#,LY230..WT..IV3

 1
47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47043-25110

KDY23#,25#,26#,LY230..WT..IV3

 1
47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
94130-01002

KDY23#,25#,26#,LY230..WT..IV3

 8
47043H - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH)
90114-10063

KDY23#,25#,26#,LY230..WT..IV3

 4
47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47044-25080

KDY23#,25#,26#,LY230..WT..IV3

 1
47044A - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH)
90114-10063

KDY23#,25#,26#,LY230..WT..IV3

 4
47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47550-37090

KDY230,250,260,LY230..WT

 1
47550-37091

KDY23#,25#,26#,LY230..WT..IV3

 1
47550H - BOLT(FOR REAR WHEEL CYLINDER)
90101-08081

LY235;KDY221,23#,25#,26#,LY230..WT

 16
47550H - BOLT(FOR REAR WHEEL CYLINDER)
90101-08081

LY235;KDY221,23#,25#,26#,LY230..WT

 16
47550Q - WASHER(FOR REAR WHEEL CYLINDER)
90201-08002

LY235;KDY221,23#,25#,26#,LY230..WT

 16
47550Q - WASHER(FOR REAR WHEEL CYLINDER)
90201-08002

LY235;KDY221,23#,25#,26#,LY230..WT

 16
47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER)
47560-37061

KDY230,250,260,LY230..WT

 1
47560-37062

KDY23#,25#,26#,LY230..WT..IV3

 1
47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47570-37051

KDY23#,25#,26#,LY230..WT..IV3

 1
47570-37050

KDY230,250,260,LY230..WT

 1
47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER)
47580-37051

KDY230,250,260,LY230..WT

 1
47580-37052

KDY23#,25#,26#,LY230..WT..IV3

 1
Common parts
90201-10287
