KDY260L-PBMEYW3 (2001)

Toyota Dyna

Production Aug 2001 - Sep 2006
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0108-0308)KDY220,230,250,260..LHD

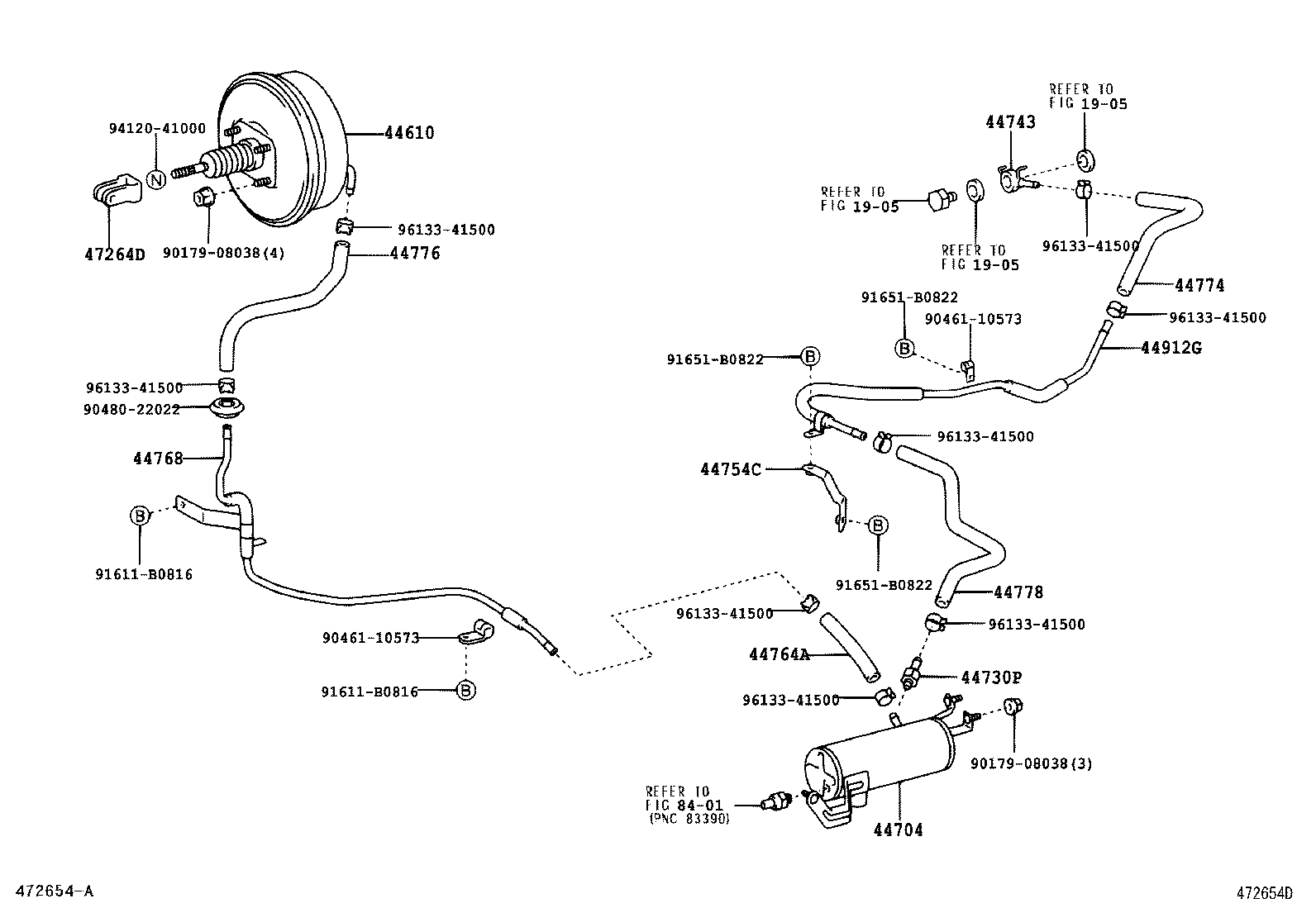

Click highlighted areas on diagram

diagram 1905 1905 1905 44610 44704 44730P 44743 44754C 44764A 44768 44774 44776 44778 44912G 47264D 8401 9017908038 9017908038 9046110573 9046110573 9048022022 91611B0816 91611B0816 91651B0822 91651B0822 91651B0822 9412041000 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-25310

LY235..ST;KDY22#,23#,25#,26#,LY230..ARL,EUR,SA

 1
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-25150

KDY220,230,250,260..LHD

 1
44730P - VALVE ASSY, VACUUM CHECK, NO.1
44730-60050

KDY22#,23#,25#,26#,LY22#,23#

 1
44743 - UNION(FOR VACUUM PUMP)
90405-09175

KDY22#,23#,25#,26#

 1
44764A - HOSE, BOOSTER VACUUM
90445-17141

KDY220,230,250,260..LHD

 1
44768 - TUBE, BOOSTER VACUUM
44768-25090

KDY220,230,250,260,LY225,235..LHD

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-25090

KDY220,230,250,260

 1
44774-25091

KDY22#,23#,25#,26#

 1
44776 - HOSE, BRAKE BOOSTER
44776-25050

KDY22#,23#,25#,26#,LY225,235..LHD

 1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-25030

KDY220,230,250,260..LHD

 1
44912G - TUBE, 3 WAY TO MAGNETIC VALVE
44912-25110

KDY220,230,250,260..LHD

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-25020

KDY22#,23#,25#,26#,LY22#,23#

 1
Common parts
90179-08038
90461-10573
90480-22022
91611-B0816
91651-B0822
94120-41000
96133-41500
Linked diagrams
1905
8401

(0308- )KDY22#,23#,25#,26#..LHD

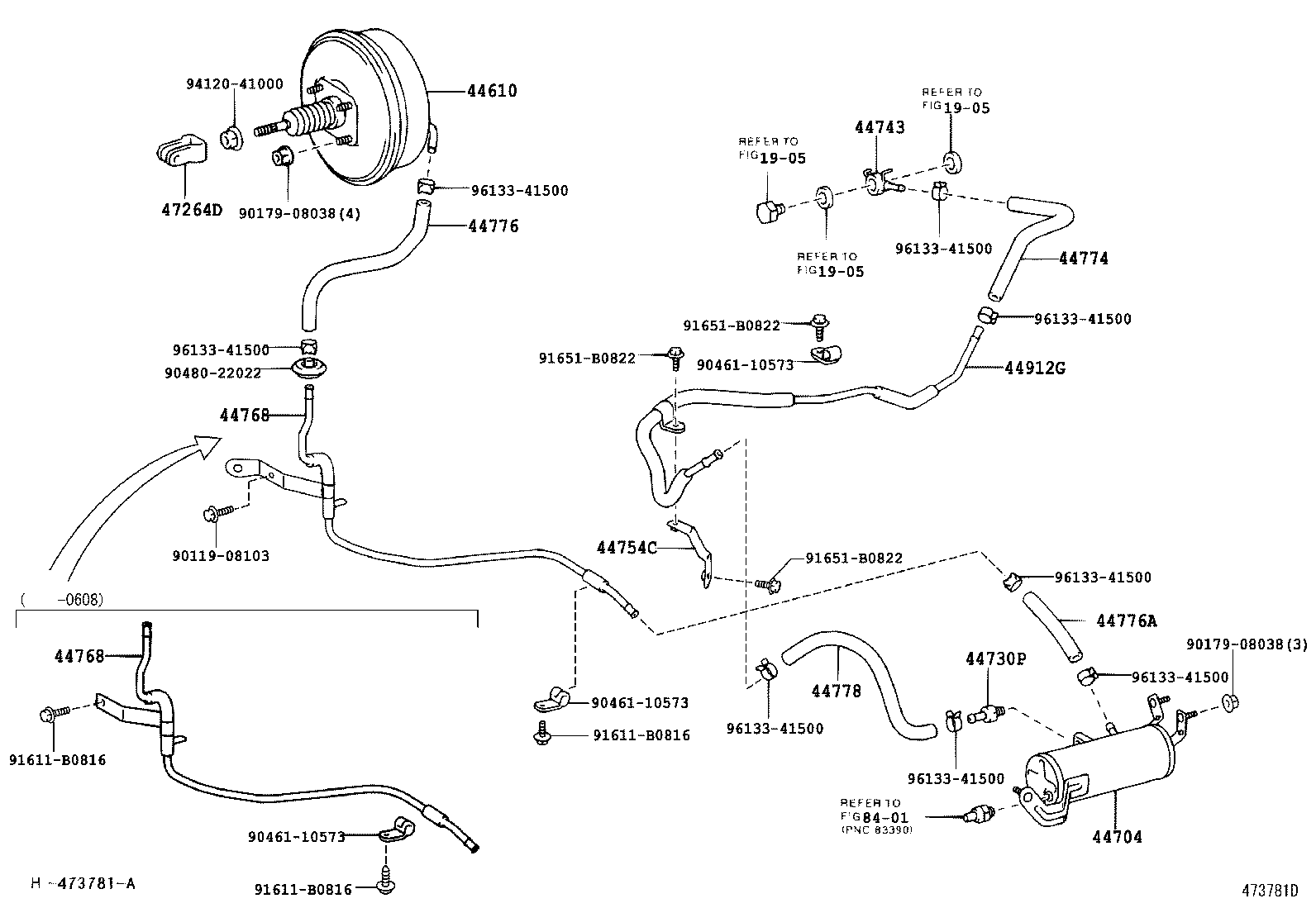

Click highlighted areas on diagram

diagram 1905 1905 1905 44610 44704 44730P 44743 44754C 44768 44768 44774 44776 44776A 44778 44912G 47264D 8401 9011908103 9017908038 9017908038 9046110573 9046110573 9046110573 9048022022 91611B0816 91611B0816 91611B0816 91651B0822 91651B0822 91651B0822 9412041000 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-25310

LY235..ST;KDY22#,23#,25#,26#,LY230..ARL,EUR,SA

 1
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-25150

KDY220,230,250,260..LHD

 1
44730P - VALVE ASSY, VACUUM CHECK, NO.1
44730-60050

KDY22#,23#,25#,26#,LY22#,23#

 1
44743 - UNION(FOR VACUUM PUMP)
90405-09175

KDY22#,23#,25#,26#

 1
44768 - TUBE, BOOSTER VACUUM
44768-25090

KDY220,230,250,260,LY225,235..LHD

 1
44768 - TUBE, BOOSTER VACUUM
44768-25090

KDY220,230,250,260,LY225,235..LHD

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-25090

KDY220,230,250,260

 1
44774-25091

KDY22#,23#,25#,26#

 1
44776 - HOSE, BRAKE BOOSTER
44776-25050

KDY22#,23#,25#,26#,LY225,235..LHD

 1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-25030

KDY220,230,250,260..LHD

 1
44912G - TUBE, 3 WAY TO MAGNETIC VALVE
44912-25110

KDY220,230,250,260..LHD

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-25020

KDY22#,23#,25#,26#,LY22#,23#

 1
Common parts
90119-08103
90179-08038
90461-10573
90480-22022
91611-B0816
91651-B0822
94120-41000
96133-41500
Linked diagrams
1905
8401
