KDY260L-PBMEYW3 (2001)

Toyota Dyna

Production Aug 2001 - Sep 2006
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0108- )KDY25#,26#

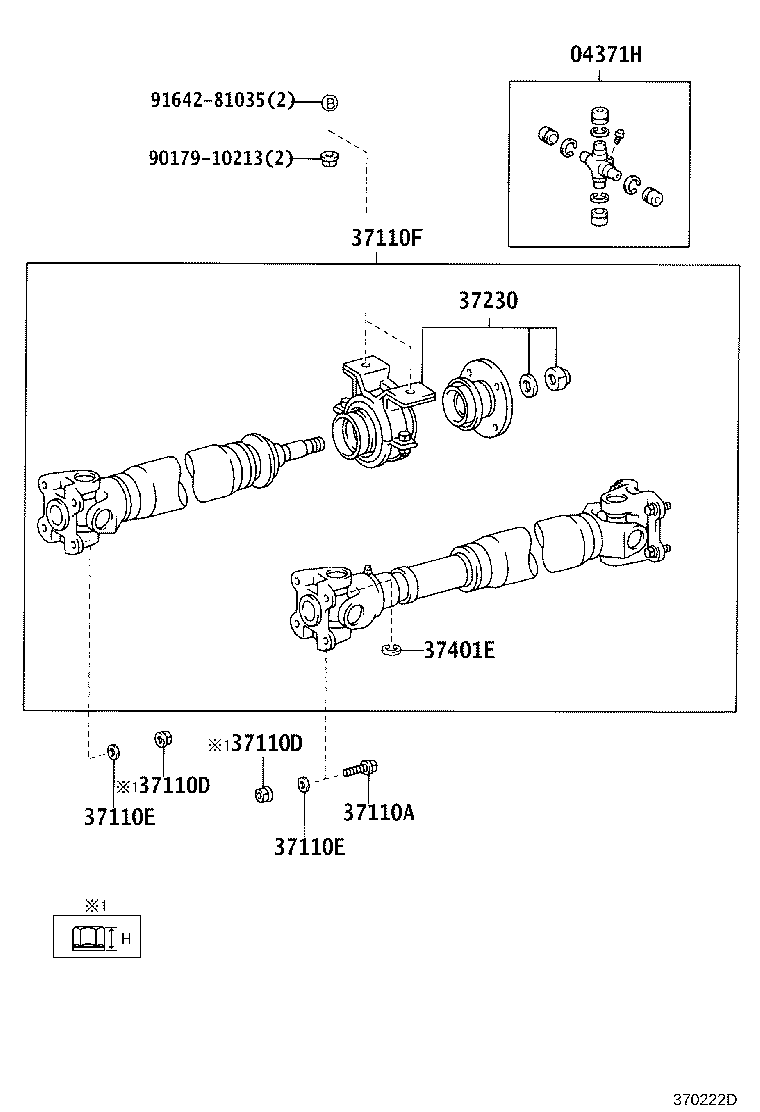

Click highlighted areas on diagram

diagram 04371H 37110A 37110D 37110D 37110E 37110E 37110F 37230 37401E 9017910213 9164281035
Part # Description Qty Price
37110A - BOLT (FOR PROPELLER SHAFT)
90105-11013

LY235..ST;KDY23#,25#,26#,LY230..WT..IV3

*11-1.00PX28-16

 4
37110D - NUT (FOR PROPELLER SHAFT)
90179-11005

LY235..ST;KDY23#,25#,26#,LY230..WT..IV3

H=10

 8
37110D - NUT (FOR PROPELLER SHAFT)
90179-11005

LY235..ST;KDY23#,25#,26#,LY230..WT..IV3

H=10

 8
37110E - WASHER (FOR PROPELLER SHAFT)
90201-11013

LY235..ST;KDY23#,25#,26#,LY230..WT..IV3

 8
37110E - WASHER (FOR PROPELLER SHAFT)
90201-11013

LY235..ST;KDY23#,25#,26#,LY230..WT..IV3

 8
Common parts
90179-10213
91642-81035
