KDY260L-PBMEYW3 (2001)

Toyota Dyna

Production Aug 2001 - Sep 2006
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

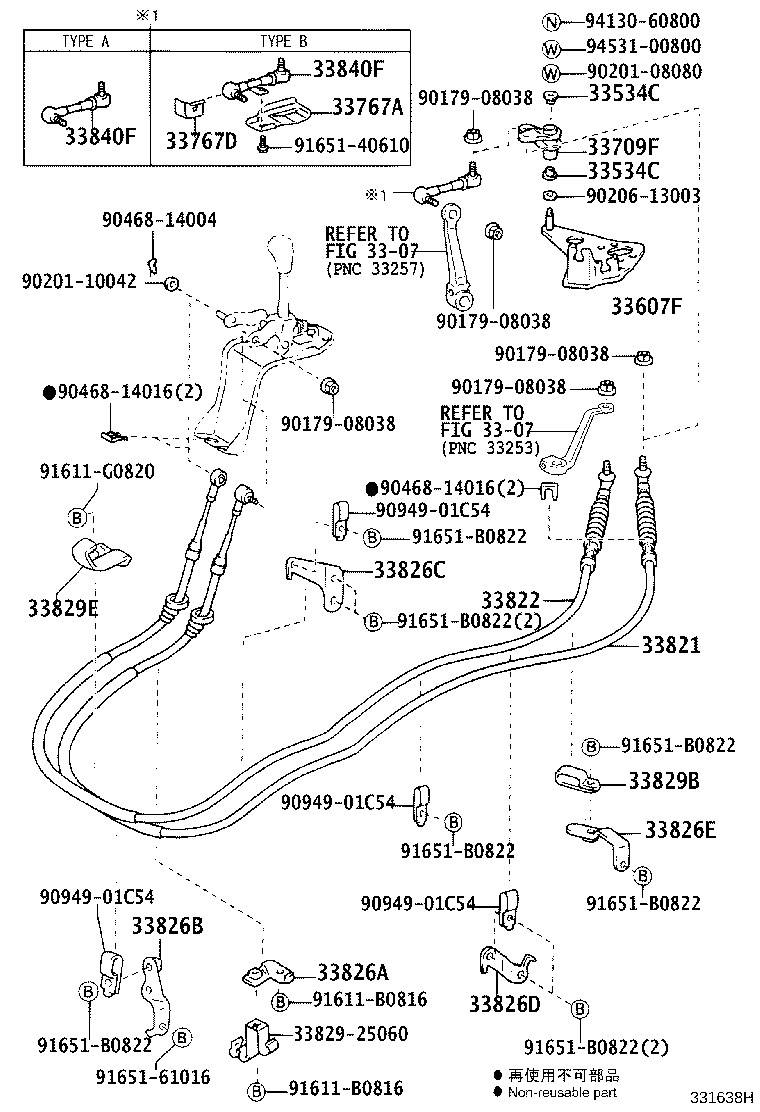

ILLUST NO. 2 OF 2(0108- )KDY22#,23#,25#,26#..LHD

Click highlighted areas on diagram

diagram 3307 3307 33534C 33534C 33607F 33709F 33767A 33767D 33821 33822 33826A 33826B 33826C 33826D 33826E 3382925060 33829B 33829E 33840F 33840F 9017908038 9017908038 9017908038 9017908038 9017908038 9020108080 9020110042 9020613003 9046814004 9046814016 9046814016 9094901C54 9094901C54 9094901C54 9094901C54 91611B0816 91611B0816 91611G0820 9165140610 9165161016 91651B0822 91651B0822 91651B0822 91651B0822 91651B0822 91651B0822 91651B0822 9413060800 9453100800
Part # Description Qty Price
33534C - BUSH (FOR SELECTING BELLCRANK NO.1)
90386-13192

KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY22#,23#

 2
33534C - BUSH (FOR SELECTING BELLCRANK NO.1)
90386-13192

KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY22#,23#

 2
33607F - SUPPORT SUB-ASSY, CONTROL ROD (FOR FLOOR SHIFT)
33607-25090

LY235;KDY221,23#,25#,26#,LY230..WT

 1
33709F - SHAFT SUB-ASSY, CROSS, NO.1 (FOR FLOOR SHIFT)
33709-25190

KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T

 1
33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2
33826-37680

KDY22#,23#,25#,26#,LY225,235..LHD

 1
33826C - BRACKET, TRANSMISSION CONTROL CABLE, NO.4
33826-25010

KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY220,230

 1
33826D - BRACKET, TRANSMISSION CONTROL CABLE, NO.5
33826-25020

KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY220,230

 1
33826E - BRACKET, TRANSMISSION CONTROL CABLE, NO.6
33827-25020

KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY220,230

 1
33829B - CLAMP, TRANSMISSION CONTROL CABLE
33829-25050

KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY220,230

 1
33840F - ROD ASSY, GEAR SHIFTING, NO.3
33840-25110

KDY220,230,250,260,LY22#,23#

 1
33840F - ROD ASSY, GEAR SHIFTING, NO.3
33840-25110

KDY220,230,250,260,LY22#,23#

 1
Common parts
33829-25060
90179-08038
90201-08080
90201-10042
90206-13003
90468-14004
90468-14016
90949-01C54
91611-B0816
91611-G0820
91651-40610
91651-61016
91651-B0822
94130-60800
94531-00800
Linked diagrams
3307
