KDY260L-PBMEYW3 (2001)

Toyota Dyna

Production Aug 2001 - Sep 2006
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0108- )KDY22#,23#,25#,26#

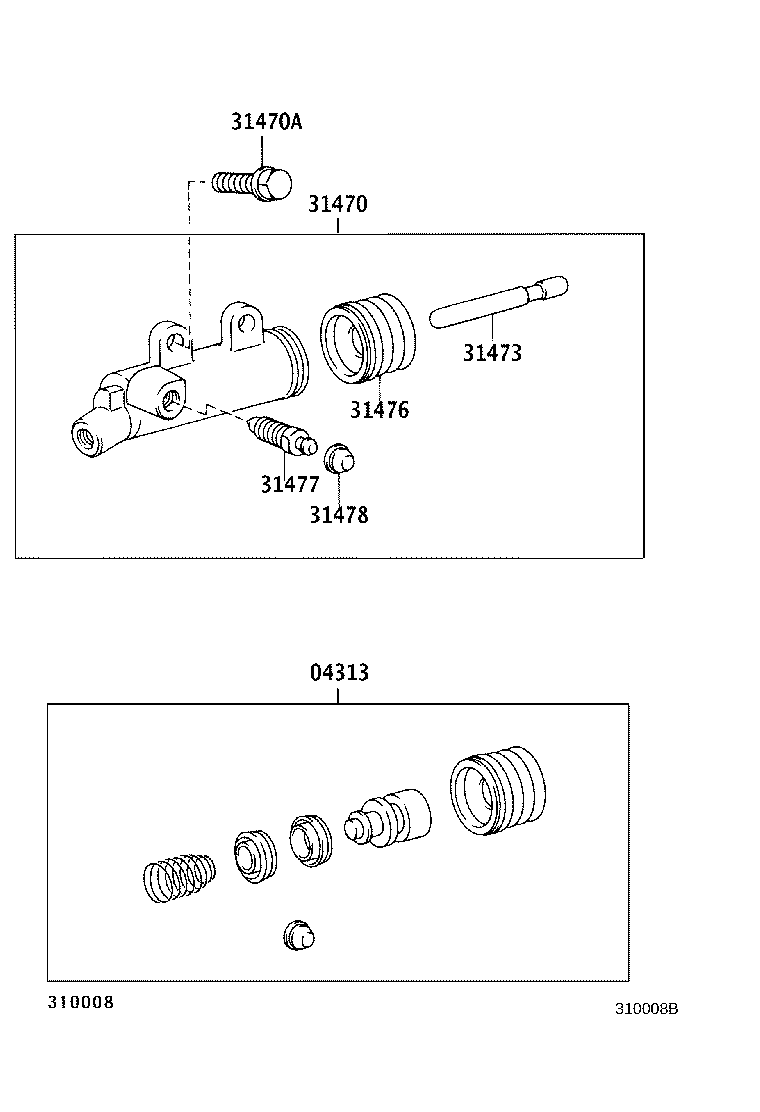

Click highlighted areas on diagram

diagram 04313 31470 31470A 31473 31476 31477 31478
Part # Description Qty Price
31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING)
91611-B0825

KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY22#,23#

*8-1.25PX25-25

 2
31476 - BOOT, CLUTCH RELEASE CYLINDER
31476-22010

KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY22#,23#

 1
31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER)
47547-12010

KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY22#,23#

 1
31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)
31478-30010

KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY22#,23#

 1
