KDY260L-PBMEYW3 (2001)

Toyota Dyna

Production Aug 2001 - Sep 2006
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0108- )KDY22#,23#,25#,26#

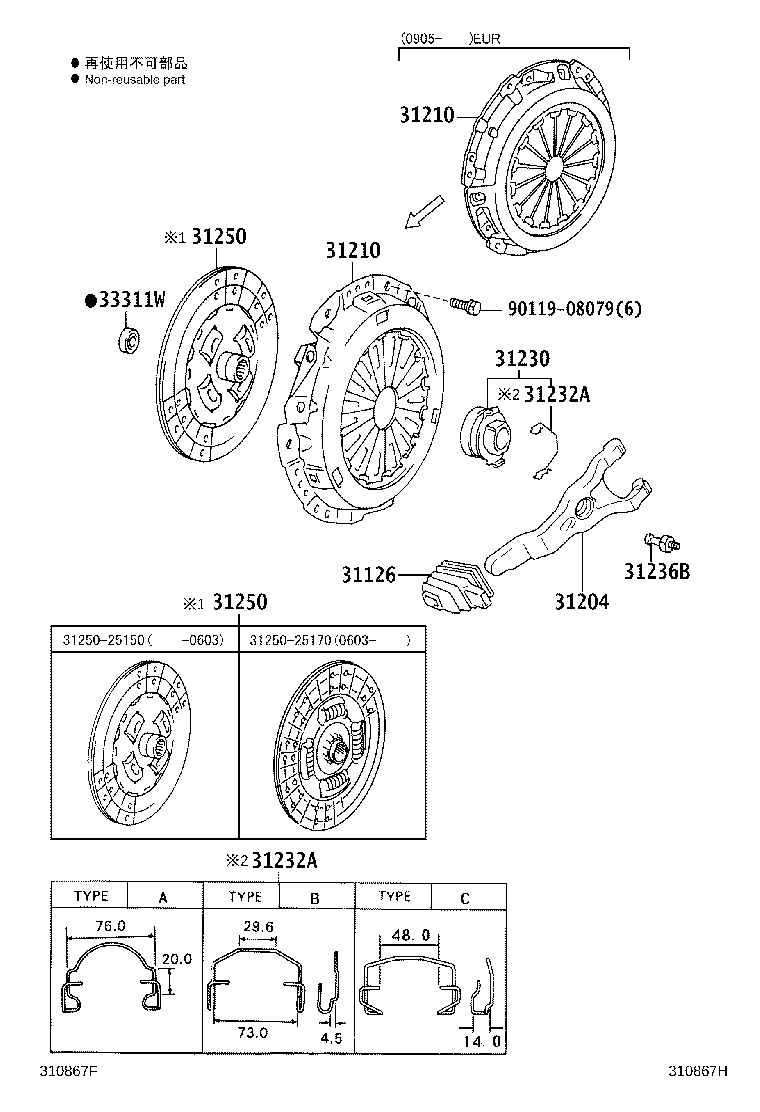

Click highlighted areas on diagram

diagram 31126 31204 31210 31210 31230 31232A 31232A 31236B 31250 31250 33311W 9011908079
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-60081

KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#

 1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-60090

KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#

 1
31210 - COVER ASSY, CLUTCH
31210-26090

KDY230,250,260..WT

 1
31210-26130

KDY230,250,260..WT

 1
31210 - COVER ASSY, CLUTCH
31210-26090

KDY230,250,260..WT

 1
31210-26130

KDY230,250,260..WT

 1
31236B - SUPPORT, RELEASE FORK
31236-60060

KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#

 1
31250 - DISC ASSY, CLUTCH
31250-25160

KDY230,250,260..WT

 1
31250 - DISC ASSY, CLUTCH
31250-25160

KDY230,250,260..WT

 1
33311W - BEARING (FOR INPUT SHAFT)
90363-12002

KDY22#,23#,25#,26#,LY22#,23#

 1
Common parts
90119-08079
