KDY260L-PBMEYW3 (2001)

Toyota Dyna

Production Aug 2001 - Sep 2006
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0108-0609)2KDFTV..KDY250,260

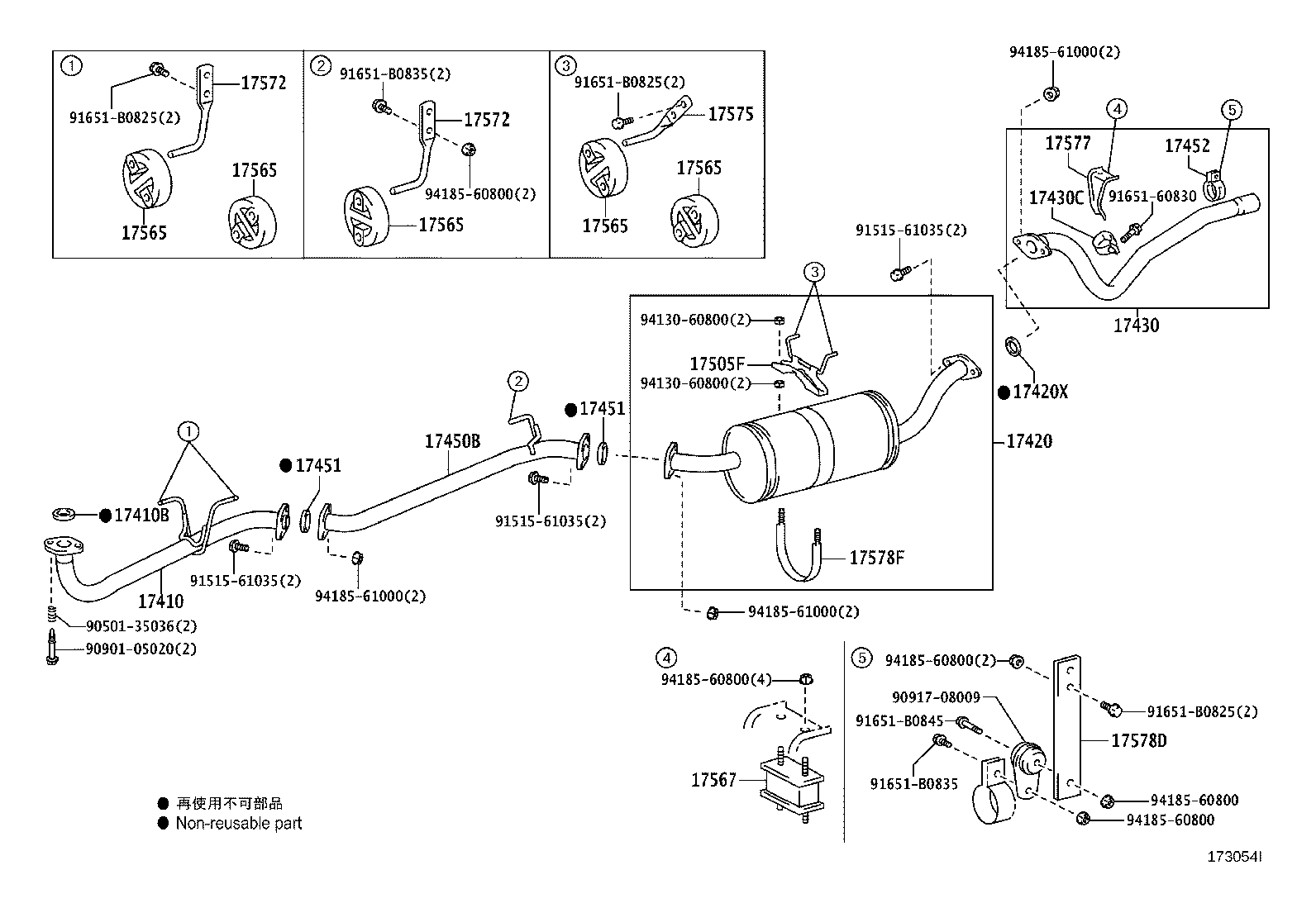

Click highlighted areas on diagram

diagram 17410 17410B 17420 17420X 17430 17430C 17450B 17451 17451 17452 17505F 17565 17565 17565 17565 17565 17567 17572 17572 17575 17577 17578D 17578F 9050135036 9090105020 9091708009 9151561035 9151561035 9151561035 9165160830 91651B0825 91651B0825 91651B0825 91651B0835 91651B0835 91651B0845 9413060800 9413060800 9418560800 9418560800 9418560800 9418560800 9418560800 9418561000 9418561000 9418561000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-30030

2KDFTV..KDY230,260

 1
17430C - CLAMP NO.1, EXHAUST TAIL PIPE (FOR FRONT)
90461-32007

2KDFTV,5L..KDY220,230,250,260,LY22#,23#

 1
17452 - CLAMP, EXHAUST PIPE
17452-54011

2KDFTV,5L..KDY220,230,250,260,LY22#,23#

 1
17505F - SUPPORT SUB-ASSY, EXHAUST PIPE
17505-54240

2KDFTV,5L..KDY220,230,250,260,LY220,230..ARL,EUR

 1
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-35010

1KDFTV,2KDFTV,5L..KDY22#,23#,25#,26#,LY22#,23#

 1
17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-71050

1KDFTV,2KDFTV,5L..KDY22#,23#,25#,26#,LY22#,23#

 1
17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7
17577-54050

2KDFTV,5L..KDY220,230,250,260,LY22#,23#

 1
17578D - BRACKET, EXHAUST PIPE SUPPORT, NO.8
17578-54020

1KDFTV,2KDFTV,5L..KDY22#,23#,25#,26#,LY22#,23#

 1
17578F - CLAMP, PIPE(FOR CENTER PIPE)
17578-54030

2KDFTV,5L..KDY220,230,250,260,LY220,230..ARL,EUR

 1
Common parts
90501-35036
90901-05020
90917-08009
91515-61035
91651-60830
91651-B0825
91651-B0835
91651-B0845
94130-60800
94185-60800
94185-61000
