KDY260L-PBMEYW3 (2001)

Toyota Dyna

Production Aug 2001 - Sep 2006
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0108-0210)2KDFTV

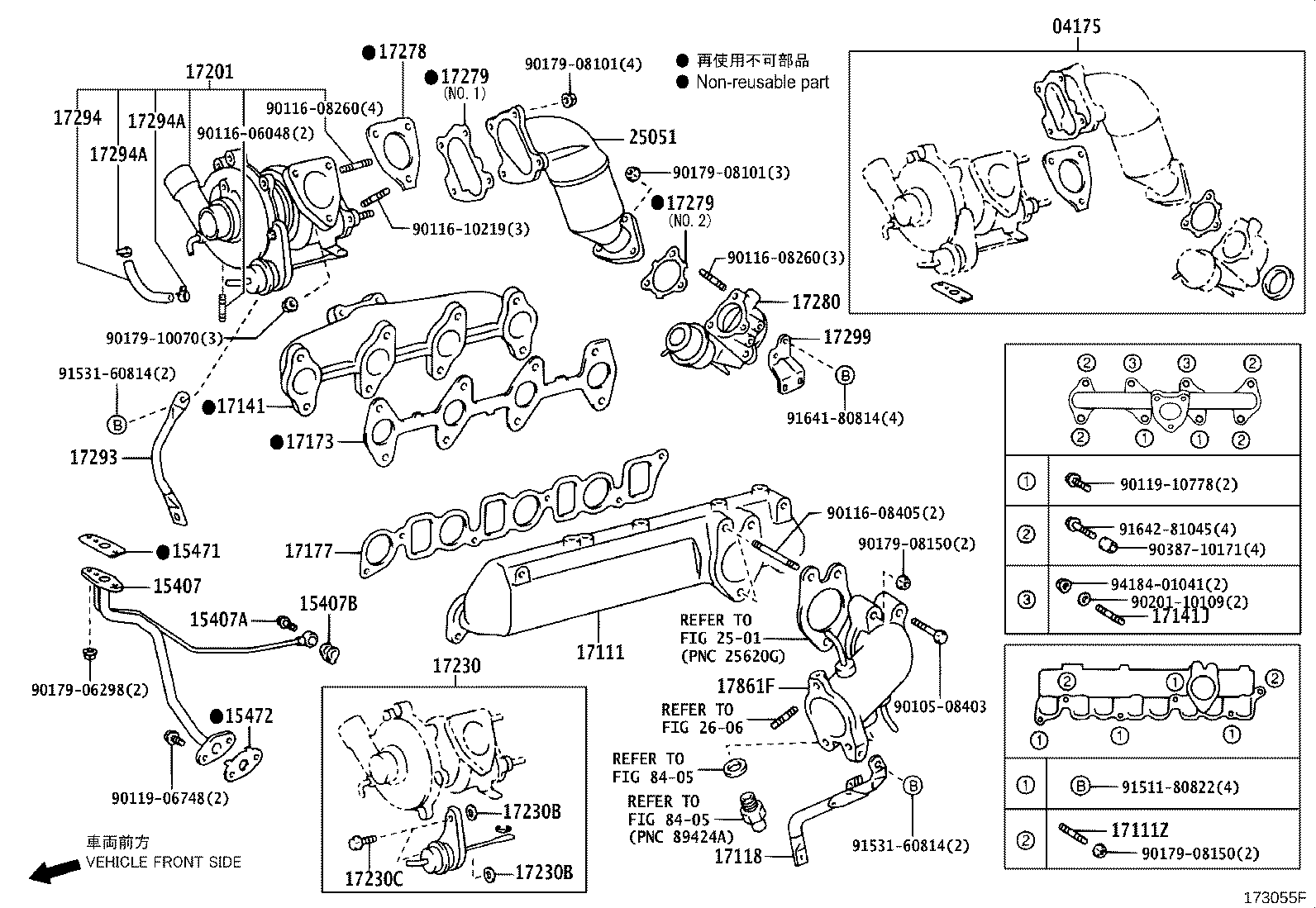

Click highlighted areas on diagram

diagram 04175 15407 15407A 15407B 15471 15472 17111 17111Z 17118 17141 17141J 17173 17177 17201 17230 17230B 17230B 17230C 17278 17279 17279 17280 17293 17294 17294A 17294A 17299 17861F 2501 25051 2606 8405 8405 9010508403 9011606048 9011608260 9011608260 9011608405 9011610219 9011906748 9011910778 9017906298 9017908101 9017908101 9017908150 9017908150 9017910070 9020110109 9038710171 9151180822 9153160814 9153160814 9164180814 9164281045 9418401041
Part # Description Qty Price
15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE)
90401-12097

1KDFTV,2KDFTV..KDY22#,23#,25#,26#

 1
15407B - GASKET(FOR TURBO OIL INLET PIPE)
90904-30004

1KDFTV,2KDFTV..KDY22#,23#,25#,26#

 1
17141 - MANIFOLD, EXHAUST
17141-30040

2KDFTV..KDY220,230,250,260

 1
17141J - BOLT, STUD(FOR EXHAUST MANIFOLD, RH)
90126-10017

2KDFTV..KDY220,230,250,260

 6
90126-10017

2KDFTV..KDY220,230,250,260

 2
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-30020

1KDFTV,2KDFTV..KDY22#,23#,25#,26#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-30010

2KDFTV..KDY220,230,250,260

 1
17177-30011

1KDFTV,2KDFTV..KDY22#,23#,25#,26#

 1
17201 - TURBOCHARGER SUB-ASSY
17201-30020

2KDFTV..KDY220,230,250,260

 1
17278 - GASKET, TURBO TO EXHAUST MANIFOLD
17278-67010

1KDFTV,2KDFTV..KDY22#,23#,25#,26#

 1
Common parts
90105-08403
90116-06048
90116-08260
90116-08405
90116-10219
90119-06748
90119-10778
90179-06298
90179-08101
90179-08150
90179-10070
90201-10109
90387-10171
91511-80822
91531-60814
91641-80814
91642-81045
94184-01041
Linked diagrams
2501
2606
8405
