KDY260L-PBMEYW3 (2001)

Toyota Dyna

Production Aug 2001 - Sep 2006
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0108-0405)2KDFTV

Click highlighted areas on diagram

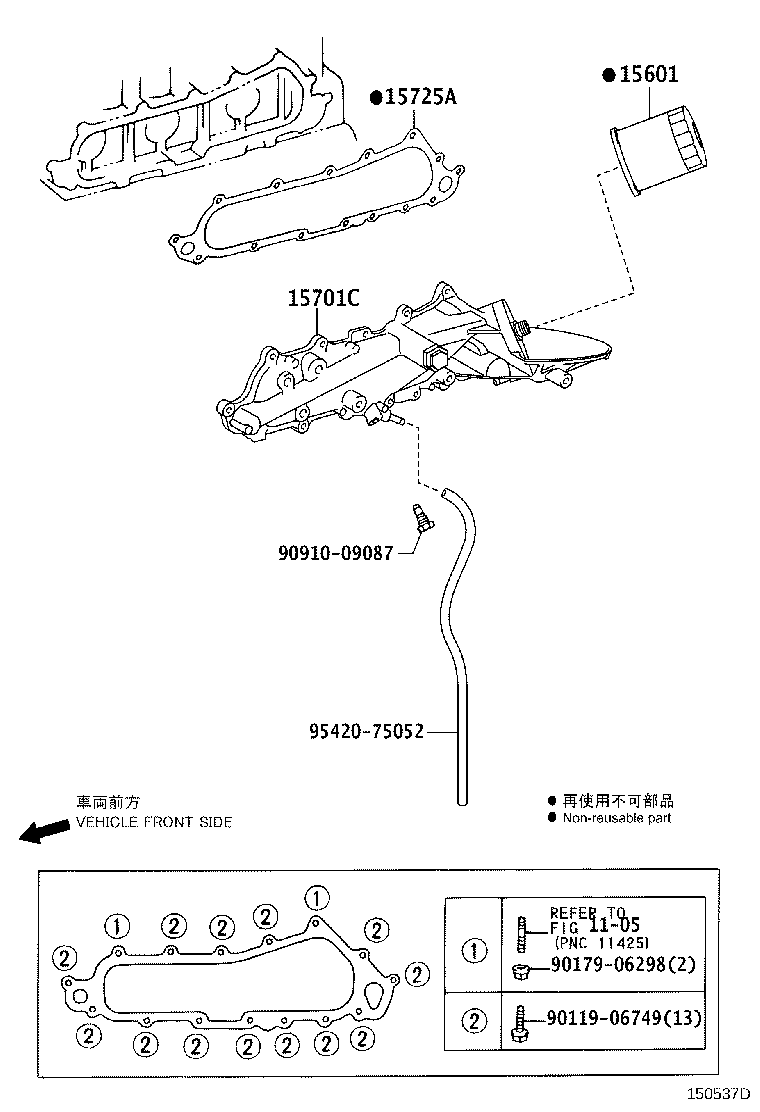

diagram 1105 15601 15701C 15725A 9011906749 9017906298 9091009087 9542075052
Part # Description Qty Price
15701C - COVER SUB-ASSY, OIL COOLER
15701-30020

2KDFTV..KDY220,230,250,260

 1
15725A - GASKET, OIL COOLER COVER
15725-67010

1KDFTV,2KDFTV..KDY22#,23#,25#,26#

 1
Common parts
90119-06749
90179-06298
90910-09087
95420-75052
Linked diagrams
1105
