KDY260L-PBMEYW3 (2001)

Toyota Dyna

Production Aug 2001 - Sep 2006
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0108-0406)2KDFTV

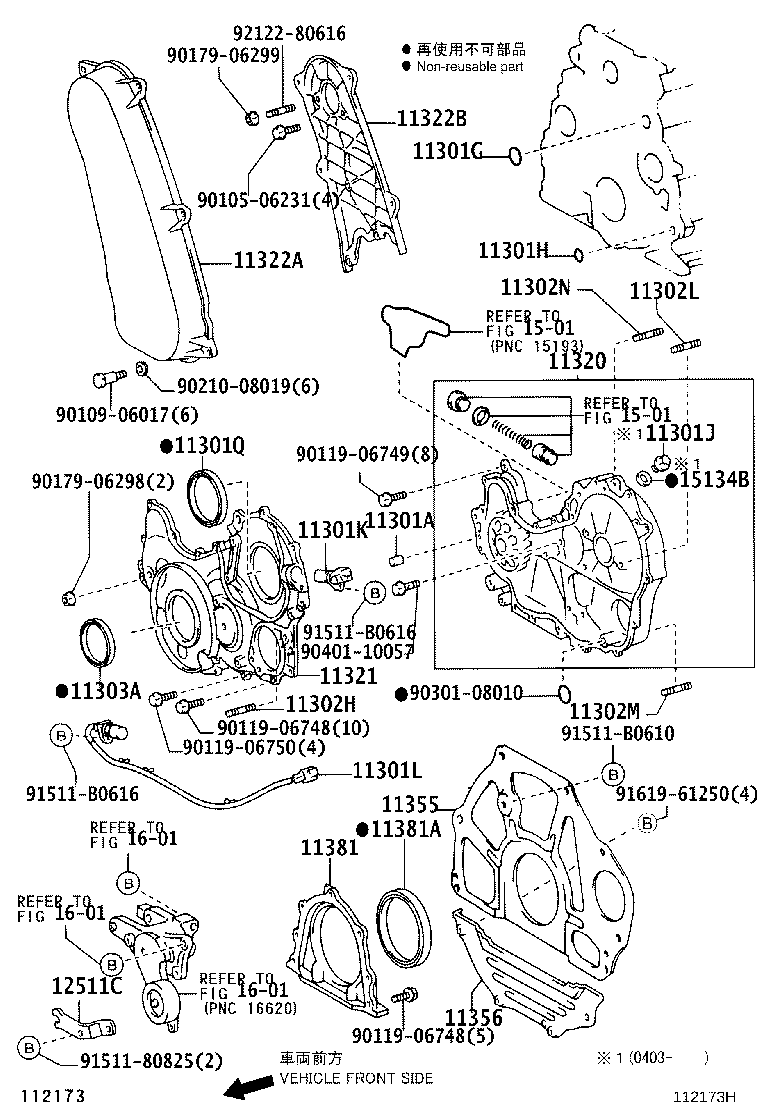

Click highlighted areas on diagram

diagram 11301A 11301G 11301H 11301J 11301K 11301L 11301Q 11302H 11302L 11302M 11302N 11303A 11320 11321 11322A 11322B 11355 11356 11381 11381A 12511C 1501 1501 15134B 1601 1601 1601 9010506231 9010906017 9011906748 9011906748 9011906749 9011906750 9017906298 9017906299 9021008019 9030108010 9040110057 9151180825 91511B0610 91511B0616 91511B0616 9161961250 9212280616
Part # Description Qty Price
11301A - PIN, STRAIGHT(FOR TIMING GEAR CASE)
90250-08120

1KDFTV,2KDFTV..KDY22#,23#,25#,26#

L=18,OD=8

 1
11301G - RING, O(FOR TIMING GEAR CASE, UPPER)
90301-22007

1KDFTV,2KDFTV..KDY22#,23#,25#,26#

 1
11301H - RING, O(FOR TIMING GEAR CASE, LOWER)
90301-09018

1KDFTV,2KDFTV..KDY22#,23#,25#,26#

 1
11301J - PLUG, W/HEAD STRAIGHT SCREW(FOR TIMING GEAR CASE)
90341-18015

1KDFTV,2KDFTV..KDY22#,23#,25#,26#

 1
11301L - SENSOR, CRANK POSITION NO.2
90919-05050

2KDFTV..KDY220,230,250,260

 1
11302H - BOLT, STUD(FOR TIMING GEAR COVER)
90116-08376

2KDFTV..KDY220,230,250,260

 2
11302M - BOLT, STUD(FOR POWER STEERING VANE PUMP)
90116-10160

1KDFTV,2KDFTV..KDY22#,23#,25#,26#

 2
11322A - COVER, TIMING BELT, NO.1
11332-30010

2KDFTV..KDY220,230,250,260

 1
11322B - COVER, TIMING BELT, NO.2
11322-30010

1KDFTV,2KDFTV..KDY22#,23#,25#,26#

 1
11355 - PLATE, REAR END
11355-67011

1KDFTV,2KDFTV..KDY22#,23#,25#,26#

 1
11355-67010

2KDFTV..KDY220,230,250,260

 1
11356 - PLATE, REAR END, NO.2
11356-67030

1KDFTV,2KDFTV..KDY22#,23#,25#,26#

 1
12511C - BRACKET, ALTERNATOR
12511-30031

1KDFTV,2KDFTV..KDY22#,23#,25#,26#

 1
12511-30030

2KDFTV..KDY220,230,250,260

 1
15134B - GASKET, OIL PUMP RELIEF VALVE
15134-67010

1KDFTV,2KDFTV..KDY22#,23#,25#,26#

 1
Common parts
90105-06231
90109-06017
90119-06748
90119-06749
90119-06750
90179-06298
90179-06299
90210-08019
90301-08010
90401-10057
91511-80825
91511-B0610
91511-B0616
91619-61250
92122-80616
Linked diagrams
1501
1601
