KDY250R-TBMGYW3 (2001)
Toyota Dyna
ILLUST NO. 1 OF 3(0108- )KDY22#,23#,25#..RHD ; (0110- )SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51771E - PLATE, STEP, RH | ||||
| 51771-37100 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 51772D - PLATE, STEP, LH | ||||
| 51772-37080 |
KDY22#,23#,25#,LY22#,23#..RHD |
1 | ||
| 51773C - COVER, STEP PLATE, RH | ||||
| 51773-37020 |
KDY220,230,250,260,LY22#,23# NO PAINT REQ. |
1 | ||
| 51774C - COVER, STEP PLATE, LH | ||||
| 51774-37010 |
KDY220,230,250,260,LY22#,23# NO PAINT REQ. |
1 | ||
| 53701H - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-37040 |
KDY22#,23#,25#,LY220,230..RHD |
1 | ||
| 53717E - APRON, FRONT FENDER, NO.2 RH | ||||
| 53717-25050 |
KDY221;LY225,235..LHD;KDY231,251,261..15T;KDY220,230,250,LY220,230..RHD |
1 | ||
| 53718C - APRON, FRONT FENDER, NO.2 LH | ||||
| 53718-37110 |
KDY221;LY225,235..LHD;KDY231,251,261..15T;KDY220,230,250,LY220,230..RHD |
1 | ||
| 53722B - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53722-37030 |
KDY220,230,250,LY220,230..RHD |
1 | ||
| 53891C - SEAL, FRONT FENDER SPLASH SHEILD, FRONT | ||||
| 53891-37030 |
KDY220,230,250,260,LY220,230 |
1 | ||
| 54908 - BRACKET SUB-ASSY, TILT CAB GRIP | ||||
| 54908-37010 |
KDY23#,25#,26#..15T;KDY22#,LY230..EUR,GEN,SA |
1 | ||
| 57014 - MEMBER SUB-ASSY, FLOOR, FRONT LH | ||||
| 57014-25030 |
KDY22#,23#,25#,26#,LY220,230 |
1 | ||
| 57169 - MEMBER, FRONT FLOOR, FRONT RH | ||||
| 57169-37080 |
KDY220,230,250,260,LY220,230 |
1 | ||
| 57408B - MEMBER SUB-ASSY, FRONT FLOOR CROSS | ||||
| 57408-25360 |
KDY220,230,250..RHD |
1 | ||
| 57408-25361 |
KDY220,230,250..RHD |
1 | ||
| 57467A - BRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT LH | ||||
| 57467-37011 |
KDY22#,23#,25#,LY230..RHD..(EUR,GEN,SA) |
1 | ||
| 57467-37010 |
KDY220,230,250,LY230..RHD..(EUR,SA) |
1 | ||
| 57486A - REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH | ||||
| 57486-37011 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 57517A - RETAINER, FRONT FLOOR REINFORCEMENT, REAR | ||||
| 57517-37010 |
KDY220,230,250,LY220,230..RHD |
1 | ||
| 57517-37011 |
KDY22#,23#,25#,LY22#,23#..RHD |
1 | ||
| 58025A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH | ||||
| 58043-25020 |
KDY22#,LY22#,23#;KDY23#,25#,26#..15T |
1 | ||
| 58026A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH | ||||
| 58044-37090 |
KDY22#,LY22#,23#;KDY23#,25#,26#..15T |
1 | ||
| 58044-37070 |
KDY220,LY22#,23#;KDY230,250,260..15T |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-37172 |
KDY220,230,250..RHD W(*80) |
1 | ||
| 58111-37301 |
KDY220,230,250,LY230..RHD..(EUR,SA) |
1 | ||
| 58111-37173 |
KDY220,230,250..RHD W(*80) |
1 | ||
| 58111-37171 |
KDY220,230,250..RHD W(*80) |
1 | ||
| 58111-37303 |
KDY220,230,250,LY230..RHD..(EUR,SA) |
1 | ||
| 58111-37302 |
KDY220,230,250,LY230..RHD..(EUR,SA) |
1 | ||
| 58115B - PANEL, FRONT FLOOR, REAR | ||||
| 58115-37011 |
KDY220,230,250,LY230..RHD..(EUR,SA) |
1 | ||
| 58115-37013 |
KDY220,230,250,LY230..RHD..(EUR,SA) |
1 | ||
| 58115-37012 |
KDY220,230,250,LY230..RHD..(EUR,SA) |
1 | ||
| 58123A - SUPPORT, SHIFT & SELECT LEVER | ||||
| 58123-37010 |
KDY22#,23#,25#,LY230..RHD..(EUR,GEN,SA) |
1 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58107-37010 |
KDY22#,23#,25#,LY230..RHD..(EUR,GEN,SA) |
1 | ||
| 58181A - RETAINER, SEAT RAIL, FRONT | ||||
| 58181-37030 |
KDY22#,23#,25#,LY220,230..RHD |
1 | ||
| 58182B - RETAINER, SEAT RAIL, FRONT LH | ||||
| 58182-37010 |
KDY22#,23#,25#,LY230..RHD..(EUR,GEN,SA) |
1 | ||
| 58183F - REINFORCEMENT, REAR MOUNTING, RH | ||||
| 58183-37060 |
KDY230,250,260..15T;KDY220,LY230..EUR,SA |
1 | ||
| 58184E - REINFORCEMENT, REAR MOUNTING, LH | ||||
| 58184-25020 |
KDY230,250,260..15T;KDY220,LY230..EUR,SA |
1 | ||
| 58192B - PLATE, FRONT FLOOR, REAR | ||||
| 58192-37020 |
KDY22#,23#,25#,LY230..RHD..(EUR,GEN,SA) |
3 | ||
| 58236F - BRACKET, CLUTCH TUBE | ||||
| 58236-95J01 |
KDY220..RHD..CBU;KDY230,250,LY220,230..RHD |
1 | ||
| 58251B - BRACE, FLOOR PANEL, FRONT | ||||
| 58251-37032 |
KDY22#,23#,25#,LY225,23#..RHD |
1 | ||
| 58251-37031 |
KDY220..RHD..CBU;KDY230,250,LY220,230..RHD |
1 | ||
| 58252B - BRACE, FLOOR PANEL, FRONT LH | ||||
| 58252-37031 |
KDY220..RHD..CBU;KDY230,250,LY220,230..RHD |
1 | ||
| 58295C - BRACKET, FLOOR SHIFT LEVER, NO.1 | ||||
| 58295-37060 |
KDY220..RHD..CBU;KDY230,250,LY220,230..RHD |
1 | ||
| 58298A - REINFORCEMENT, SEAT BELT ANCHOR FLOOR, RH | ||||
| 58298-37010 |
KDY220,LY220,230;KDY221..LHD..IV3;KDY23#,25#,26#..15T;KDY221,LY225,235..RHD |
1 | ||
| 58299B - REINFORCEMENT, SEAT BELT ANCHOR FLOOR, LH | ||||
| 58298-37010 |
KDY22#,LY22#,23#;KDY23#,25#,26#..15T |
1 | ||
| 58848A - COVER, SHIFT LEVER HOLE | ||||
| 58840-37010 |
KDY22#,23#,25#,LY22#,23#..RHD |
1 | ||
| 58853A - PACKING, SHIFT LEVER HOLE | ||||
| 58853-37020 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 61335F - RETAINER, SEAT BELT ANCHOR | ||||
| 61335-37010 |
KDY22#,23#,25#,LY230..RHD..(EUR,GEN,SA) |
1 | ||
| 64025A - BRACKET SUB-ASSY, REAR MOUNTING, RH | ||||
| 64171-37010 |
KDY230,250,260..15T;KDY220,LY230..EUR,SA |
1 | ||
| 64026B - BRACKET SUB-ASSY, REAR MOUNTING, LH | ||||
| 64172-37020 |
KDY230,250,260..15T;KDY220,LY230..EUR,SA |
1 | ||
| 64172-37021 |
KDY230,250,260..15T;KDY220,LY230..EUR,SA |
1 | ||
| 64153D - REINFORCEMENT, BACK FRAME | ||||
| 64153-37020 |
KDY230,250,260..15T;KDY220,LY230..EUR,SA |
1 | ||
| 52123-32040 |
KDY23#,25#,26#..15T;KDY22#,LY230..EUR,GEN,SA |
1 | ||
| 64177A - STOPPER, REAR MOUNTING BRACKET, RH | ||||
| 64177-25010 |
KDY23#,25#,26#..15T;KDY22#,LY230..EUR,GEN,SA |
1 | ||
| 64178A - STOPPER, REAR MOUNTING BRACKET, LH | ||||
| 64178-25010 |
KDY23#,25#,26#..15T;KDY22#,LY230..EUR,GEN,SA |
1 | ||
| 87441F - FILTER, HEATER AIR | ||||
| 87441-37010 |
LY235..RHD..ST;KDY220,230,250,LY220,230..RHD |
1 | ||
| Common parts | ||||
| 82712-37070 | ||||
| 90105-08347 | ||||
| 90119-06801 | ||||
| 90159-60430 | ||||
| 90297-03007 | ||||
| 90467-06133C0 | ||||
| 90467-0908722 | ||||
| 91551-80610 | ||||
| 91551-A0814 | ||||
| 91642-81030 | ||||
| 91642-81035 | ||||
| 93560-15014 | ||||
| 94151-80800 | ||||

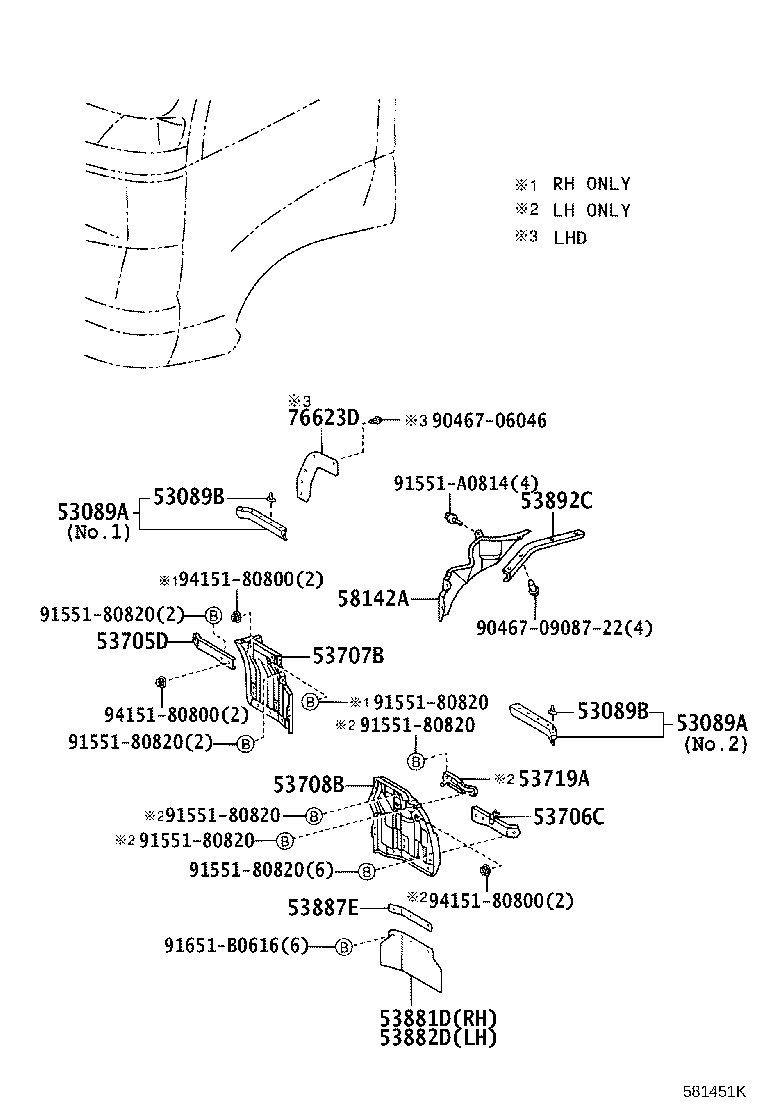

ILLUST NO. 2 OF 3(0108- )KDY22# ; (0108- )KDY23#,25#,26#..15T ; (0110- )SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53089A - MUDGUARD SUB-ASSY, FRONT | ||||
| 53089-25010 |
KDY22#,23#,25#,LY220,230..RHD NO.1 OR NO.2 |
2 | ||
| 53089A - MUDGUARD SUB-ASSY, FRONT | ||||
| 53089-25010 |
KDY22#,23#,25#,LY220,230..RHD NO.1 OR NO.2 |
2 | ||
| 53089B - CLIP, FRONT MUDGUARD | ||||
| 67868-95401 |
KDY22#,LY22#,23#;KDY23#,25#,26#..15T |
10 | ||
| 53089B - CLIP, FRONT MUDGUARD | ||||
| 67868-95401 |
KDY22#,LY22#,23#;KDY23#,25#,26#..15T |
10 | ||
| 53705D - BRACE SUB-ASSY, FENDER APRON, RH | ||||
| 53705-25020 |
KDY22#,LY22#,23#;KDY23#,25#,26#..15T |
1 | ||
| 53706C - BRACE SUB-ASSY, FENDER APRON, LH | ||||
| 53706-25010 |
KDY22#,LY22#,23#;KDY23#,25#,26#..15T |
1 | ||
| 53707B - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53715-25040 |
KDY220..IV3;KDY230,250,260..15T FENDER LINER = PORTUGAL CKD PARTS |
1 | ||
| 53715-25020 |
KDY22#,LY22#,23#;KDY23#,25#,26#..15T |
1 | ||
| 53708B - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53716-25060 |
KDY220..IV3;KDY230,250,260..15T FENDER LINER = PORTUGAL CKD PARTS |
1 | ||
| 53716-25040 |
KDY22#,LY22#,23#;KDY23#,25#,26#..15T |
1 | ||
| 53719A - BRACE, FENDER APRON | ||||
| 53719-25010 |
KDY22#,LY22#,23#;KDY23#,25#,26#..15T |
1 | ||
| 53881D - MUDGUARD, FRONT RH | ||||
| 53881-25020 |
KDY22#,LY22#,23#;KDY23#,25#,26#..15T |
1 | ||
| 53882D - MUDGUARD, FRONT LH | ||||
| 53881-25020 |
KDY22#,LY22#,23#;KDY23#,25#,26#..15T |
1 | ||
| 53887E - PLATE, FRONT MUDGUARD | ||||
| 53887-25010 |
KDY22#,LY22#,23#;KDY23#,25#,26#..15T |
2 | ||
| 53892C - SEAL, FRONT FENDER SPLASH SHIELD, FRONT LH | ||||
| 53892-25010 |
KDY220,230,250,260,LY220,230 |
1 | ||
| 58142A - APRON, FRONT FLOOR SIDE, NO.1 LH | ||||
| 58142-25030 |
KDY22#,23#,25#,26#,LY220,230 |
1 | ||
| Common parts | ||||
| 90467-06046 | ||||
| 90467-0908722 | ||||
| 91551-80820 | ||||
| 91551-A0814 | ||||
| 91651-B0616 | ||||
| 94151-80800 | ||||

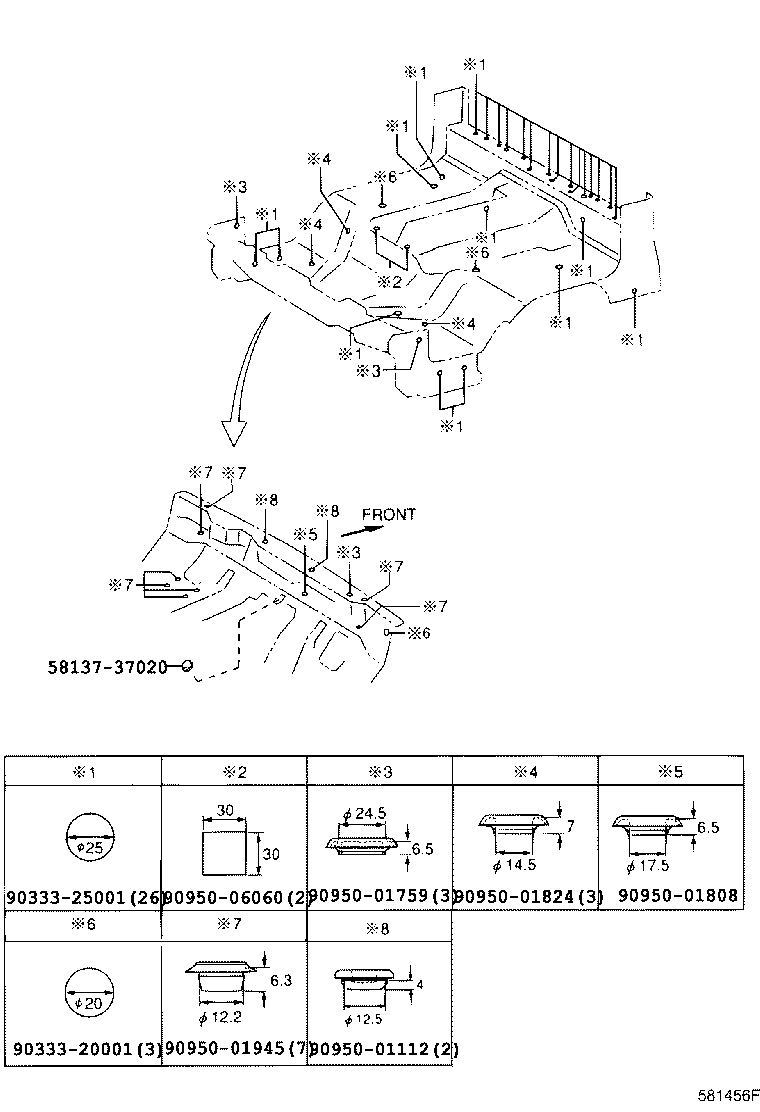

ILLUST NO. 3 OF 3(0108- )KDY220 ; (0108- )KDY221,231,251..RHD ; (0108- )KDY230,250,260..15T
HOLE PLUG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 58137-37020 | ||||
| 90333-20001 | ||||
| 90333-25001 | ||||
| 90950-01112 | ||||
| 90950-01759 | ||||
| 90950-01808 | ||||
| 90950-01824 | ||||
| 90950-01945 | ||||
| 90950-06060 | ||||
