KDY250R-TBMGYW3 (2001)

Toyota Dyna

Production Aug 2001 - Sep 2006
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0108-0308)KDY220,230,250..RHD

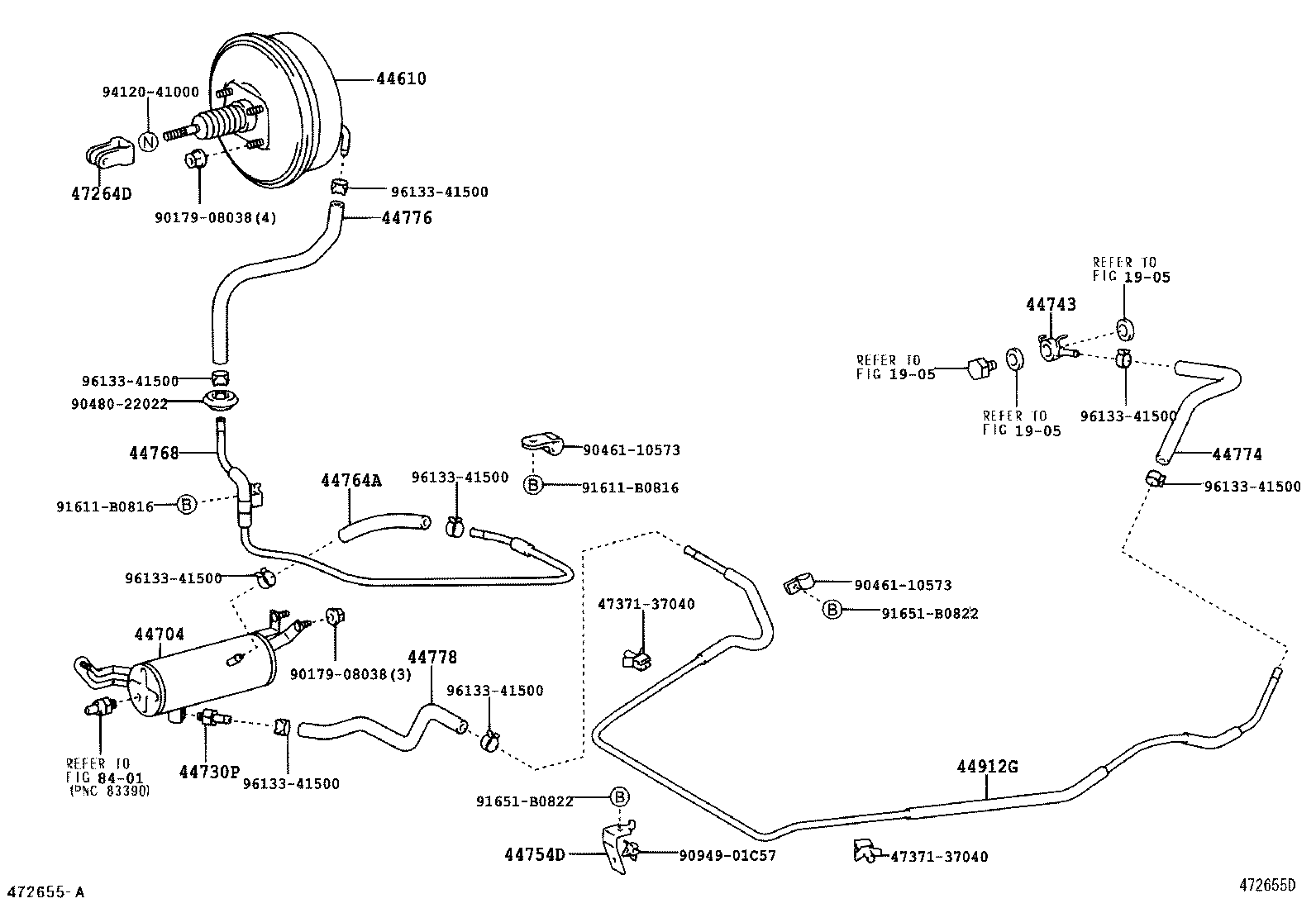

Click highlighted areas on diagram

diagram 1905 1905 1905 44610 44704 44730P 44743 44754D 44764A 44768 44774 44776 44778 44912G 47264D 4737137040 4737137040 8401 9017908038 9017908038 9046110573 9046110573 9048022022 9094901C57 91611B0816 91611B0816 91651B0822 91651B0822 9412041000 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-25310

LY235..ST;KDY22#,23#,25#,26#,LY230..ARL,EUR,SA

 1
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-25140

KDY220,230,250,LY220,230..RHD

 1
44704-25160

KDY22#,23#,25#,LY220,230..RHD

 1
44730P - VALVE ASSY, VACUUM CHECK, NO.1
44730-60050

KDY22#,23#,25#,26#,LY22#,23#

 1
44743 - UNION(FOR VACUUM PUMP)
90405-09175

KDY22#,23#,25#,26#

 1
44754D - BRACKET, VACUUM TUBE, NO.2
44754-25040

LY225,235;KDY22#,23#,25#..RHD

 1
44764A - HOSE, BOOSTER VACUUM
90445-17141

LY225,235..LHD;KDY22#,23#,25#,LY220,230..RHD

 1
44768 - TUBE, BOOSTER VACUUM
44768-25080

KDY22#,23#,25#,LY220,230..RHD..(ARL,EUR)

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-25090

KDY220,230,250,260

 1
44774-25091

KDY22#,23#,25#,26#

 1
44776 - HOSE, BRAKE BOOSTER
44776-25040

KDY22#,23#,25#,LY22#,23#..RHD

 1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-25050

KDY22#,23#,25#,LY220,230..RHD

 1
44778-25020

KDY220,230,250,LY220,230..RHD

 1
44912G - TUBE, 3 WAY TO MAGNETIC VALVE
44912-25060

KDY220,230,250..RHD

 1
44912-25140

KDY22#,23#,25#..RHD

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-25020

KDY22#,23#,25#,26#,LY22#,23#

 1
Common parts
47371-37040
90179-08038
90461-10573
90480-22022
90949-01C57
91611-B0816
91651-B0822
94120-41000
96133-41500
Linked diagrams
1905
8401
