Toyota Dyna KDY231 RADIATOR GRILLE

KDY231R-TLMKY (2006)

Toyota Dyna

Production Sep 2006 - Sep 9999

Engine 1KDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

Click highlighted areas on diagram

GRILLE=WITHOUT(EMBLEM)

Part #	Description	Period	Qty
53111 - GRILLE, RADIATOR
53111-37710A0	LY225,23# WHITE,058	09/2007 - 10/2016	1
53111-37710J0	LY225,23# BLUE,8P0	09/2007 - 10/2016	1
53111-37A01J1	KDY221,231,LY23# BLUE,8P0	10/2016 - 12/2999	1
53114-37010	KDY221,231..GEN;LY235..LHD..IV3 NO PAINT REQ.,RESIN TYPE (LESS COLOR)	09/2007 - 10/2016	1
53111-37A01B1	KDY221,231 SILVER ME.,199	10/2016 - 12/2999	1
53111-37A01A0	KDY221,231,LY23# WHITE,058	10/2016 - 12/2999	1
53115B - BRACKET, RADIATOR GRILLE
53115-37080	KDY221,231,LY23#	10/2016 - 12/2999	1
53115-37050	LY235..WT;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,GEN	07/2001 - 11/2007	1
53119B - PROTECTOR, RADIATOR GRILLE
53119-37020	LY235..WT;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,GEN	07/2001 - 11/2007	1
53119-37080B0	LY225,23# GRAY,058 ,8P0	09/2007 - 10/2016	1
53119-37080B0	KDY221,231..GEN GRAY,058 ,199 ,8P0	09/2007 - 10/2016	1
53155D - SEAL, RADIATOR GRILLE, NO.1
53155-37010	LY235..WT;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,GEN	07/2001 - 11/2007	2
53155D - SEAL, RADIATOR GRILLE, NO.1
53155-37010	LY235..WT;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,GEN	07/2001 - 11/2007	2
Common parts
90159-60425
90163-50011
90189-05046
90467-10161

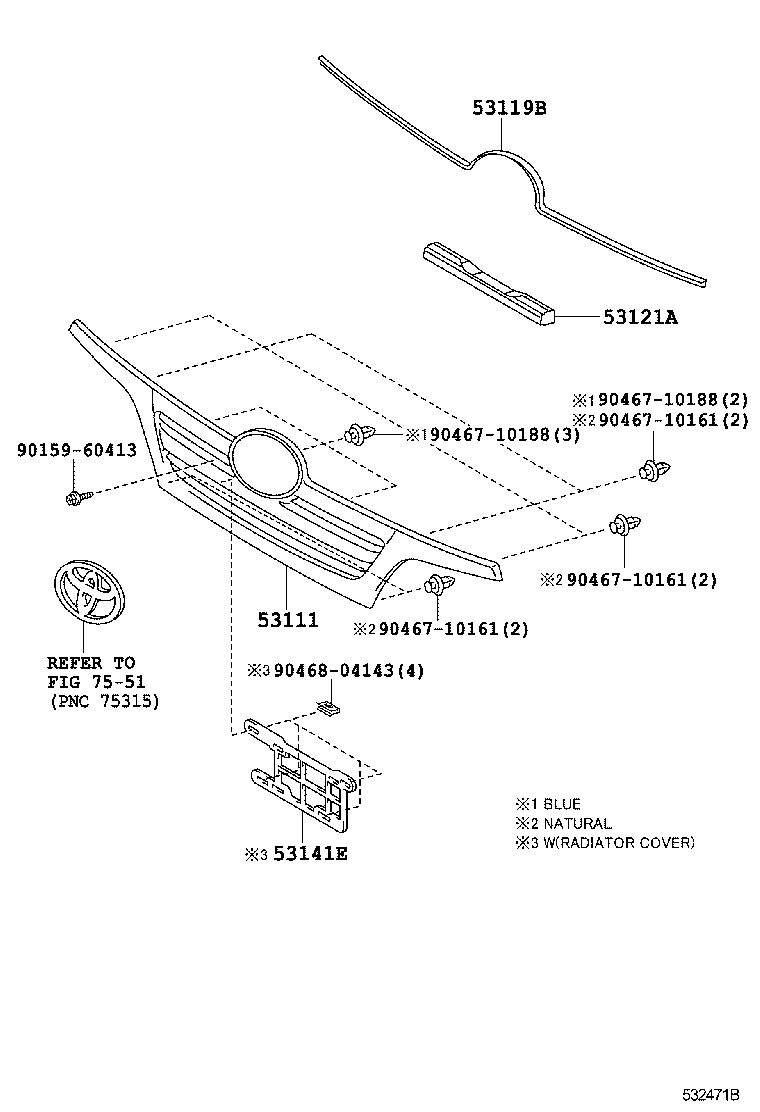

Click highlighted areas on diagram

GRILLE=WITH(EMBLEM)

Part #	Description	Period	Qty
53111 - GRILLE, RADIATOR
53111-37710A0	LY225,23# WHITE,058	09/2007 - 10/2016	1
53111-37710J0	LY225,23# BLUE,8P0	09/2007 - 10/2016	1
53111-37A01J1	KDY221,231,LY23# BLUE,8P0	10/2016 - 12/2999	1
53114-37010	KDY221,231..GEN;LY235..LHD..IV3 NO PAINT REQ.,RESIN TYPE (LESS COLOR)	09/2007 - 10/2016	1
53111-37A01B1	KDY221,231 SILVER ME.,199	10/2016 - 12/2999	1
53111-37A01A0	KDY221,231,LY23# WHITE,058	10/2016 - 12/2999	1
53119B - PROTECTOR, RADIATOR GRILLE
53119-37020	LY235..WT;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,GEN	07/2001 - 11/2007	1
53119-37080B0	LY225,23# GRAY,058 ,8P0	09/2007 - 10/2016	1
53119-37080B0	KDY221,231..GEN GRAY,058 ,199 ,8P0	09/2007 - 10/2016	1
53121A - MOULDING, RADIATOR GRILLE
53121-37020	KDY221,231,LY225,23#..GEN,SA	09/2007 - 10/2016	1
53141E - COVER, RADIATOR, NO.1
53141-37070	LY225,23#	09/2007 - 10/2016	1
Common parts
90159-60413
90467-10161
90467-10188
90468-04143
Linked diagrams
7551

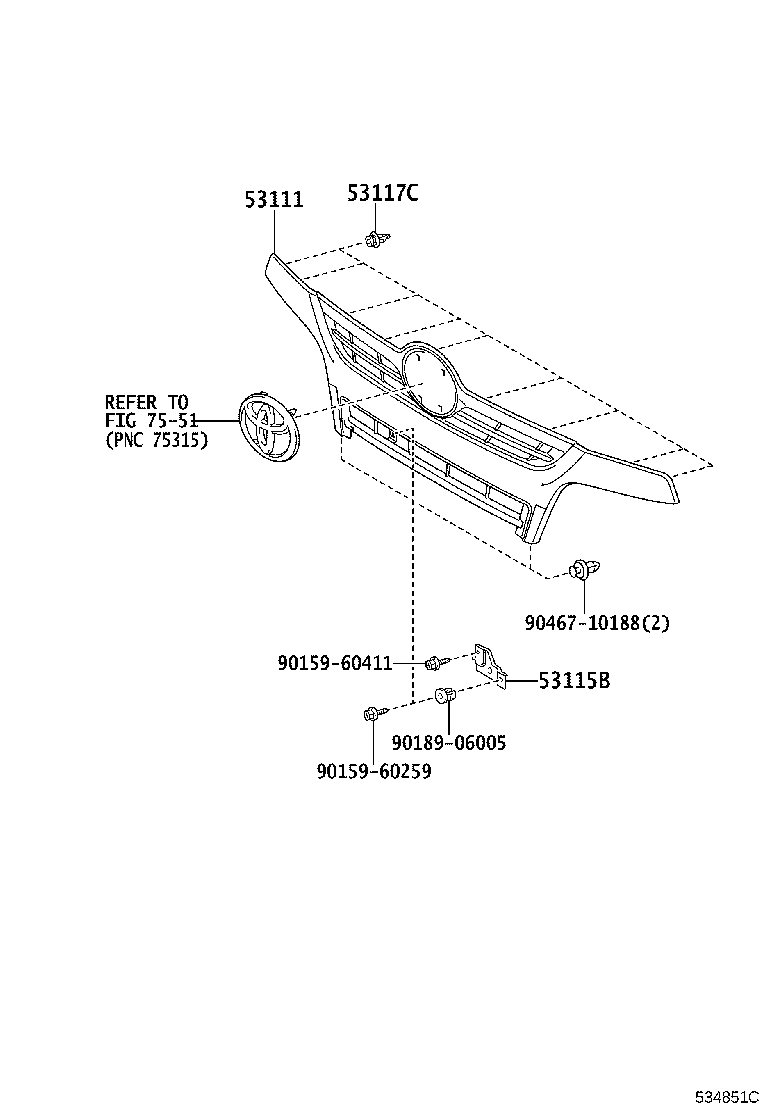

Click highlighted areas on diagram

Part #	Description	Period	Qty
53111 - GRILLE, RADIATOR
53111-37710A0	LY225,23# WHITE,058	09/2007 - 10/2016	1
53111-37710J0	LY225,23# BLUE,8P0	09/2007 - 10/2016	1
53111-37A01J1	KDY221,231,LY23# BLUE,8P0	10/2016 - 12/2999	1
53114-37010	KDY221,231..GEN;LY235..LHD..IV3 NO PAINT REQ.,RESIN TYPE (LESS COLOR)	09/2007 - 10/2016	1
53111-37A01B1	KDY221,231 SILVER ME.,199	10/2016 - 12/2999	1
53111-37A01A0	KDY221,231,LY23# WHITE,058	10/2016 - 12/2999	1
53115B - BRACKET, RADIATOR GRILLE
53115-37080	KDY221,231,LY23#	10/2016 - 12/2999	1
53115-37050	LY235..WT;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,GEN	07/2001 - 11/2007	1
53117C - RETAINER, RADIATOR GRILLE, NO.1
67771-37040	KDY221,231,LY23#	10/2016 - 12/2999	9
Common parts
90159-60259
90159-60411
90189-06005
90467-10188
Linked diagrams
7551
