KDY231R-TLMKY (2006)

Toyota Dyna

Production Sep 2006 - Sep 9999
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0107-1610)LY235..WT ; (0107-1610)KDY22#,23#,25#,26#,LY220,230

Click highlighted areas on diagram

2-SPOKE

diagram 45100 45105 45130 45176 45180 45201P 9014950032 9356054012
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-36140C0

KDY221,231,LY230

2-SPOKE,URETHANE,BLACK,TRIM1#

 1
45100-37090C0

KDY221,231

2-SPOKE,URETHANE,BLACK,TRIM1#

 1
45100-36140B0

LY235..WT;KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY220,230

2-SPOKE,URETHANE,MD.CHARCOAL,TRIM1#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-36030

LY235..WT;KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY220,230

 1
45130 - BUTTON ASSY, HORN
45130-36120B0

LY235..WT;KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY220,230

MD.CHARCOAL,TRIM1#

 1
45130-36120C0

KDY221,231,LY230

BLACK,TRIM1#

 1
45130-37170C0

KDY221,231

BLACK,TRIM1#

 1
45176 - RING, HORN CONTACT
45176-36020

LY235..WT;KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY220,230

 1
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-36030B0

LY235..WT;KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY220,230

MD.CHARCOAL,TRIM1#

 1
45180-37050C0

KDY221,231

BLACK,TRIM1#

 1
45180-36030C0

KDY221,231,LY230

BLACK,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY22#,23#

 1
Common parts
90149-50032
93560-54012

(1610- )

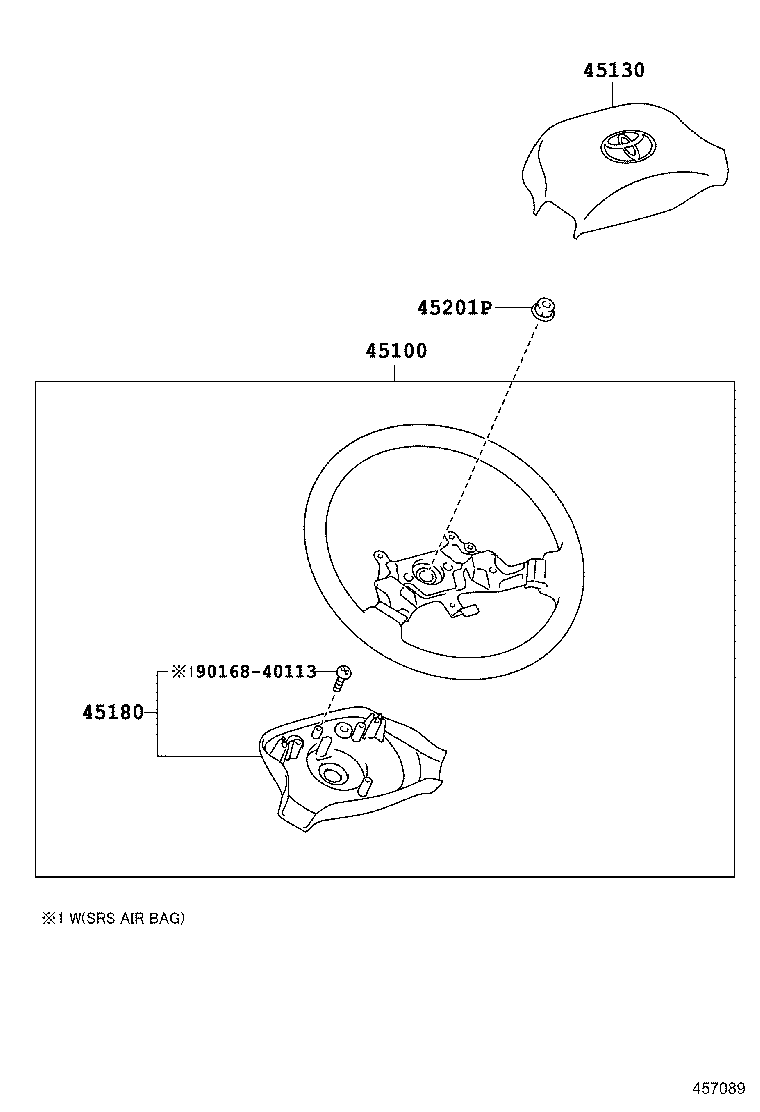

Click highlighted areas on diagram

2-SPOKE

diagram 45100 45130 45180 45201P 9016840113
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-36140C0

KDY221,231,LY230

2-SPOKE,URETHANE,BLACK,TRIM1#

 1
45100-37090C0

KDY221,231

2-SPOKE,URETHANE,BLACK,TRIM1#

 1
45100-36140B0

LY235..WT;KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY220,230

2-SPOKE,URETHANE,MD.CHARCOAL,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-36120B0

LY235..WT;KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY220,230

MD.CHARCOAL,TRIM1#

 1
45130-36120C0

KDY221,231,LY230

BLACK,TRIM1#

 1
45130-37170C0

KDY221,231

BLACK,TRIM1#

 1
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-36030B0

LY235..WT;KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY220,230

MD.CHARCOAL,TRIM1#

 1
45180-37050C0

KDY221,231

BLACK,TRIM1#

 1
45180-36030C0

KDY221,231,LY230

BLACK,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY22#,23#

 1
Common parts
90168-40113
