KDY231L-PBMEYW3 (2006)

Toyota Dyna

Production Sep 2006 - Feb 2015
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0107-1610)KDY23#,LY225,235..LHD ; (0108-1610)KDY22#,25#,26#..LHD..IV3

Click highlighted areas on diagram

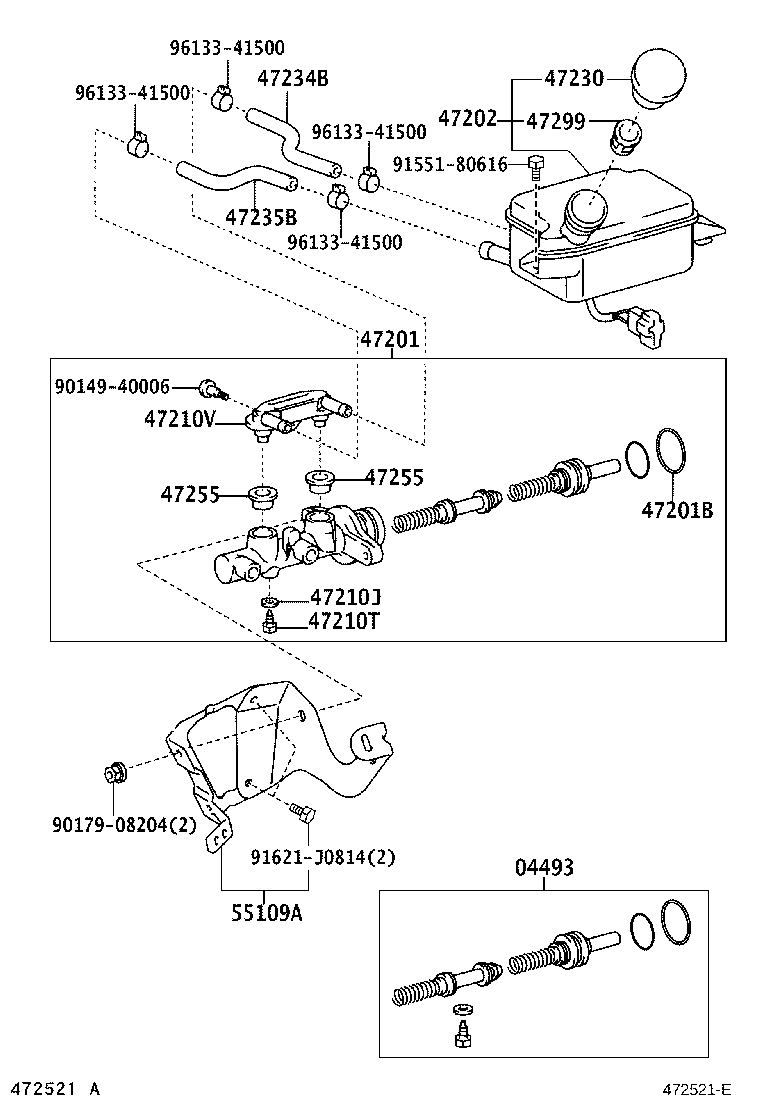

diagram 04493 47201 47201B 47202 47210J 47210T 47210V 47230 47234B 47235B 47255 47255 47299 55109A 9014940006 9017908204 9155180616 91621J0814 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
04493 - CYLINDER KIT, BRAKE MASTER
04493-25100

KDY221..GEN;KDY23#,LY235;KDY22#,25#,26#,LY220,230..IV3

 1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-25290

KDY22#..LHD..IV3;KDY23#,25#,26#,LY225,235..LHD

 1
47201B - RING, O(FOR BRAKE MASTER CYLINDER)
90029-20059

KDY22#,23#,25#,26#,LY22#,23#

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-37071

KDY22#,23#,25#,26#,LY225,235..LHD

 1
47210T - BOLT(FOR BRAKE MASTER CYLINDER)
90109-06077

KDY221..GEN;KDY23#,LY235;KDY22#,25#,26#,LY220,230..IV3

 1
47210V - UNION(FOR BRAKE MASTER CYLINDER)
90029-40408

KDY22#,23#,25#,26#,LY225,235..LHD

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-37020

KDY22#,23#,25#,26#,LY22#,23#

 1
47234B - TUBE, RESERVOIR, NO.1
47234-25090

KDY22#,23#,25#,26#,LY225,235..LHD

 1
47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2
47235-25080

KDY22#,23#,25#,26#,LY225,235..LHD

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

KDY22#,23#,25#,26#,LY22#,23#

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

KDY22#,23#,25#,26#,LY22#,23#

 2
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-28010

KDY22#,23#,25#,26#,LY22#,23#

 1
55109A - SUPPORT SUB-ASSY, BRAKE MASTER CYLINDER
55109-25010

KDY22#,23#,25#,26#,LY22#,23#

 1
Common parts
90149-40006
90179-08204
91551-80616
91621-J0814
96133-41500

(0107-1610)LY22#,235..RHD ; (0107-1610)KDY221,23#,25#,LY230..RHD..WT ; (0312-1610)K

Click highlighted areas on diagram

diagram 04493 47201 47201B 47202 47210J 47210T 47210V 47230 47234B 47235B 47255 47255 47299 55109A 9014940006 9017908204 9155180616 91621J0814 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
04493 - CYLINDER KIT, BRAKE MASTER
04493-25100

KDY221..GEN;KDY23#,LY235;KDY22#,25#,26#,LY220,230..IV3

 1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-25290

KDY22#..LHD..IV3;KDY23#,25#,26#,LY225,235..LHD

 1
47201B - RING, O(FOR BRAKE MASTER CYLINDER)
90029-20059

KDY22#,23#,25#,26#,LY22#,23#

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-37071

KDY22#,23#,25#,26#,LY225,235..LHD

 1
47210T - BOLT(FOR BRAKE MASTER CYLINDER)
90109-06077

KDY221..GEN;KDY23#,LY235;KDY22#,25#,26#,LY220,230..IV3

 1
47210V - UNION(FOR BRAKE MASTER CYLINDER)
90029-40408

KDY22#,23#,25#,26#,LY225,235..LHD

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-37020

KDY22#,23#,25#,26#,LY22#,23#

 1
47234B - TUBE, RESERVOIR, NO.1
47234-25090

KDY22#,23#,25#,26#,LY225,235..LHD

 1
47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2
47235-25080

KDY22#,23#,25#,26#,LY225,235..LHD

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

KDY22#,23#,25#,26#,LY22#,23#

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

KDY22#,23#,25#,26#,LY22#,23#

 2
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-28010

KDY22#,23#,25#,26#,LY22#,23#

 1
55109A - SUPPORT SUB-ASSY, BRAKE MASTER CYLINDER
55109-25010

KDY22#,23#,25#,26#,LY22#,23#

 1
Common parts
90149-40006
90179-08204
91551-80616
91621-J0814
96133-41500
