Toyota Dyna KDY231 ELECTRONIC CONTROLED DIESEL (ECD)

Manufacturers Home
Toyota
EU
DYNA
KDY231L-PBMEYW3 (2006)
8405 - ELECTRONIC CONTROLED DIESEL (ECD)

KDY231L-PBMEYW3 (2006)

Toyota Dyna

Production Sep 2006 - Feb 2015

Engine 1KDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

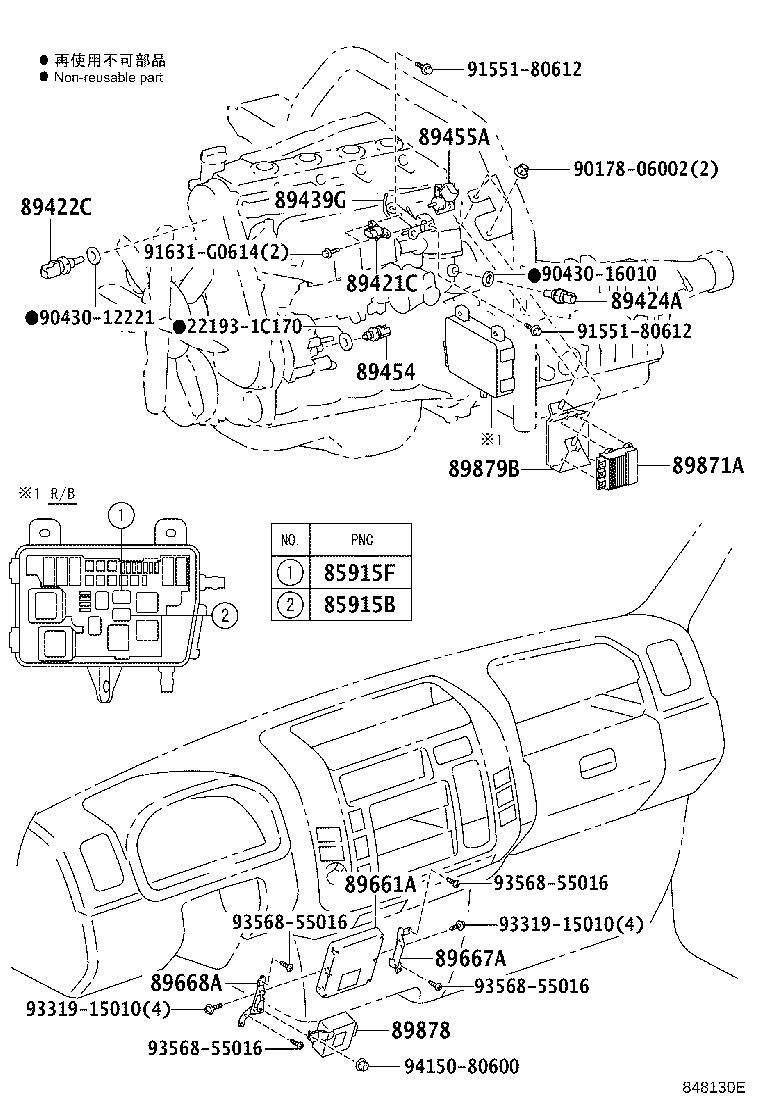

(0609-0907)KDY221,231,251,261..LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
89421C - SENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89421-20200	KDY221,231,251,261	09/2006 - 11/2006	1
89421-71030	KDY221,231,251,261	12/2006 - 12/2999	1
89422C - SENSOR, DIESEL ENGINE WATER TEMPERATURE
89422-33030	KDY221,231,251,261	09/2006 - 12/2999	1
89439G - BRACKET, SENSOR
89431-25010	KDY221,231,251,261..EUR	09/2006 - 05/2009	1
89455A - SENSOR, EGR VALVE POSITION
89455-35020	KDY221,231,251,261..EUR	09/2006 - 09/2011	1
89661A - COMPUTER, ENGINE CONTROL
89661-25170	KDY221,231,251,261 PART NUMBER LABEL=89661-25170	09/2006 - 06/2007	1
89661-25160	KDY221,231,251,261..EUR PART NUMBER LABEL=89661-25160	09/2006 - 06/2007	1
89661-25161	KDY221,231,251,261..EUR PART NUMBER LABEL=89661-25161	06/2007 - 07/2009	1
89661-25300	KDY221,231,251,261..EUR PART NUMBER LABEL=89661-25300	07/2009 - 09/2011	1
89661-25171	KDY221,231,251,261..EUR PART NUMBER LABEL=89661-25171	06/2007 - 07/2009	1
89661-25290	KDY221,231,251,261..EUR PART NUMBER LABEL=89661-25290	07/2009 - 09/2011	1
89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-25090	KDY221,231,251,261..LHD	07/2009 - 02/2015	1
89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-25040	KDY221,231,251,261..EUR	09/2006 - 07/2009	1
89668-25090	KDY221,231,251,261..LHD	07/2009 - 02/2015	1
89871A - DRIVER, INJECTOR
89871-25010	KDY221,231,251,261..EUR	07/2009 - 09/2011	1
89871-71020	KDY221,231,251,261..EUR	09/2006 - 07/2009	1
89871-20080	KDY221,231,251,261..EUR	09/2011 - 12/2999	1
89878 - DRIVER, TURBO MOTOR
89878-25020	KDY221,231,251,261..EUR	09/2006 - 07/2009	1
89878-25040	KDY221,231,251,261..EUR	07/2009 - 09/2011	1
89879B - BRACKET, INJECTOR DRIVER
89879-25020	KDY221,231,251,261..EUR	09/2006 - 09/2011	1
89879-25040	KDY231,251,261..10T,125T	09/2011 - 02/2015	1
Common parts
22193-1C170
90178-06002
90430-12221
90430-16010
91551-80612
91631-G0614
93319-15010
93568-55016
94150-80600

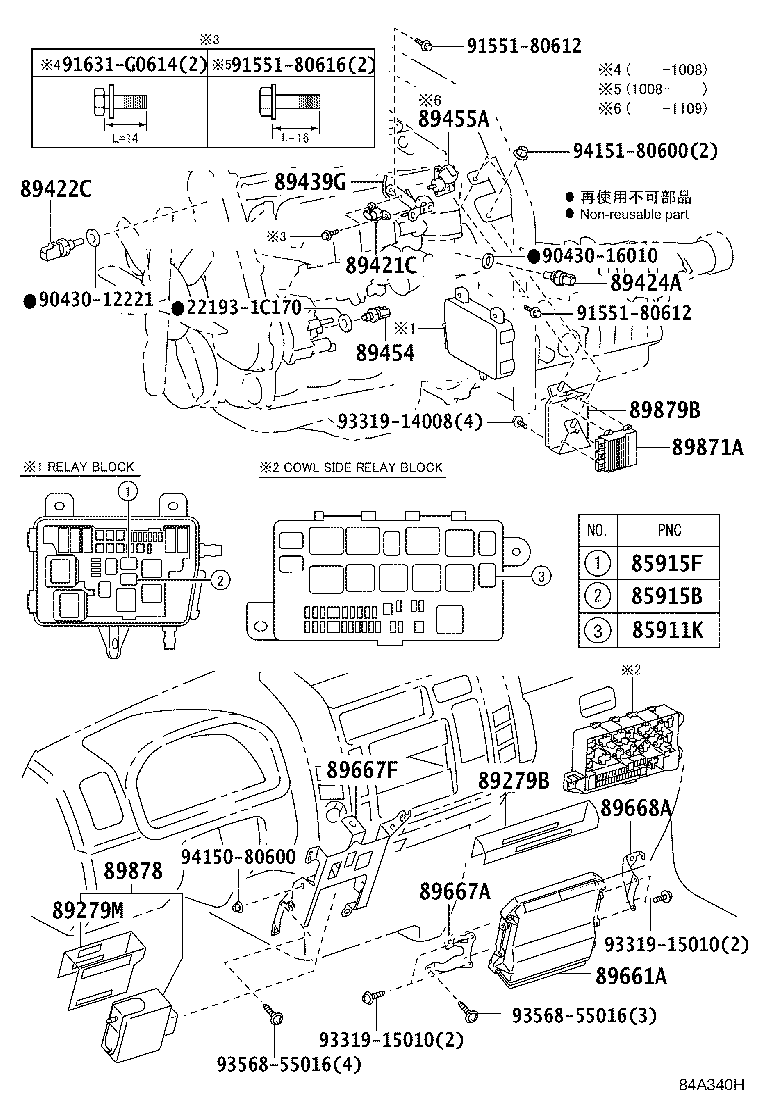

(0907-1502)KDY221,231,251,261..LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
85911K - RELAY, HEATER(FOR AIR FUEL RATIO SENSOR)
90987-02027	KDY221,231,251,261..EUR	09/2011 - 12/2999	1
89279B - COVER, DIESEL ENGINE CONTROL COMPUTOR
89279-25020	KDY221,231,251,261..EUR	07/2009 - 02/2015	1
89279M - COVER
89279-25040	KDY221,231,251,261..EUR	07/2009 - 09/2011	1
89421C - SENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89421-20200	KDY221,231,251,261	09/2006 - 11/2006	1
89421-71030	KDY221,231,251,261	12/2006 - 12/2999	1
89422C - SENSOR, DIESEL ENGINE WATER TEMPERATURE
89422-33030	KDY221,231,251,261	09/2006 - 12/2999	1
89439G - BRACKET, SENSOR
89431-25010	KDY221,231,251,261..EUR	09/2006 - 05/2009	1
89455A - SENSOR, EGR VALVE POSITION
89455-35020	KDY221,231,251,261..EUR	09/2006 - 09/2011	1
89661A - COMPUTER, ENGINE CONTROL
89661-25170	KDY221,231,251,261 PART NUMBER LABEL=89661-25170	09/2006 - 06/2007	1
89661-25160	KDY221,231,251,261..EUR PART NUMBER LABEL=89661-25160	09/2006 - 06/2007	1
89661-25161	KDY221,231,251,261..EUR PART NUMBER LABEL=89661-25161	06/2007 - 07/2009	1
89661-25300	KDY221,231,251,261..EUR PART NUMBER LABEL=89661-25300	07/2009 - 09/2011	1
89661-25171	KDY221,231,251,261..EUR PART NUMBER LABEL=89661-25171	06/2007 - 07/2009	1
89661-25290	KDY221,231,251,261..EUR PART NUMBER LABEL=89661-25290	07/2009 - 09/2011	1
89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-25090	KDY221,231,251,261..LHD	07/2009 - 02/2015	1
89667F - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-25100	KDY221,231,251,261..LHD	07/2009 - 02/2015	1
89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-25040	KDY221,231,251,261..EUR	09/2006 - 07/2009	1
89668-25090	KDY221,231,251,261..LHD	07/2009 - 02/2015	1
89871A - DRIVER, INJECTOR
89871-25010	KDY221,231,251,261..EUR	07/2009 - 09/2011	1
89871-71020	KDY221,231,251,261..EUR	09/2006 - 07/2009	1
89871-20080	KDY221,231,251,261..EUR	09/2011 - 12/2999	1
89878 - DRIVER, TURBO MOTOR
89878-25020	KDY221,231,251,261..EUR	09/2006 - 07/2009	1
89878-25040	KDY221,231,251,261..EUR	07/2009 - 09/2011	1
89879B - BRACKET, INJECTOR DRIVER
89879-25020	KDY221,231,251,261..EUR	09/2006 - 09/2011	1
89879-25040	KDY231,251,261..10T,125T	09/2011 - 02/2015	1
Common parts
22193-1C170
90430-12221
90430-16010
91551-80612
91551-80616
91631-G0614
93319-14008
93319-15010
93568-55016
94150-80600
94151-80600

KDY231L-PBMEYW3 (2006)

(0609-0907)KDY221,231,251,261..LHD

(0907-1502)KDY221,231,251,261..LHD
