KDY231L-PBMEYW3 (2006)
Toyota Dyna

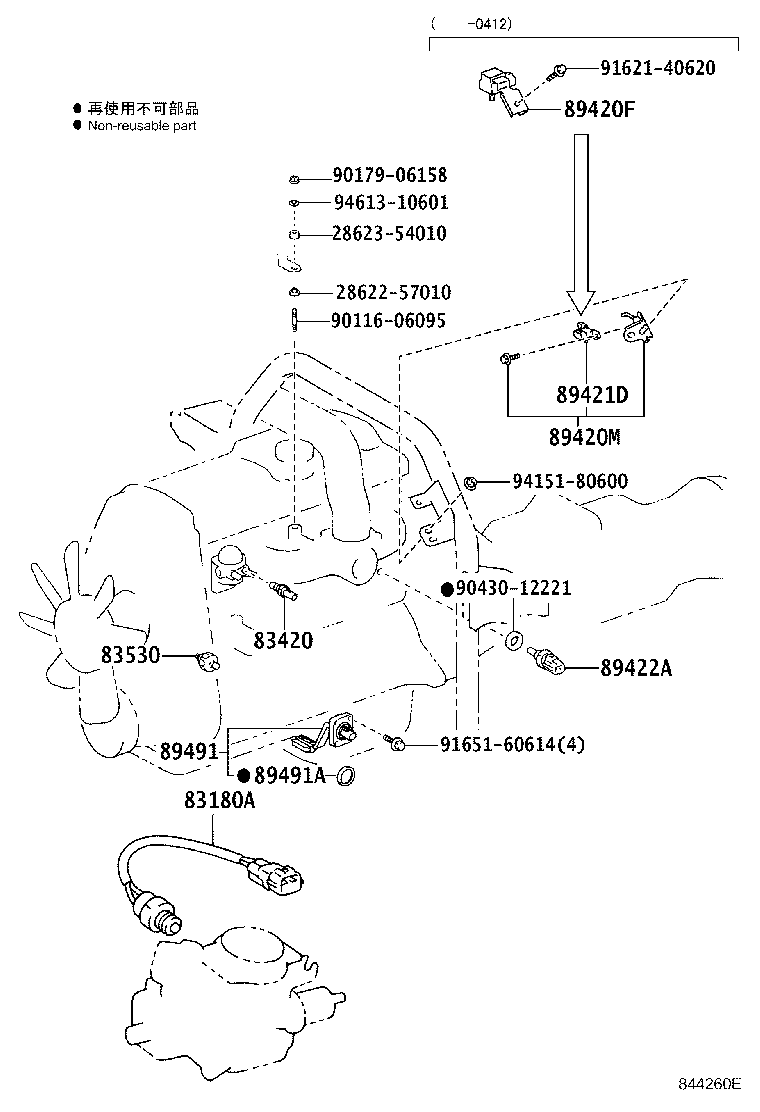

ILLUST NO. 1 OF 8(0107- )LY22#,23#
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16040 |
LY22#,23# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60030 |
LY22#,23# |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-26160 |
LY22#,23# |
1 | ||
| 89491-26180 |
KDY221,231,251,261..EUR |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 89493-60010 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| Common parts | ||||
| 28622-57010 | ||||
| 28623-54010 | ||||
| 90116-06095 | ||||
| 90179-06158 | ||||
| 90430-12221 | ||||
| 91621-40620 | ||||
| 91651-60614 | ||||
| 94151-80600 | ||||
| 94613-10601 | ||||

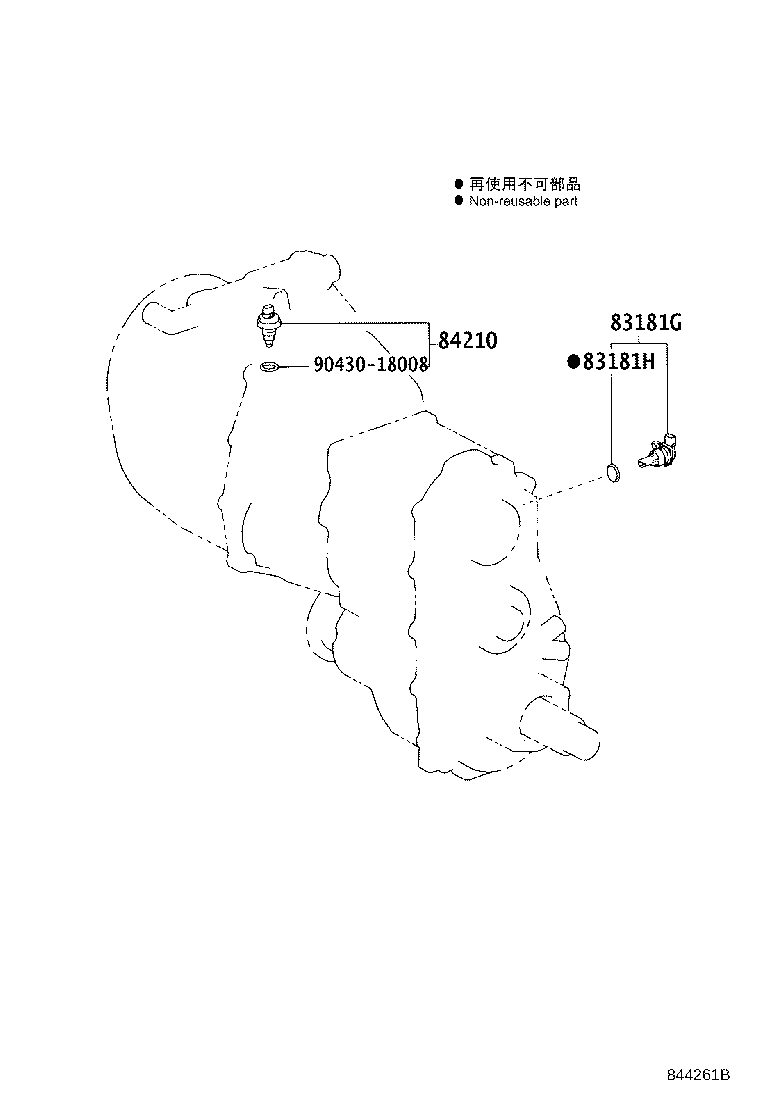

ILLUST NO. 2 OF 8(0107- )
TRANSAXLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83181G - SENSOR, SPEEDOMETER | ||||
| 83181-24060 |
KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T |
1 | ||
| 83181H - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 96711-24030 |
KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| Common parts | ||||
| 90430-18008 | ||||

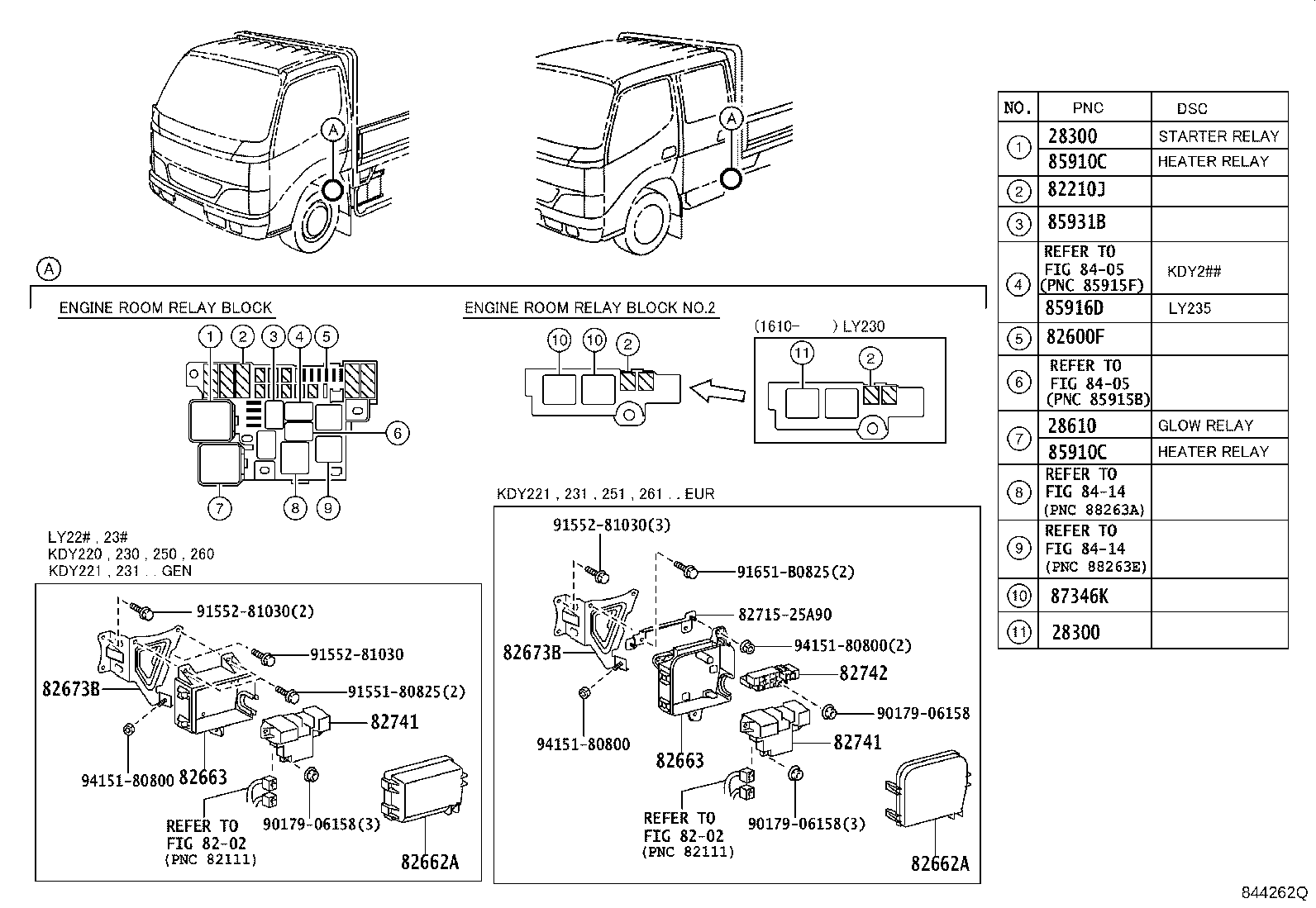

ILLUST NO. 3 OF 8(0107- )
RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 90987-02025 |
1KDFTV,2KDFTV,5L..KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 28300 - RELAY ASSY, STARTER | ||||
| 90987-02025 |
1KDFTV,2KDFTV,5L..KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-54360 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08202 |
KDY22#,23#,25#,26#,LY22#,23# 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08281 |
KDY22#,23#,25#,26#,LY22#,23# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08282 |
KDY22#,23#,25#,26#,LY22#,23# 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08246 |
LY22#,23# 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08286 |
KDY221,231,251,261 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08274 |
KDY22#,23#,25#,26#,LY22#,23# 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08203 |
KDY22#,23#,25#,26#,LY22#,23# 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08223 |
KDY22#,23#,25#,26#,LY22#,23# 30A,TERM.:MALE,PNK |
1 | ||
| 90982-08280 |
KDY22#,23#,25#,26#,LY22#,23# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08228 |
KDY22#,23#,25#,26#,LY22#,23# 50A,TERM.:MALE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
KDY221,231,251,261..EUR 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09007 |
KDY221,231,251,261..EUR 5A,MINI FUSE,TAN |
1 | ||
| 90982-09008 |
KDY220,230,250,260,LY22#,23# 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09009 |
KDY22#,23#,25#,26#,LY220,230 10A,MINI FUSE,RED |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-25240 |
KDY221,231,251,261..EUR |
1 | ||
| 82662-25190 |
KDY221,231,251,261..EUR |
1 | ||
| 82662-25130 |
KDY221,231,251,261..EUR |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-25240 |
KDY221,231,251,261..EUR |
1 | ||
| 82662-25190 |
KDY221,231,251,261..EUR |
1 | ||
| 82662-25130 |
KDY221,231,251,261..EUR |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-25010 |
KDY221,231,251,261..EUR |
1 | ||
| 82663-37070 |
KDY221,231,251,261..EUR |
1 | ||
| 82663-25010 |
KDY221,231,251,261..EUR |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-25010 |
KDY221,231,251,261..EUR |
1 | ||
| 82663-37070 |
KDY221,231,251,261..EUR |
1 | ||
| 82663-25010 |
KDY221,231,251,261..EUR |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-37011 |
KDY221,231,251,261..EUR |
1 | ||
| 82741-37010 |
KDY221,231,251,261..EUR |
1 | ||
| 82741-37010 |
KDY221,231,251,261..EUR |
1 | ||
| 82741-37011 |
KDY221,231,251,261..EUR |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-37011 |
KDY221,231,251,261..EUR |
1 | ||
| 82741-37010 |
KDY221,231,251,261..EUR |
1 | ||
| 82741-37010 |
KDY221,231,251,261..EUR |
1 | ||
| 82741-37011 |
KDY221,231,251,261..EUR |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-25020 |
KDY221,231,251,261..EUR |
1 | ||
| 82741-25020 |
KDY221,231,251,261..EUR |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04010 |
LY225,235..ST;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04010 |
LY225,235..ST;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA |
1 | ||
| 85931B - RELAY, FUEL HEATER | ||||
| 90987-02009 |
KDY221,231,251,261..EUR |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-02025 |
KDY221,231,251,261..EUR |
2 | ||
| Common parts | ||||
| 82715-25A90 | ||||
| 90179-06158 | ||||
| 91551-80825 | ||||
| 91552-81030 | ||||
| 91651-B0825 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8405 | ||||
| 8414 | ||||
ILLUST NO. 4 OF 8(0107-1610)
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02025 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-32010 |
KDY22#,23#,25#,LY225,235..LHD MARK=81980-32010 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08202 |
KDY22#,23#,25#,26#,LY22#,23# 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08281 |
KDY22#,23#,25#,26#,LY22#,23# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08282 |
KDY22#,23#,25#,26#,LY22#,23# 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08246 |
LY22#,23# 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08286 |
KDY221,231,251,261 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08274 |
KDY22#,23#,25#,26#,LY22#,23# 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08203 |
KDY22#,23#,25#,26#,LY22#,23# 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08223 |
KDY22#,23#,25#,26#,LY22#,23# 30A,TERM.:MALE,PNK |
1 | ||
| 90982-08280 |
KDY22#,23#,25#,26#,LY22#,23# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08228 |
KDY22#,23#,25#,26#,LY22#,23# 50A,TERM.:MALE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
KDY221,231,251,261..EUR 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09007 |
KDY221,231,251,261..EUR 5A,MINI FUSE,TAN |
1 | ||
| 90982-09008 |
KDY220,230,250,260,LY22#,23# 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09009 |
KDY22#,23#,25#,26#,LY220,230 10A,MINI FUSE,RED |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-25190 |
KDY221,231,251,261..EUR |
1 | ||
| 82683-25220 |
KDY221,231,251,261..EUR |
1 | ||
| 82683-25240 |
KDY221,231,251,261..EUR |
1 | ||
| 82683-25241 |
KDY221,231,251,261..EUR |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-37020 |
LY22#,23# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04010 |
LY225,235..ST;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA |
1 | ||
| 85915E - RELAY | ||||
| 90987-02028 |
KDY221,231,251,261..EUR |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-25060 |
KDY221,231,251,261..EUR |
1 | ||
| 85980-25070 |
KDY221,231,251,261..LHD |
1 | ||
| Common parts | ||||
| 90099-00930 | ||||
| 91551-80610 | ||||
| 91551-80814 | ||||
| 91554-80614 | ||||
| 91626-40620 | ||||
| 91661-60616 | ||||
| 93319-15010 | ||||
| 93568-55016 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 8405 | ||||
ILLUST NO. 5 OF 8(0107-1610)
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04840 - SWITCH KIT, GENERALLY USE, PULL TYPE | ||||
| 04840-25010 |
KDY221,231,251,261..EUR |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-25060 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10860 |
KDY22#,23#,25#,26#,LY22#,23# 14V 0.91W |
1 | ||
| 84453 - SWITCH, IDLE UP | ||||
| 84453-60010 |
KDY221,231,251,261..EUR |
1 | ||
| 84453A - BULB, IDLE UP SWITCH | ||||
| 84999-10520 |
KDY221,231,251,261..EUR |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-37060 |
LY235..ST;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
LY235..ST;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA 14V 1.4W |
1 | ||
| 84730S - BULB, HEATER BLOWER SWITCH | ||||
| 90010-01154 |
LY235..ST;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA 14V 1.4W,W(CAP) |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12240 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 85510 - SOCKET & RETAINER ASSY, CIGARLIGHTER | ||||
| 85510-16040 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-26010 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| Linked diagrams | ||||
| 5551 | ||||

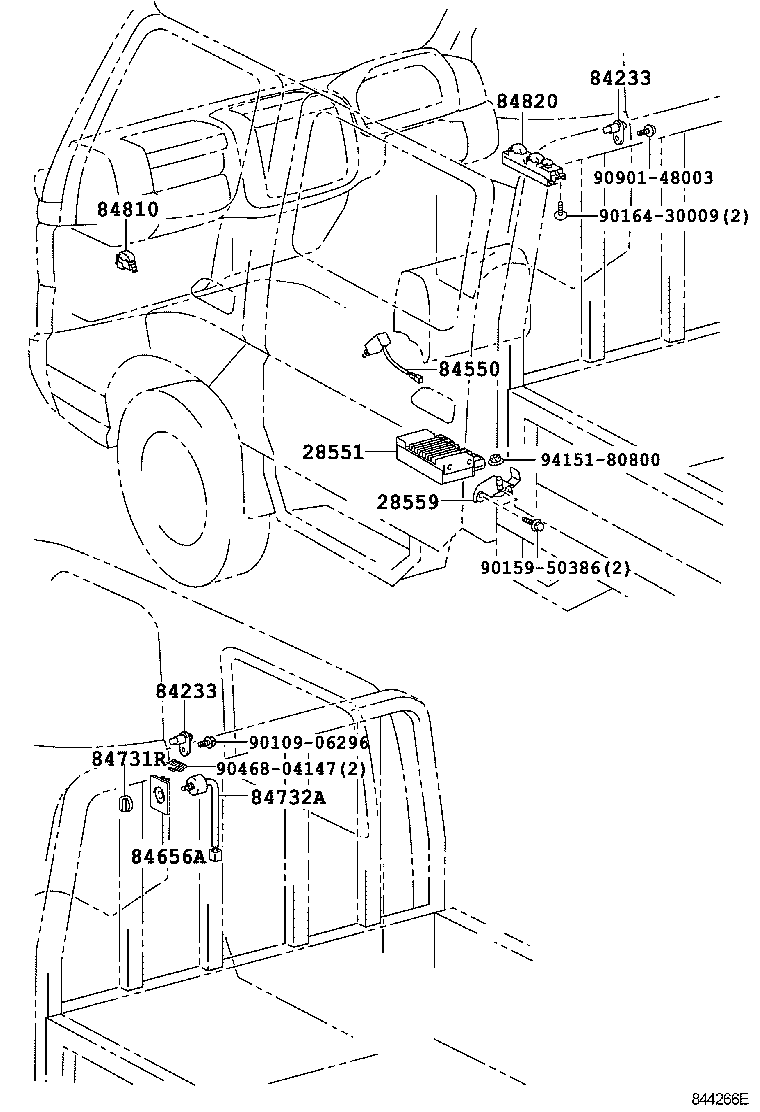

ILLUST NO. 7 OF 8(0107-1610)
DOOR,ROOF & FLOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28551 - CONTROLLER, GLOW PLUG | ||||
| 28551-30010 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 28559 - BRACKET, GLOW PLUG CONTROLLER, NO.1 | ||||
| 28559-30030 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-37021 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-37050 |
LY235..WT;KDY22#,23#,25#,26# |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-37053 |
KDY221,231,251,261 |
1 | ||
| Common parts | ||||
| 90109-06296 | ||||
| 90159-50386 | ||||
| 90164-30009 | ||||
| 90468-04147 | ||||
| 90901-48003 | ||||
| 94151-80800 | ||||

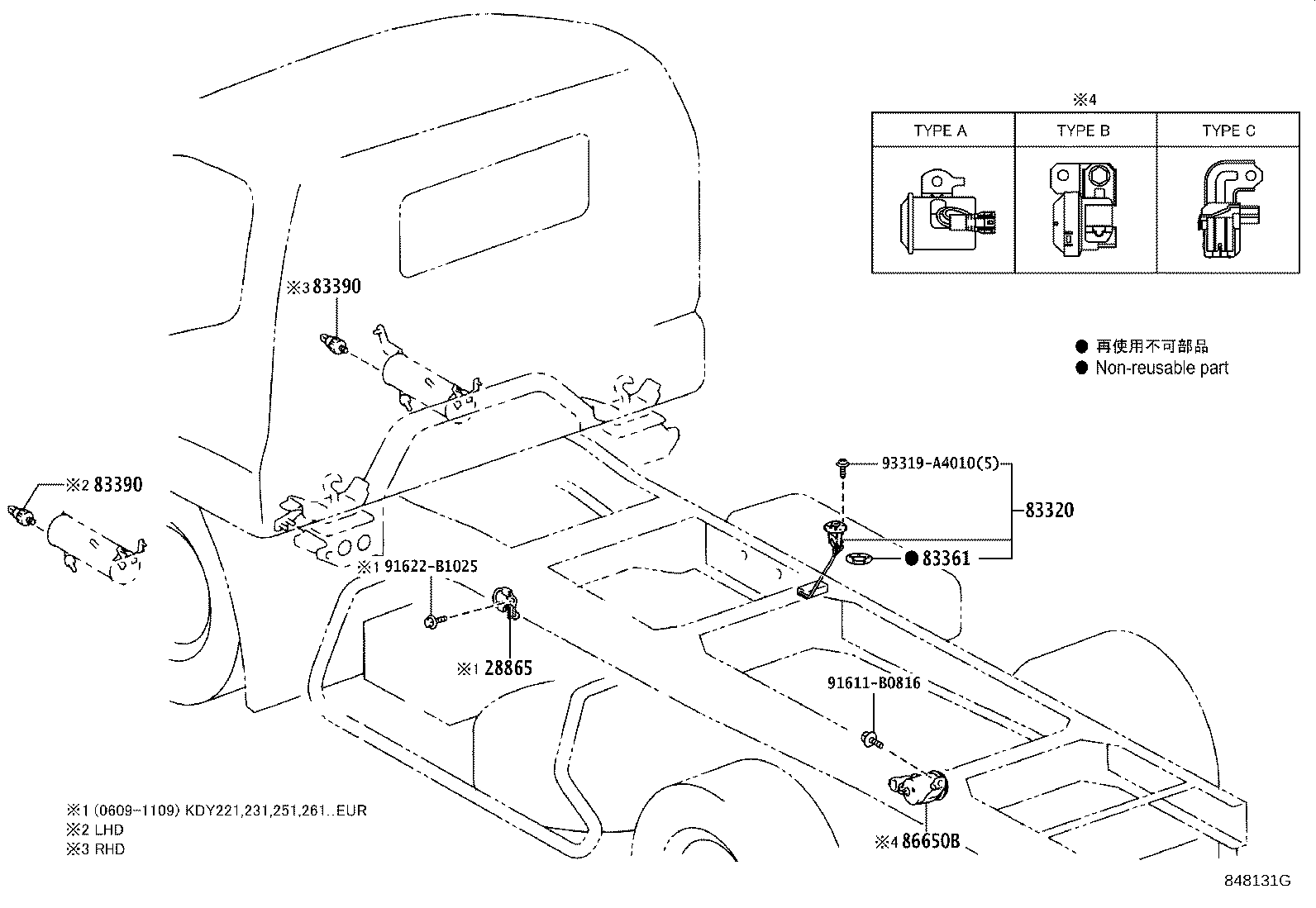

ILLUST NO. 8 OF 8(0107- )
FRAME
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28865 - SENSOR, BATTERY THERMOMETER | ||||
| 28865-30010 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80436 |
KDY221,231,251,261..EUR |
1 | ||
| 83320-80436 |
KDY221,231,251,261..EUR MARK 25041 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 77169-14020 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-12340 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-12340 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 86650B - BUZZER ASSY, REVERSE WARNING | ||||
| 86650-25050 |
LY235..WT;KDY23#..(10T,15T)..IV3;KDY22#,25#,26#,LY220,230..ARL,EUR TYPE A:REFER ILLUST. |
1 | ||
| 86650-25050 |
KDY231..125T TYPE A:REFER ILLUST. |
1 | ||
| Common parts | ||||
| 91611-B0816 | ||||
| 91622-B1025 | ||||
| 93319-A4010 | ||||
ILLUST NO. 1 OF 8(1109- )EUR ; (1301- )KDY221,231..GEN
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-60060 |
KDY221,231,251,261..EUR |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-25031 |
KDY221,231,251,261..EUR |
1 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-25041 |
KDY221,231,251,261..EUR |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-25030 |
KDY221,231,251,261..EUR |
1 | ||
| 89480A - SENSOR ASSY, DIFFERENTIAL PRESSURE | ||||
| 89480-25020 |
KDY221,231,251,261..EUR |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-26160 |
LY22#,23# |
1 | ||
| 89491-26180 |
KDY221,231,251,261..EUR |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 89493-60010 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| Common parts | ||||
| 17561-30030 | ||||
| 17586-30010 | ||||
| 91651-60614 | ||||
| 91651-B0822 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1702 | ||||

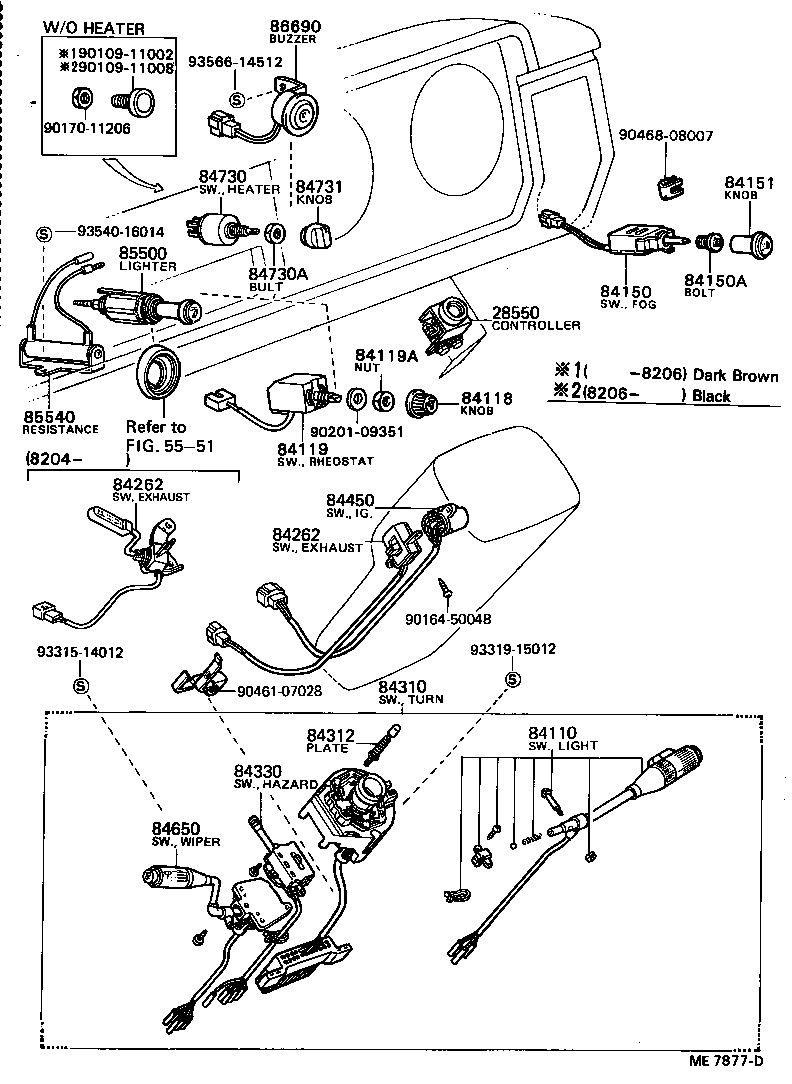

(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90109-11002 | ||||
| 90109-11008 | ||||
| 90164-50048 | ||||
| 90170-11206 | ||||
| 90201-09351 | ||||
| 90461-07028 | ||||
| 90468-08007 | ||||
| 93315-14012 | ||||
| 93319-15012 | ||||
| 93540-16014 | ||||
| 93566-14512 | ||||
| Linked diagrams | ||||
| 5551 | ||||
(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-06011 | ||||
| 90179-06015 | ||||
| 90179-06070 | ||||
| 90179-06078 | ||||
| 91511-40612 | ||||
| 91551-40616 | ||||
| 91611-40612 | ||||
| 91611-40616 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 93319-15008 | ||||
| 93319-15014 | ||||
| 94115-40500 | ||||
| 94120-40800 | ||||
| Linked diagrams | ||||
| 1903 | ||||
| 8406 | ||||
| 8501 | ||||

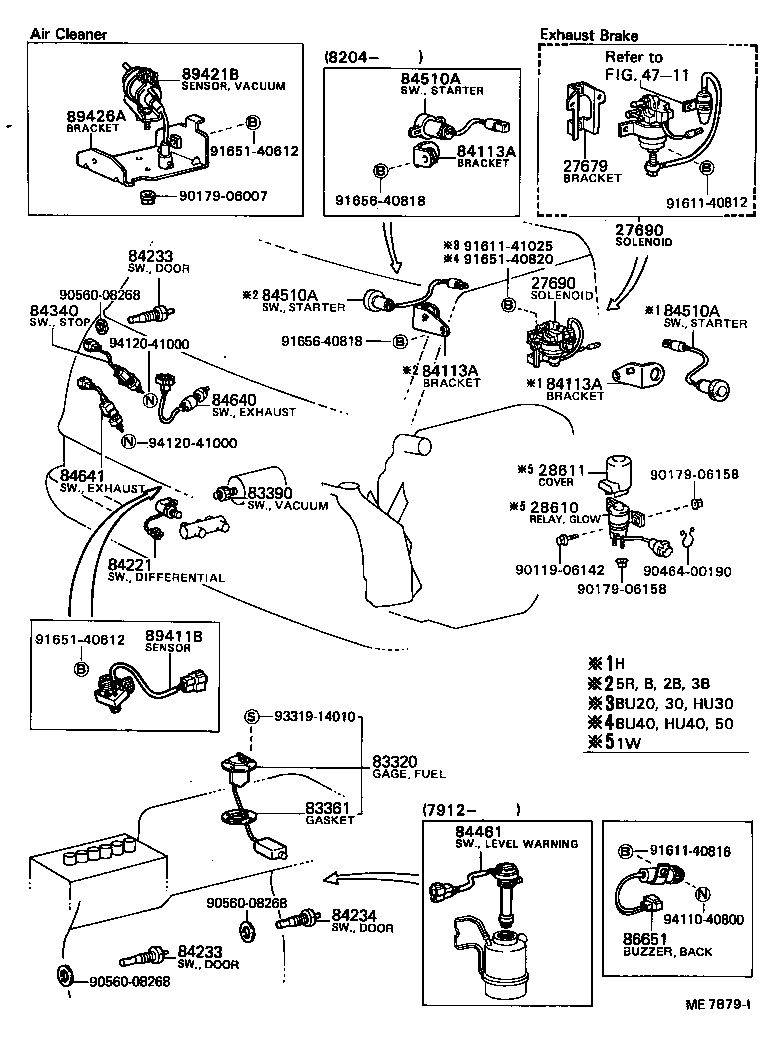

(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06142 | ||||
| 90179-06007 | ||||
| 90179-06158 | ||||
| 90464-00190 | ||||
| 90560-08268 | ||||
| 91611-40812 | ||||
| 91611-40816 | ||||
| 91611-41025 | ||||
| 91651-40612 | ||||
| 91651-40820 | ||||
| 91656-40818 | ||||
| 93319-14010 | ||||
| 94110-40800 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 4711 | ||||

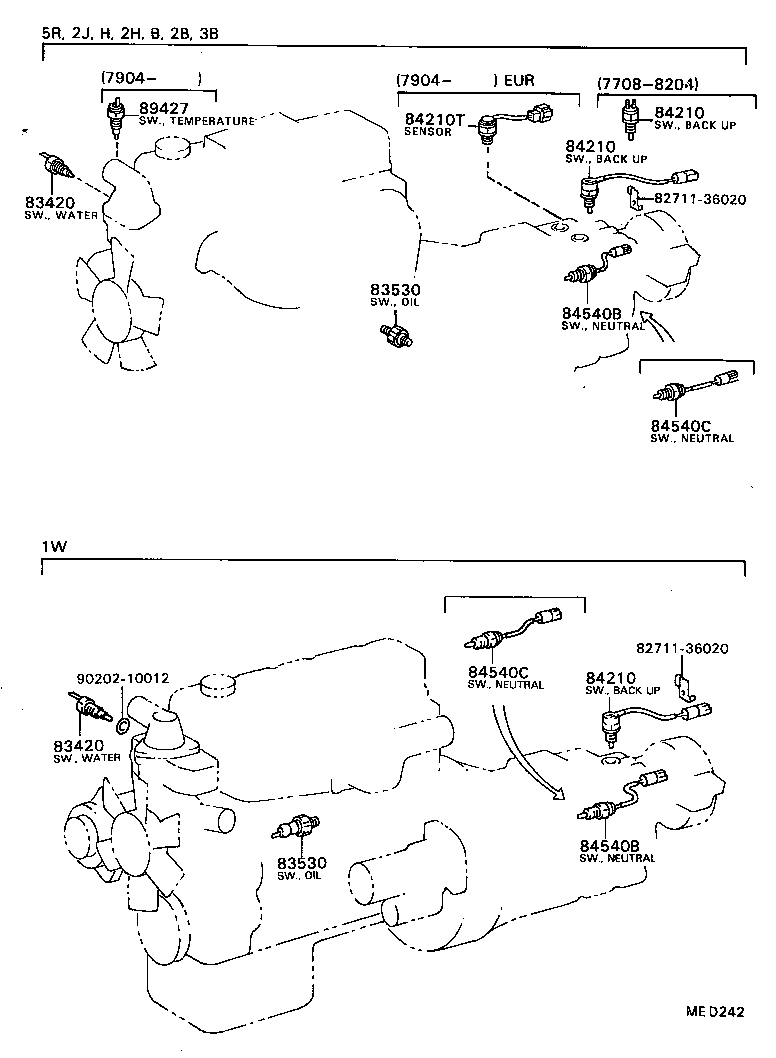

(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-36020 | ||||
| 90202-10012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
