KDY231L-PBMEYW3 (2006)

Toyota Dyna

Production Sep 2006 - Feb 2015
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )KDY22#,23#,25#,26#,LY220,230..IV3

Click highlighted areas on diagram

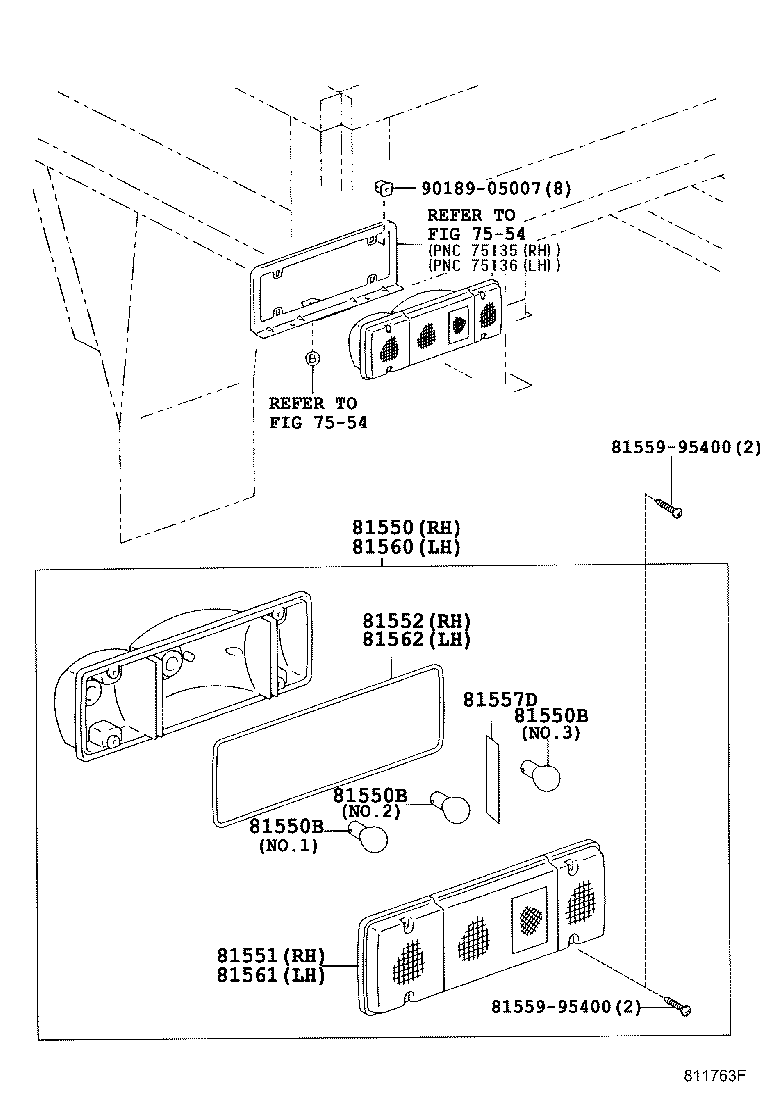

diagram 7554 7554 81550 81550B 81550B 81550B 81551 81552 81557D 8155995400 8155995400 81560 81561 81562 9018905007
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-37042

KDY221,231,251,261,LY230..IV3

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

LY225,235..ST;KDY22#,23#,25#,26#,LY230..EUR,SA

12V 21W,NO.1 & NO.3

 4
99132-21210

LY225,235..ST;KDY22#,23#,25#,26#,LY230..EUR,SA

12V 21/5W,NO.2

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

LY225,235..ST;KDY22#,23#,25#,26#,LY230..EUR,SA

12V 21W,NO.1 & NO.3

 4
99132-21210

LY225,235..ST;KDY22#,23#,25#,26#,LY230..EUR,SA

12V 21/5W,NO.2

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

LY225,235..ST;KDY22#,23#,25#,26#,LY230..EUR,SA

12V 21W,NO.1 & NO.3

 4
99132-21210

LY225,235..ST;KDY22#,23#,25#,26#,LY230..EUR,SA

12V 21/5W,NO.2

 2
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-37062

KDY221,231,251,261,LY230..IV3

 1
Common parts
81559-95400
90189-05007
Linked diagrams
7554
