KDY231L-PBMEYW3 (2006)

Toyota Dyna

Production Sep 2006 - Feb 2015
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0107-1610)EUR

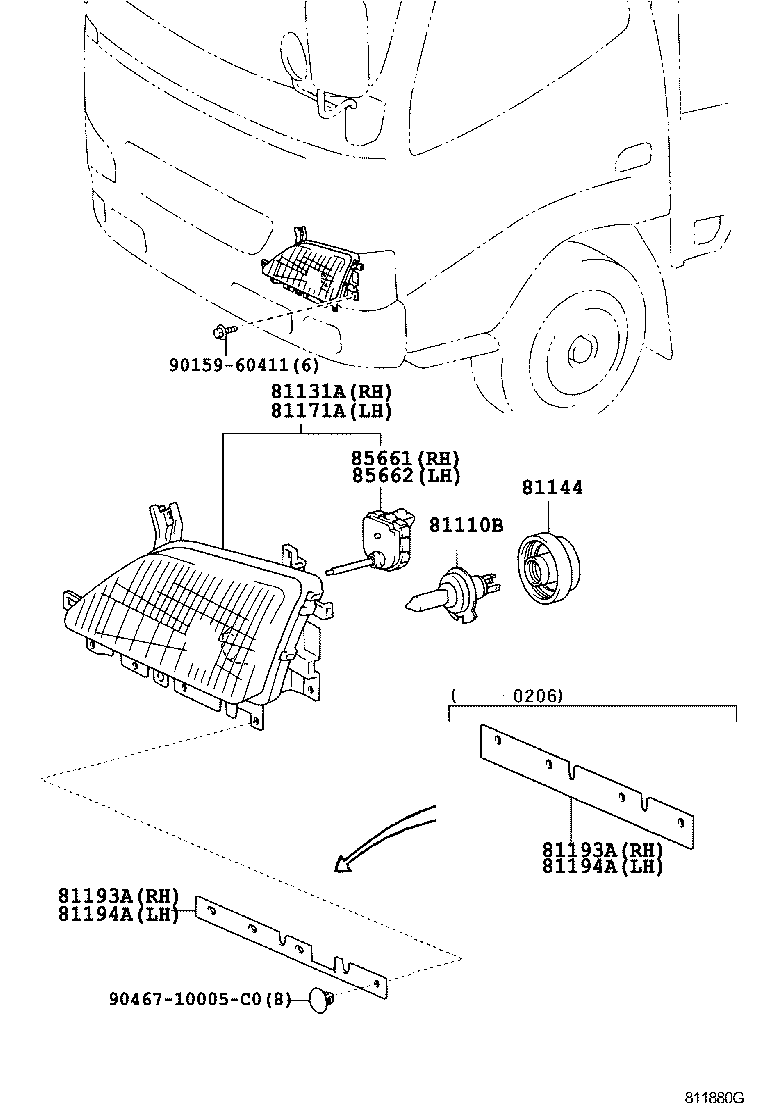

Click highlighted areas on diagram

W(AUTO LEVELING)

diagram 81110B 81131A 81144 81171A 81193A 81193A 81194A 81194A 85661 85662 9015960411 9046710005C0
Part # Description Qty Price
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13058

LY225,235..LHD;KDY22#,23#,25#,26#

12V 60/55W,HALOGEN

 2
81131A - UNIT, HEADLAMP, RH
81130-25161

KDY221,231,251,261..LHD

 1
81144 - COVER, HEADLAMP, NO.1
81139-37110

LY235..LHD;KDY22#,23#,25#,26#..EUR

 2
81171A - UNIT, HEADLAMP, LH
81170-25141

KDY221,231,251,261..LHD

 1
Common parts
90159-60411
90467-10005C0

(7708- )

Click highlighted areas on diagram

diagram 81011 81012 81110B 81110D 81110K 81110K 81110S 81110S 81110T 81110T 81111A 81112 81113 81114 81121 81121 8113122170 8113122170 81150K 81150K 81151A 81152 81153 81154 9018905005 9018905005 9321914008 9321914008
Part # Description Qty Price
Common parts
81131-22170
90189-05005
93219-14008
