KDY231L-PBMEYW3 (2006)

Toyota Dyna

Production Sep 2006 - Feb 2015
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )

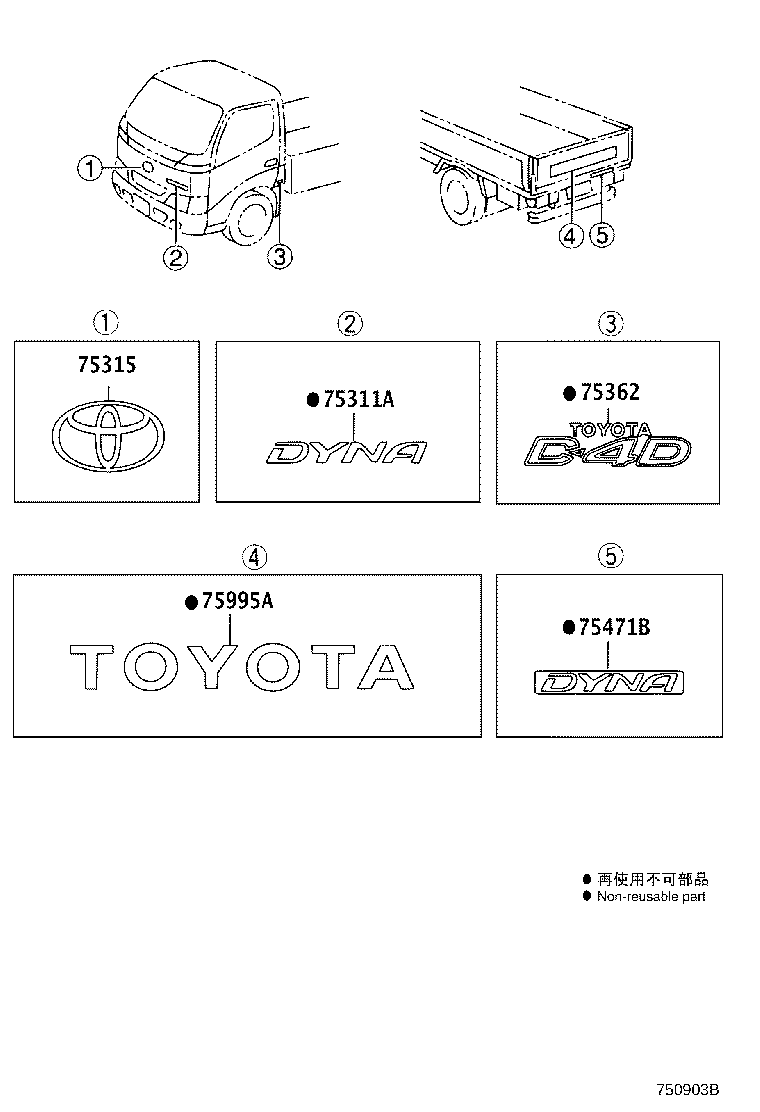

Click highlighted areas on diagram

diagram 75311A 75315 75362 75471B 75995A
Part # Description Qty Price
75311A - PLATE, FRONT NAME, NO.1
75311-25051

LY22#,23#;KDY221,251,261..LHD..IV3;KDY231..LHD..(10T,15T)..IV3

DYNA

 1
75315 - ORNAMENT, RADIATOR GRILLE
75315-25010

LY235..WT;KDY22#,23#,25#,26#,LY220,230..ARL,EUR

 1
75471B - PLATE, REAR BODY NAME, NO.1
75471-25030

KDY22#,23#,25#,26#,LY22#,23#

 1

(7708- )

Click highlighted areas on diagram

diagram 75310 75310 75311 75321 75321 75322 75363 75363 75369 75383 75461 75462A 75463A 75477 9018305039 9018305039 9046804129
Part # Description Qty Price
Common parts
90183-05039
90468-04129
