KDY231L-PBMEYW3 (2006)
Toyota Dyna

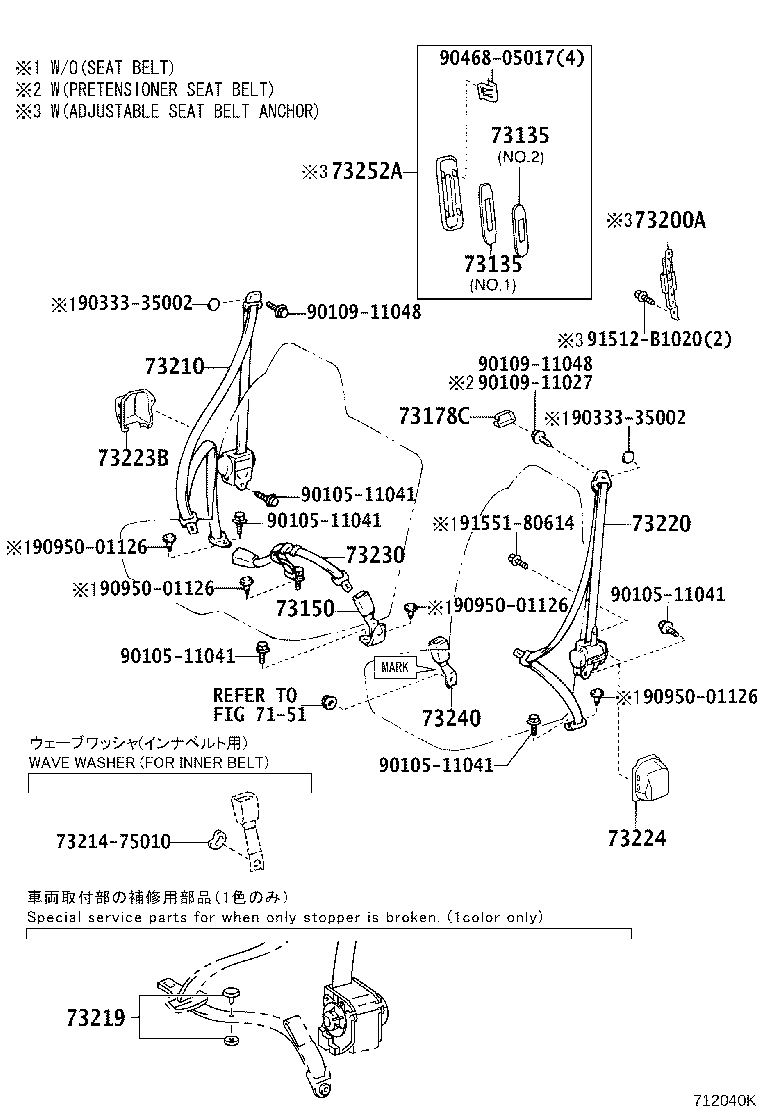

ILLUST NO. 1 OF 2(0107- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73150 - BELT ASSY, FRONT SEAT LAP TYPE, CENTER | ||||
| 73150-37050B0 |
LY225,235..ST;KDY22#,23#,25#,26#,LY220,230..ARL,EUR DK.CHARCOAL,TRIM1# |
1 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-37251B0 |
KDY221,231,251,261,LY225,235..LHD GRAY,TRIM1# |
1 | ||
| 73210-37251B1 |
KDY221,231..GEN;KDY221,231,251,261,LY225,235..LHD GRAY,TRIM1# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
KDY231,251,261..10T,125T BLACK |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73210-37260B1 |
KDY221,231,251,261..LHD W(ADJUSTABLE SEAT BELT ANCHOR),GRAY,TRIM1# |
1 | ||
| 73210-37320B2 |
KDY221,231,251,261..LHD GRAY,TRIM1# |
1 | ||
| 73210-37240B1 |
KDY221,231,251,261..LHD W(PRETENSIONER SEAT BELT),GRAY,TRIM1# |
1 | ||
| 73210-37240B0 |
KDY231,251,261..125T W(PRETENSIONER SEAT BELT),GRAY,TRIM1# |
1 | ||
| 73210-37290B2 |
KDY221,231,251,261..LHD W(PRETENSIONER SEAT BELT),GRAY,TRIM1# |
1 | ||
| 73210-37291B2 |
KDY221,231,251,261..LHD W(PRETENSIONER SEAT BELT),GRAY,TRIM1# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-25031B3 |
KDY221,231,251,261,LY225,235..LHD GRAY,TRIM1# |
1 | ||
| 73230-25031B0 |
KDY221,231,251,261,LY225,235..LHD GRAY,TRIM1# |
1 | ||
| 73230-25030B0 |
KDY22#,23#,25#,26#,LY225,235..LHD GRAY,TRIM1# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-37110B0 |
KDY22#,23#,25#,26#,LY225,235..LHD DK.CHARCOAL,TRIM1# |
1 | ||
| 73252A - COVER, SHOULDER BELT ANCHOR ADJUST | ||||
| 73252-37021B0 |
KDY231,251,261..10T,125T MD.CHARCOAL,TRIM1# |
1 | ||
| Common parts | ||||
| 73214-75010 | ||||
| 90105-11041 | ||||
| 90109-11027 | ||||
| 90109-11048 | ||||
| 90333-35002 | ||||
| 90468-05017 | ||||
| 90950-01126 | ||||
| 91512-B1020 | ||||
| 91551-80614 | ||||
| Linked diagrams | ||||
| 7151 | ||||

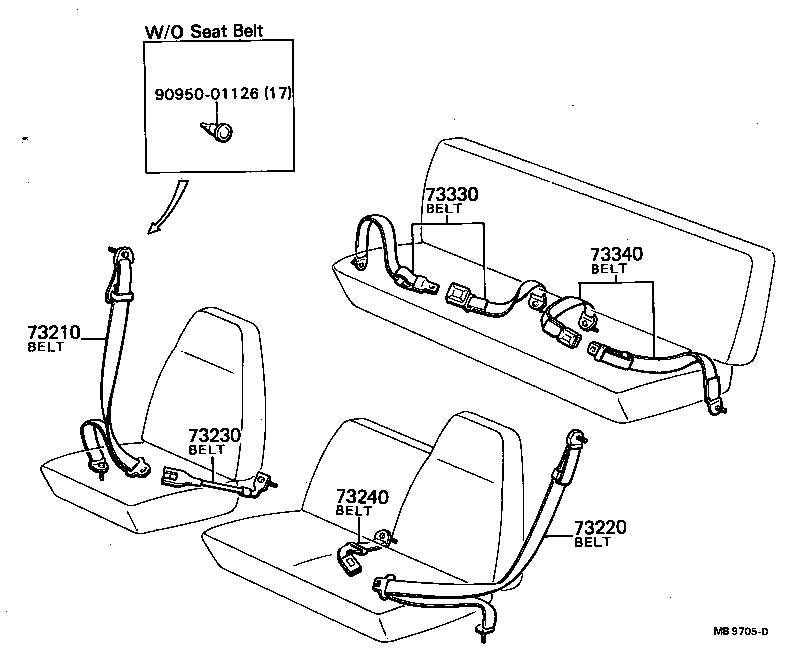

(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90950-01126 | ||||
(7708- )
| Part # | Description | Qty | Price |
|---|
