KDY231L-PBMEYW3 (2006)

Toyota Dyna

Production Sep 2006 - Feb 2015
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

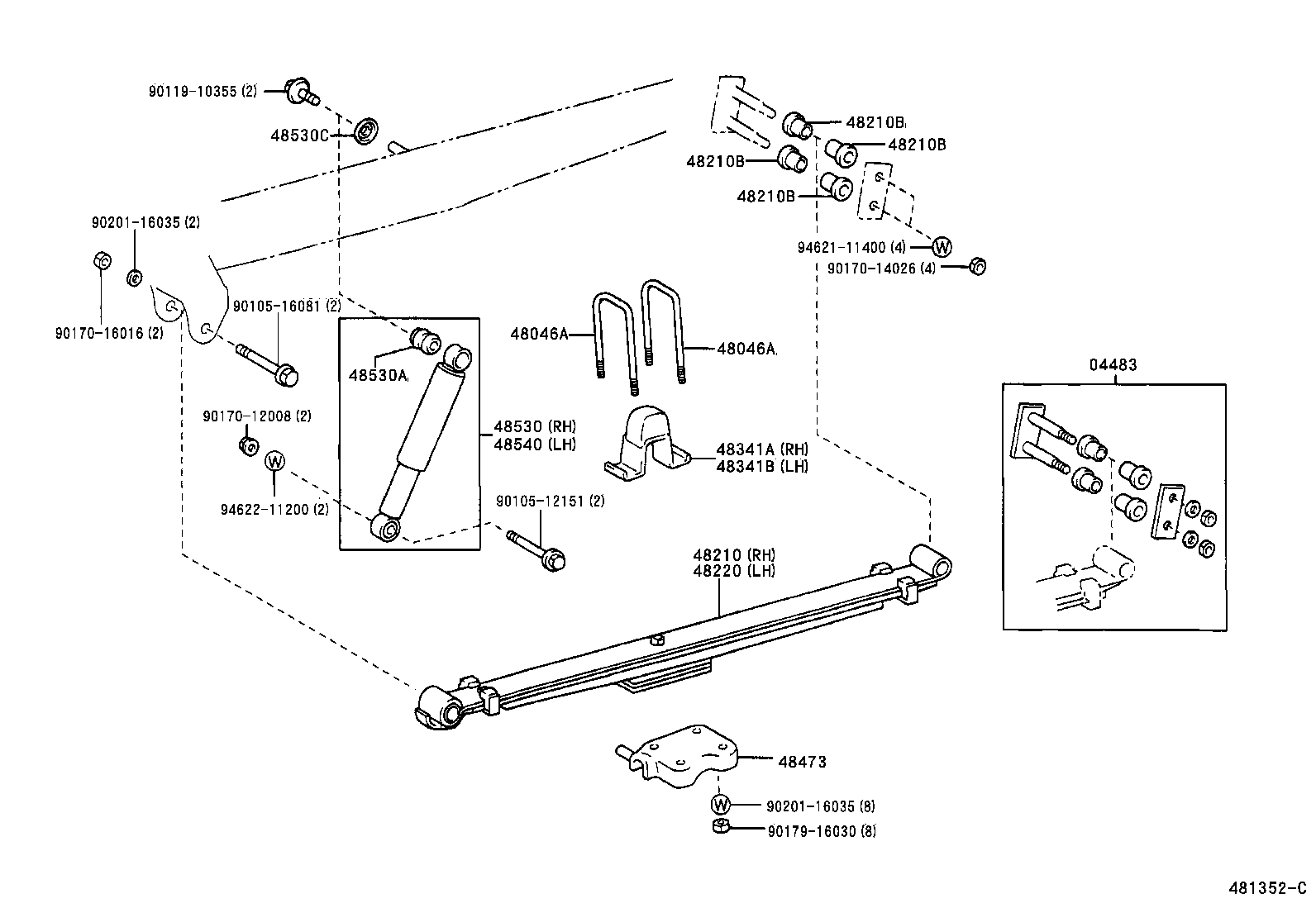

ILLUST NO. 1 OF 2(0107- )WT..IV3

Click highlighted areas on diagram

diagram 04483 48046A 48046A 48210 48210B 48210B 48210B 48210B 48220 48341A 48341B 48473 48530 48530A 48530C 48540 9010512151 9010516081 9011910355 9017012008 9017014026 9017016016 9017916030 9020116035 9020116035 9462111400 9462211200
Part # Description Qty Price
04483 - SHACKLE KIT, REAR SPRING
04483-25030

LY225,235;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA

 2
48046A - BOLT, U(FOR REAR SPRING)
90117-16007

KDY23#,25#,26#,LY230..WT..IV3

L=225

 4
48046A - BOLT, U(FOR REAR SPRING)
90117-16007

KDY23#,25#,26#,LY230..WT..IV3

L=225

 4
48210 - SPRING ASSY, REAR RH
48210-2E340

KDY23#,25#,26#,LY230..WT..IV3

3-LEAF

 1
48210B - BUSH(FOR REAR SPRING PIN)
90385-18023

LY225,235;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA

 8
48210B - BUSH(FOR REAR SPRING PIN)
90385-18023

LY225,235;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA

 8
48210B - BUSH(FOR REAR SPRING PIN)
90385-18023

LY225,235;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA

 8
48210B - BUSH(FOR REAR SPRING PIN)
90385-18023

LY225,235;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA

 8
48220 - SPRING ASSY, REAR LH
48210-2E340

KDY23#,25#,26#,LY230..WT..IV3

3-LEAF

 1
48341A - BUMPER, REAR SPRING, NO.1 RH
48341-25090

KDY23#,25#,26#,LY230..WT..IV3

 1
48341B - BUMPER, REAR SPRING, NO.1 LH
48341-25090

KDY23#,25#,26#,LY230..WT..IV3

 1
48473 - SEAT, REAR SPRING U BOLT
48046-25110

KDY23#,25#,26#,LY230..WT..IV3

 2
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-80228

LY235..ST;KDY23#,25#,26#,LY230..WT..IV3

MARK 48531-25250

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16010

LY225,235..ST;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA

 2
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03004

LY225,235..ST;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA

 2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-80228

LY235..ST;KDY23#,25#,26#,LY230..WT..IV3

MARK 48531-25250

 1
Common parts
90105-12151
90105-16081
90119-10355
90170-12008
90170-14026
90170-16016
90179-16030
90201-16035
94621-11400
94622-11200

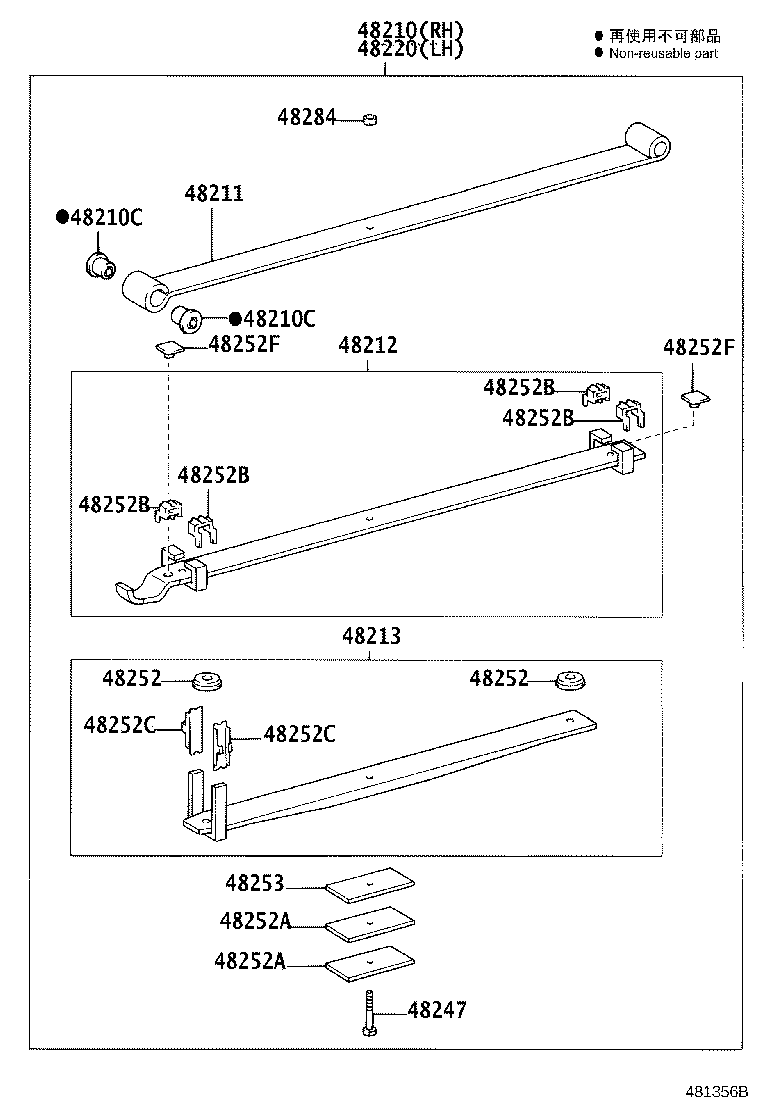

ILLUST NO. 2 OF 2(0107- )WT..IV3

Click highlighted areas on diagram

3-LEAF

diagram 48210 48210C 48210C 48211 48212 48213 48220 48247 48252 48252 48252A 48252A 48252B 48252B 48252B 48252B 48252C 48252C 48252F 48252F 48253 48284
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-2E340

KDY23#,25#,26#,LY230..WT..IV3

3-LEAF

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16026

LY225,235;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA

 4
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16026

LY225,235;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA

 4
48211 - LEAF, REAR SPRING, NO.1
48201-2E340

KDY23#,25#,26#,LY230..WT..IV3

 2
48212 - LEAF, REAR SPRING, NO.2
48202-2E340

KDY23#,25#,26#,LY230..WT..IV3

 2
48213 - LEAF, REAR SPRING, NO.3
48203-2E340

KDY23#,25#,26#,LY230..WT..IV3

 2
48220 - SPRING ASSY, REAR LH
48210-2E340

KDY23#,25#,26#,LY230..WT..IV3

3-LEAF

 1
48247 - BOLT, REAR SPRING, CENTER
48247-25890

KDY23#,25#,26#,LY230..WT..IV3

 2
48252 - SILENCER, REAR SPRING
48252-26401

LY235..WT;KDY22#,23#,25#,26#,LY220,230

 4
48252 - SILENCER, REAR SPRING
48252-26401

LY235..WT;KDY22#,23#,25#,26#,LY220,230

 4
48252A - SPACER, REAR SPRING, NO.2
48216-3B060

KDY23#,25#,26#,LY230..WT..IV3

 4
48252A - SPACER, REAR SPRING, NO.2
48216-3B060

KDY23#,25#,26#,LY230..WT..IV3

 4
48252B - SILENCER, REAR SPRING, NO.1
48252-37380

KDY22#,23#,25#,26#,LY22#,23#

 8
48252B - SILENCER, REAR SPRING, NO.1
48252-37380

KDY22#,23#,25#,26#,LY22#,23#

 8
48252B - SILENCER, REAR SPRING, NO.1
48252-37380

KDY22#,23#,25#,26#,LY22#,23#

 8
48252B - SILENCER, REAR SPRING, NO.1
48252-37380

KDY22#,23#,25#,26#,LY22#,23#

 8
48252F - SILENCER, REAR SPRING, NO.3
48252-26070

KDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA

 4
48252F - SILENCER, REAR SPRING, NO.3
48252-26070

KDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA

 4
48253 - SPACER, REAR SPRING, NO.1
48251-3B720

KDY23#,25#,26#,LY230..WT..IV3

 2
48284 - NUT, REAR SPRING CENTER BOLT
48284-37130

KDY22#,23#,25#,26#,LY22#,23#

 2

(7708- )

Click highlighted areas on diagram

diagram 48210 48210 48210 48210C 48210C 48210C 48211 48211 48211 48212 48212 48212 48213 48213 48213 48214 48214 48214 48215 48215 48215 48216 48217 48220 48220 48220 48241 48241 48241 48242 48242 48242 48247 48247 48247 48261 48261 48261 48262 48262 48262 48263 48263 48263 48264 48264 48264 48265 48265 48265 48266 48281 48281 48281 9411041000 9411041000 9411041000 9511100816 9511100816 9511100816 9511100818 9511100818 9511100818 9511100822 9511100822 9511100822
Part # Description Qty Price
Common parts
94110-41000
95111-00816
95111-00818
95111-00822

(7708- )

Click highlighted areas on diagram

diagram 48210 48210 48210C 48210C 48211 48211 48212 48212 48213 48213 48214 48214 48215 48215 48216 48216 48217 48220 48220 48241 48241 48242 48242 48247 48247 48261 48261 48262 48262 48263 48263 48264 48264 48265 48265 48266 48266 48267 48267 48281 48281 9411041000 9411041000 9511100816 9511100816 9511100818 9511100818 9511100822 9511100822
Part # Description Qty Price
