KDY231L-PBMEYW3 (2006)
Toyota Dyna
Production
Sep 2006
-
Feb 2015
Engine
1KDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

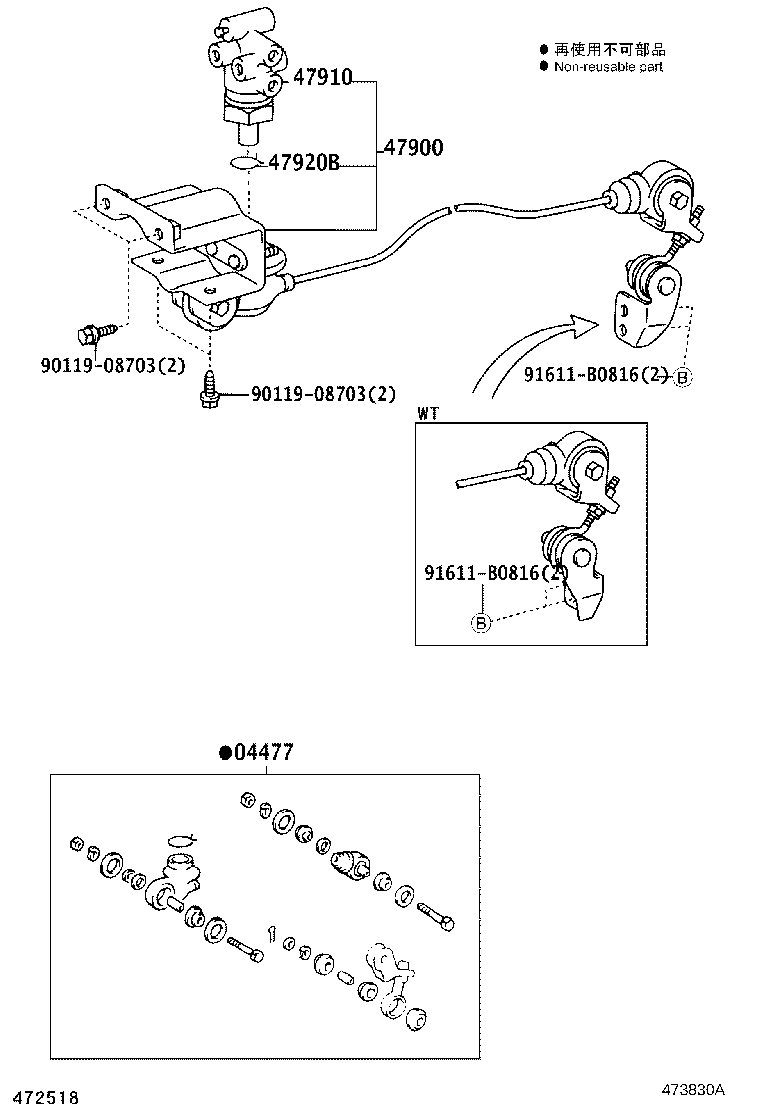

ILLUST NO. 4 OF 4(0107- )LY22#,23# ; (0108- )KDY22#,23#,25#,26#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47900 - VALVE ASSY, LOAD SENSING W/SPRING | ||||
| 47900-25290 |
KDY23#,25#,26#,LY230..WT..IV3 |
1 | ||
| 47910 - VALVE ASSY, LOAD SENSING PROPORTIONING | ||||
| 47910-37090 |
KDY23#,25#,26#,LY230..WT..IV3 |
1 | ||
| 47920B - CLIP(FOR LOAD SENSING VALVE BOOT) | ||||
| 90467-31110 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| Common parts | ||||
| 90119-08703 | ||||
| 91611-B0816 | ||||
(7708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90461-06009 | ||||
| 90461-06487 | ||||
| 90461-08058 | ||||
| 90461-10076 | ||||
| 90461-10625 | ||||
| 90461-12124 | ||||
| 90462-10033 | ||||
| 90480-01047 | ||||
| 90480-08343 | ||||
| 90949-01006 | ||||
| 90949-01019 | ||||
| 90949-01034 | ||||
| 90949-01035 | ||||
| 91611-40812 | ||||
| 91611-40816 | ||||
| 91611-40820 | ||||
| 91611-60614 | ||||
| 91615-41040 | ||||
| 91616-40820 | ||||
| 91651-40820 | ||||
| 91651-60614 | ||||
| 91661-40614 | ||||
| 94110-40800 | ||||
| 96221-20905 | ||||
| 96221-20906 | ||||
| 96224-20966 | ||||
