KDY231L-PBMEYW3 (2006)

Toyota Dyna

Production Sep 2006 - Feb 2015
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

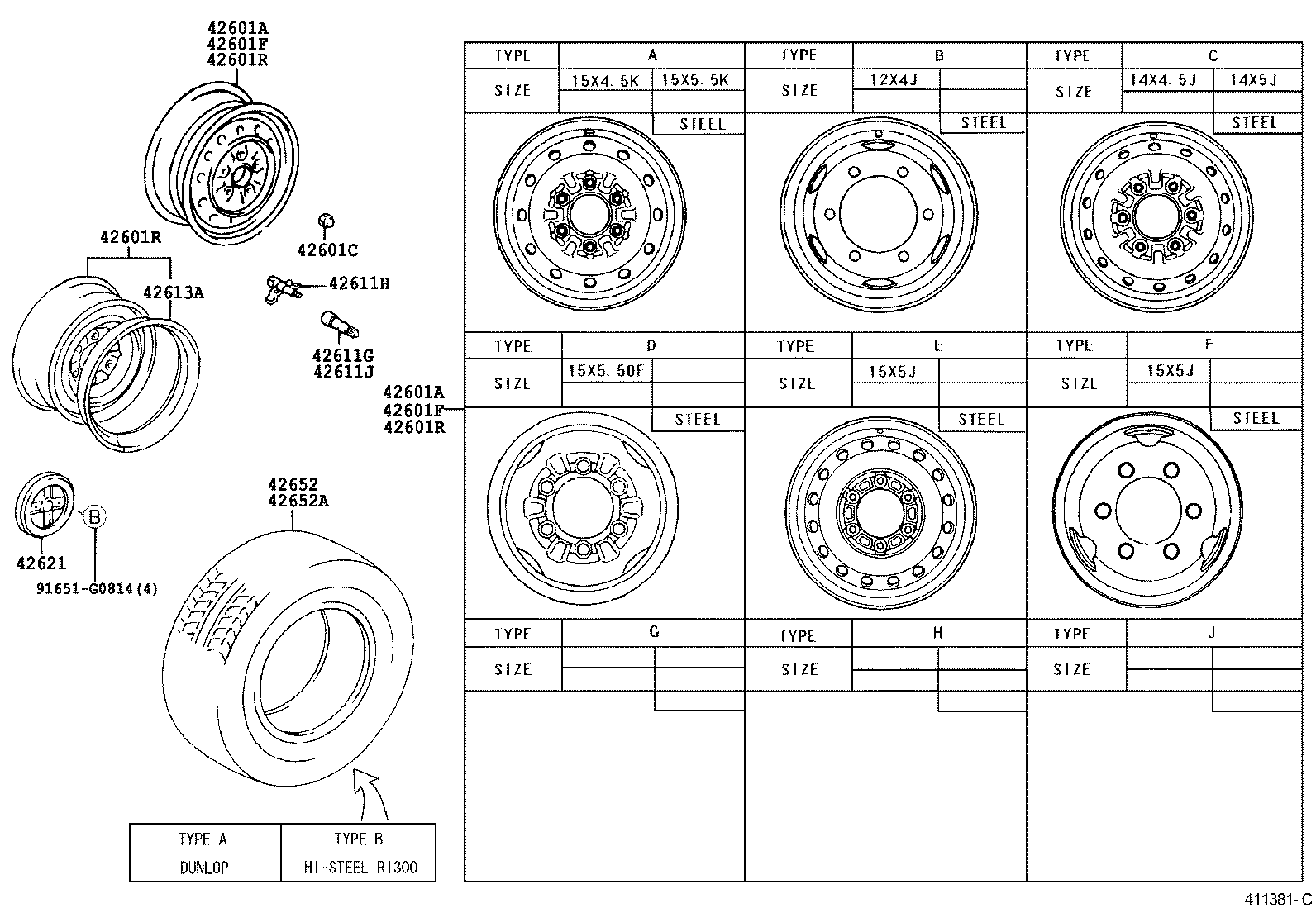

ILLUST NO. 1 OF 2(0107- )

Click highlighted areas on diagram

diagram 42601A 42601A 42601C 42601F 42601F 42601R 42601R 42601R 42611G 42611H 42611J 42613A 42621 42652 42652A 91651G0814
Part # Description Qty Price
42601A - WHEEL, DISC (FOR SPARE)
42611-25060

KDY23#,25#,26#,LY230..WT..IV3

15X5J, #,TYPE F:REFER TO ILLUSTRATION

 1
42601A - WHEEL, DISC (FOR SPARE)
42611-25060

KDY23#,25#,26#,LY230..WT..IV3

15X5J, #,TYPE F:REFER TO ILLUSTRATION

 1
42601C - NUT, HUB (FOR AXLE)
90942-01010

KDY23#,25#,26#,LY230..WT..IV3

REAR RH

 6
90942-01011

KDY23#,25#,26#,LY230..WT..IV3

REAR LH

 6
90942-01012

KDY23#,25#,26#,LY230..WT..IV3

FRONT RH

 6
90942-01013

KDY23#,25#,26#,LY230..WT..IV3

FRONT LH

 6
42601F - WHEEL, DISC (FOR FRONT)
42611-25060

KDY23#,25#,26#,LY230..WT..IV3

15X5J, #,TYPE F:REFER TO ILLUSTRATION

 2
42601F - WHEEL, DISC (FOR FRONT)
42611-25060

KDY23#,25#,26#,LY230..WT..IV3

15X5J, #,TYPE F:REFER TO ILLUSTRATION

 2
42601R - WHEEL, DISC (FOR REAR)
42611-25060

KDY23#,25#,26#,LY230..WT..IV3

15X5J, #,TYPE F:REFER TO ILLUSTRATION

 4
42601R - WHEEL, DISC (FOR REAR)
42611-25060

KDY23#,25#,26#,LY230..WT..IV3

15X5J, #,TYPE F:REFER TO ILLUSTRATION

 4
42601R - WHEEL, DISC (FOR REAR)
42611-25060

KDY23#,25#,26#,LY230..WT..IV3

15X5J, #,TYPE F:REFER TO ILLUSTRATION

 4
42611G - VALVE (FOR TUBELESS TIRE)
90942-05026

KDY23#,25#,26#,LY230..WT..IV3

 6
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05026

KDY23#,25#,26#,LY230..WT..IV3

 1
Common parts
91651-G0814

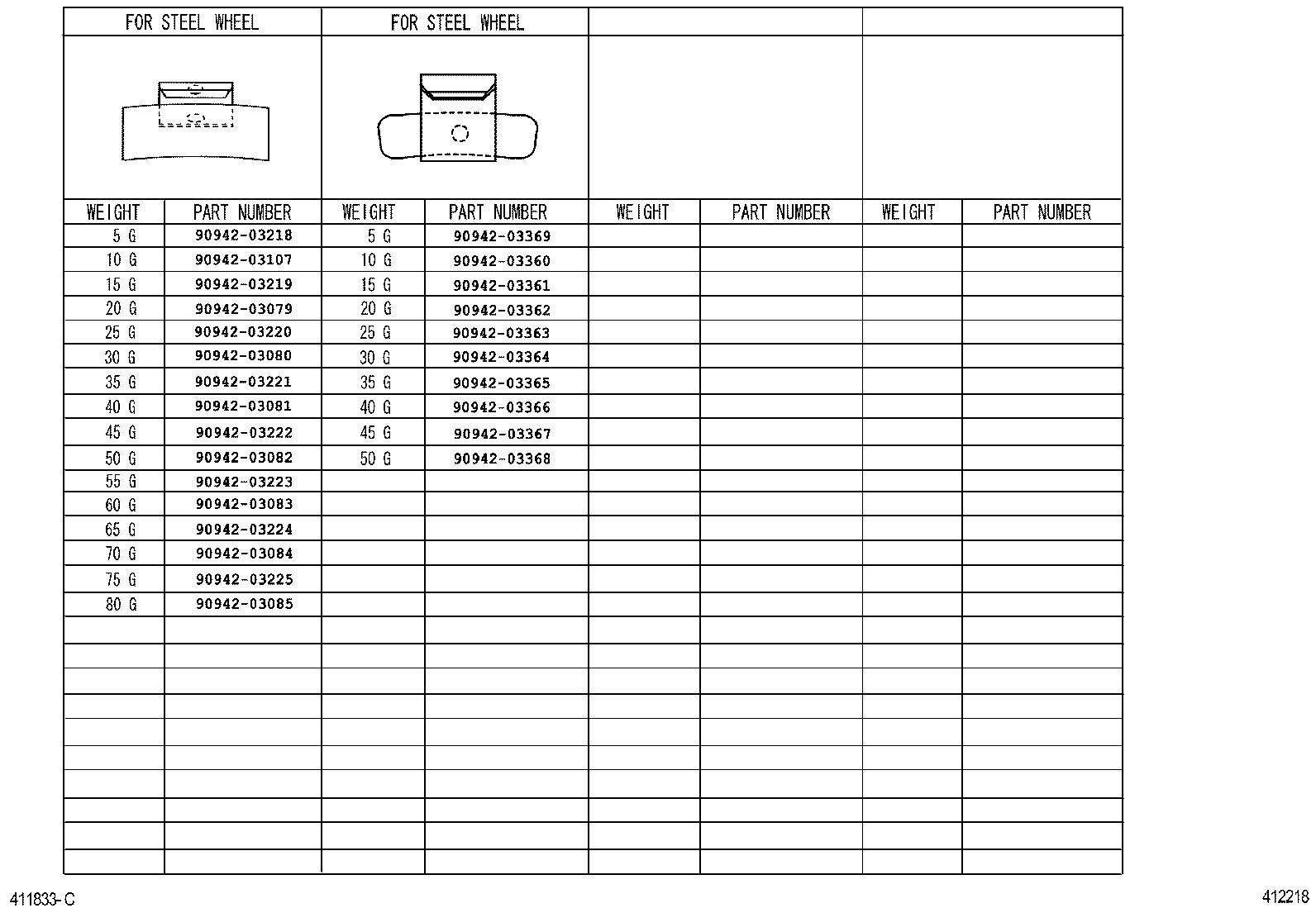

ILLUST NO. 2 OF 2(0107- )

Click highlighted areas on diagram

diagram 9094203079 9094203080 9094203081 9094203082 9094203083 9094203084 9094203085 9094203107 9094203218 9094203219 9094203220 9094203221 9094203222 9094203223 9094203224 9094203225 9094203360 9094203361 9094203362 9094203363 9094203364 9094203365 9094203366 9094203367 9094203368 9094203369
Part # Description Qty Price
Common parts
90942-03079
90942-03080
90942-03081
90942-03082
90942-03083
90942-03084
90942-03085
90942-03107
90942-03218
90942-03219
90942-03220
90942-03221
90942-03222
90942-03223
90942-03224
90942-03225
90942-03360
90942-03361
90942-03362
90942-03363
90942-03364
90942-03365
90942-03366
90942-03367
90942-03368
90942-03369

(7708- )

Click highlighted areas on diagram

diagram 42601C 42601C 42601D 42601F 42601G 42601R 42601R 42601R 42601S 42601S 42601S 42611A 42621 42621 42621 9161140812 9461110800
Part # Description Qty Price
Common parts
91611-40812
94611-10800
