KDY231L-PBMEYW3 (2006)
Toyota Dyna

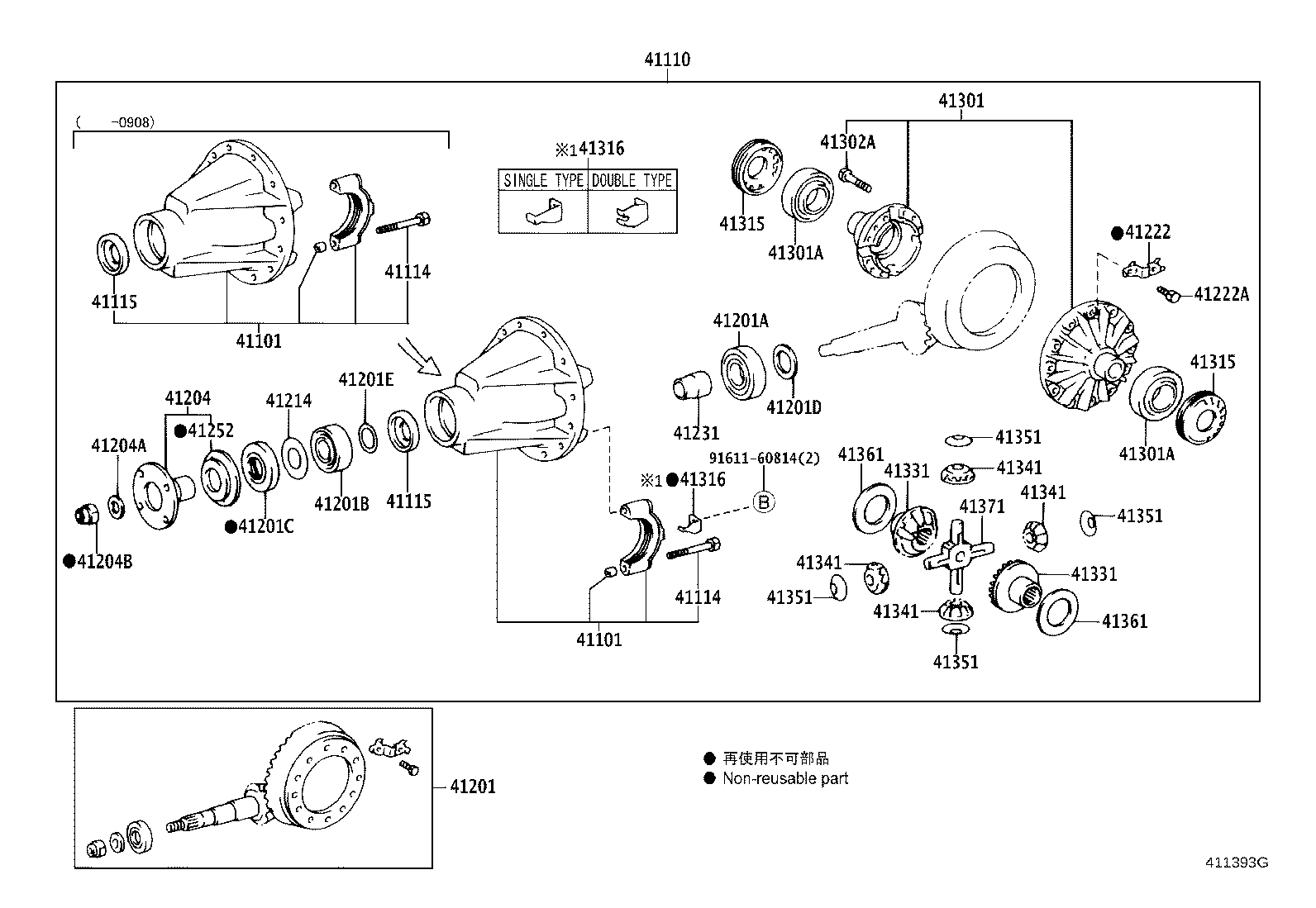

ILLUST NO. 1 OF 2(0107-0903)WT..IV3 ; (0903- )LY230
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-37010 |
KDY231,251,261..WT..IV3 |
1 | ||
| 41101-0C020 |
KDY231,251,261..WT..IV3 |
1 | ||
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-37010 |
KDY231,251,261..WT..IV3 |
1 | ||
| 41101-0C020 |
KDY231,251,261..WT..IV3 |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-25330 |
KDY231,251,261..WT..IV3 *FGR=43:10=4.300 |
1 | ||
| 41110-0C100 |
KDY231,251,261..WT..IV3 *FGR=41:10=4.100 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-16022 |
KDY231,251,261..WT..IV3 |
4 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-16022 |
KDY231,251,261..WT..IV3 |
4 | ||
| 41115 - RING, DIFFERENTIAL OIL STORAGE | ||||
| 41115-0C010 |
KDY231,251,261..WT..IV3 |
1 | ||
| 41115-37010 |
KDY231,251,261..WT..IV3 |
1 | ||
| 41115 - RING, DIFFERENTIAL OIL STORAGE | ||||
| 41115-0C010 |
KDY231,251,261..WT..IV3 |
1 | ||
| 41115-37010 |
KDY231,251,261..WT..IV3 |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-09A20 |
KDY231,251,261..WT..IV3 *FGR=41:10=4.100 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-A0017 |
KDY231,251,261..WT..IV3 |
1 | ||
| 90366-40100 |
KDY231,251,261..WT..IV3 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-A0023 |
KDY231,251,261..WT..IV3 |
1 | ||
| 90366-35108 |
KDY231,251,261..WT..IV3 |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-A0008 |
KDY231,251,261..WT..IV3 |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90564-40006 |
KDY231,251,261..WT..IV3 T=1.075 |
1 | ||
| 90564-40010 |
KDY231,251,261..WT..IV3 T=1.175 |
1 | ||
| 90564-40016 |
KDY231,251,261..WT..IV3 T=1.325 |
1 | ||
| 90564-40008 |
KDY231,251,261..WT..IV3 T=1.125 |
1 | ||
| 90564-40018 |
KDY231,251,261..WT..IV3 T=1.375 |
1 | ||
| 90564-40020 |
KDY231,251,261..WT..IV3 T=1.425 |
1 | ||
| 90564-40017 |
KDY231,251,261..WT..IV3 T=1.35 |
1 | ||
| 90564-40014 |
KDY231,251,261..WT..IV3 T=1.275 |
1 | ||
| 90564-40013 |
KDY231,251,261..WT..IV3 T=1.25 |
1 | ||
| 90564-40012 |
KDY231,251,261..WT..IV3 T=1.225 |
1 | ||
| 90564-40011 |
KDY231,251,261..WT..IV3 T=1.20 |
1 | ||
| 90564-40025 |
KDY231,251,261..WT..IV3 T=1.55 |
1 | ||
| 90564-40009 |
KDY231,251,261..WT..IV3 T=1.15 |
1 | ||
| 90564-40021 |
KDY231,251,261..WT..IV3 T=1.45 |
1 | ||
| 90564-A0022 |
KDY231,251,261..WT..IV3 T=1.90 |
1 | ||
| 90564-40019 |
KDY231,251,261..WT..IV3 T=1.40 |
1 | ||
| 90564-40004 |
KDY231,251,261..WT..IV3 T=1.05 |
1 | ||
| 90564-40015 |
KDY231,251,261..WT..IV3 T=1.30 |
1 | ||
| 90564-40024 |
KDY231,251,261..WT..IV3 T=1.525 |
1 | ||
| 90564-40007 |
KDY231,251,261..WT..IV3 T=1.10 |
1 | ||
| 90564-A0023 |
KDY231,251,261..WT..IV3 T=2.00 |
1 | ||
| 90564-40022 |
KDY231,251,261..WT..IV3 T=1.475 |
1 | ||
| 90564-A0032 |
KDY231,251,261..WT..IV3 T=2.90 |
1 | ||
| 90564-A0024 |
KDY231,251,261..WT..IV3 T=2.10 |
1 | ||
| 90564-A0026 |
KDY231,251,261..WT..IV3 T=2.30 |
1 | ||
| 90564-40023 |
KDY231,251,261..WT..IV3 T=1.50 |
1 | ||
| 90564-A0025 |
KDY231,251,261..WT..IV3 T=2.20 |
1 | ||
| 90564-A0033 |
KDY231,251,261..WT..IV3 T=3.00 |
1 | ||
| 90564-A0028 |
KDY231,251,261..WT..IV3 T=2.50 |
1 | ||
| 90564-A0027 |
KDY231,251,261..WT..IV3 T=2.40 |
1 | ||
| 90564-A0031 |
KDY231,251,261..WT..IV3 T=2.80 |
1 | ||
| 90564-A0029 |
KDY231,251,261..WT..IV3 T=2.60 |
1 | ||
| 90564-A0030 |
KDY231,251,261..WT..IV3 T=2.70 |
1 | ||
| 41201E - SHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST) | ||||
| 90564-35019 |
KDY231,251,261..WT..IV3 T=1.80 |
1 | ||
| 90564-35024 |
KDY231,251,261..WT..IV3 T=1.90 |
1 | ||
| 90564-35026 |
KDY231,251,261..WT..IV3 T=2.10 |
1 | ||
| 90564-35031 |
KDY231,251,261..WT..IV3 T=2.60 |
1 | ||
| 90564-35025 |
KDY231,251,261..WT..IV3 T=2.00 |
1 | ||
| 90564-35028 |
KDY231,251,261..WT..IV3 T=2.30 |
1 | ||
| 90564-35023 |
KDY231,251,261..WT..IV3 T=1.88 |
1 | ||
| 90564-35027 |
KDY231,251,261..WT..IV3 T=2.20 |
1 | ||
| 90564-35022 |
KDY231,251,261..WT..IV3 T=1.86 |
1 | ||
| 90564-35030 |
KDY231,251,261..WT..IV3 T=2.50 |
1 | ||
| 90564-35021 |
KDY231,251,261..WT..IV3 T=1.84 |
1 | ||
| 90564-35020 |
KDY231,251,261..WT..IV3 T=1.82 |
1 | ||
| 90564-35032 |
KDY231,251,261..WT..IV3 T=2.70 |
1 | ||
| 90564-35033 |
KDY231,251,261..WT..IV3 T=2.80 |
1 | ||
| 90564-35029 |
KDY231,251,261..WT..IV3 T=2.40 |
1 | ||
| 90564-35040 |
KDY231,251,261..WT..IV3 T=1.89 |
1 | ||
| 90564-35038 |
KDY231,251,261..WT..IV3 T=1.85 |
1 | ||
| 90564-A0039 |
KDY231,251,261..WT..IV3 T=1.85 |
1 | ||
| 90564-35034 |
KDY231,251,261..WT..IV3 T=2.90 |
1 | ||
| 90564-35035 |
KDY231,251,261..WT..IV3 T=3.00 |
1 | ||
| 90564-35039 |
KDY231,251,261..WT..IV3 T=1.87 |
1 | ||
| 90564-A0036 |
KDY231,251,261..WT..IV3 T=1.82 |
1 | ||
| 90564-A0037 |
KDY231,251,261..WT..IV3 T=1.83 |
1 | ||
| 90564-A0035 |
KDY231,251,261..WT..IV3 T=1.81 |
1 | ||
| 90564-35037 |
KDY231,251,261..WT..IV3 T=1.83 |
1 | ||
| 90564-35036 |
KDY231,251,261..WT..IV3 T=1.81 |
1 | ||
| 90564-A0040 |
KDY231,251,261..WT..IV3 T=1.86 |
1 | ||
| 90564-A0034 |
KDY231,251,261..WT..IV3 T=1.80 |
1 | ||
| 90564-A0042 |
KDY231,251,261..WT..IV3 T=1.88 |
1 | ||
| 90564-A0041 |
KDY231,251,261..WT..IV3 T=1.87 |
1 | ||
| 90564-A0038 |
KDY231,251,261..WT..IV3 T=1.84 |
1 | ||
| 90564-A0043 |
KDY231,251,261..WT..IV3 T=1.89 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-37010 |
KDY231,251,261..WT..IV3 |
1 | ||
| 41204-0C030 |
KDY231,251,261..WT..IV3 |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-23002 |
KDY23#,25#,26#,LY230..WT..IV3 |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-22029 |
KDY231,251,261,LY230..WT..IV3 OD=43 |
1 | ||
| 90179-22003 |
KDY23#,25#,26#,LY230..WT..IV3 OD=29 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-37010 |
KDY231,251,261..WT..IV3 |
1 | ||
| 41214-0C020 |
KDY231,251,261..WT..IV3 |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-36020 |
KDY231,251,261..WT..IV3 |
6 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-14315 |
KDY231,251,261..WT..IV3 |
12 | ||
| 90105-14183 |
KDY231,251,261..WT..IV3 |
12 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-34030 |
KDY231,251,261..WT..IV3 |
1 | ||
| 41231-36040 |
KDY231,251,261..WT..IV3 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-0C020 |
KDY231,251,261..WT..IV3 |
1 | ||
| 41252-37020 |
KDY231,251,261..WT..IV3 |
1 | ||
| 41301 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-36030 |
KDY231,251,261..WT..IV3 |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-A0020 |
KDY231,251,261..WT..IV3 |
2 | ||
| 90366-52004 |
KDY231,251,261..WT..IV3 |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-A0020 |
KDY231,251,261..WT..IV3 |
2 | ||
| 90366-52004 |
KDY231,251,261..WT..IV3 |
2 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90105-12087 |
KDY231,251,261..WT..IV3 |
12 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-36011 |
KDY231,251,261..WT..IV3 |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-36011 |
KDY231,251,261..WT..IV3 |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41317-36011 |
KDY231,251,261..WT..IV3 DOUBLE TYPE |
2 | ||
| 41316-36011 |
KDY231,251,261..WT..IV3 SINGLE TYPE |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41317-36011 |
KDY231,251,261..WT..IV3 DOUBLE TYPE |
2 | ||
| 41316-36011 |
KDY231,251,261..WT..IV3 SINGLE TYPE |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-36020 |
KDY231,251,261..WT..IV3 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-36020 |
KDY231,251,261..WT..IV3 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55013 |
KDY231,251,261..WT..IV3 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55013 |
KDY231,251,261..WT..IV3 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55013 |
KDY231,251,261..WT..IV3 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55013 |
KDY231,251,261..WT..IV3 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-34030 |
KDY231,251,261..WT..IV3 |
2 | ||
| 41351-35011 |
KDY231,251,261..WT..IV3 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-34030 |
KDY231,251,261..WT..IV3 |
2 | ||
| 41351-35011 |
KDY231,251,261..WT..IV3 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-34030 |
KDY231,251,261..WT..IV3 |
2 | ||
| 41351-35011 |
KDY231,251,261..WT..IV3 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-34030 |
KDY231,251,261..WT..IV3 |
2 | ||
| 41351-35011 |
KDY231,251,261..WT..IV3 |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60011 |
KDY231,251,261..WT..IV3 T=1.60 |
2 | ||
| 41361-60021 |
KDY231,251,261..WT..IV3 T=1.75 |
2 | ||
| 41361-60031 |
KDY231,251,261..WT..IV3 T=1.90 |
2 | ||
| 41361-60480 |
KDY231,251,261..WT..IV3 T=1.55 |
2 | ||
| 41361-60041 |
KDY231,251,261..WT..IV3 T=2.05 |
2 | ||
| 41361-60540 |
KDY231,251,261..WT..IV3 T=2.00 |
2 | ||
| 41361-0C130 |
KDY231,251,261..WT..IV3 T=1.70 |
2 | ||
| 41361-60520 |
KDY231,251,261..WT..IV3 T=1.85 |
2 | ||
| 41361-0C150 |
KDY231,251,261..WT..IV3 T=1.80 |
2 | ||
| 41361-60510 |
KDY231,251,261..WT..IV3 T=1.80 |
2 | ||
| 41361-0C120 |
KDY231,251,261..WT..IV3 T=1.65 |
2 | ||
| 41361-60550 |
KDY231,251,261..WT..IV3 T=2.10 |
2 | ||
| 41361-0C180 |
KDY231,251,261..WT..IV3 T=1.95 |
2 | ||
| 41361-60530 |
KDY231,251,261..WT..IV3 T=1.95 |
2 | ||
| 41361-60500 |
KDY231,251,261..WT..IV3 T=1.70 |
2 | ||
| 41361-0C140 |
KDY231,251,261..WT..IV3 T=1.75 |
2 | ||
| 41361-0C160 |
KDY231,251,261..WT..IV3 T=1.85 |
2 | ||
| 41361-60490 |
KDY231,251,261..WT..IV3 T=1.65 |
2 | ||
| 41361-0C110 |
KDY231,251,261..WT..IV3 T=1.60 |
2 | ||
| 41361-0C170 |
KDY231,251,261..WT..IV3 T=1.90 |
2 | ||
| 41361-0C100 |
KDY231,251,261..WT..IV3 T=1.55 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60011 |
KDY231,251,261..WT..IV3 T=1.60 |
2 | ||
| 41361-60021 |
KDY231,251,261..WT..IV3 T=1.75 |
2 | ||
| 41361-60031 |
KDY231,251,261..WT..IV3 T=1.90 |
2 | ||
| 41361-60480 |
KDY231,251,261..WT..IV3 T=1.55 |
2 | ||
| 41361-60041 |
KDY231,251,261..WT..IV3 T=2.05 |
2 | ||
| 41361-60540 |
KDY231,251,261..WT..IV3 T=2.00 |
2 | ||
| 41361-0C130 |
KDY231,251,261..WT..IV3 T=1.70 |
2 | ||
| 41361-60520 |
KDY231,251,261..WT..IV3 T=1.85 |
2 | ||
| 41361-0C150 |
KDY231,251,261..WT..IV3 T=1.80 |
2 | ||
| 41361-60510 |
KDY231,251,261..WT..IV3 T=1.80 |
2 | ||
| 41361-0C120 |
KDY231,251,261..WT..IV3 T=1.65 |
2 | ||
| 41361-60550 |
KDY231,251,261..WT..IV3 T=2.10 |
2 | ||
| 41361-0C180 |
KDY231,251,261..WT..IV3 T=1.95 |
2 | ||
| 41361-60530 |
KDY231,251,261..WT..IV3 T=1.95 |
2 | ||
| 41361-60500 |
KDY231,251,261..WT..IV3 T=1.70 |
2 | ||
| 41361-0C140 |
KDY231,251,261..WT..IV3 T=1.75 |
2 | ||
| 41361-0C160 |
KDY231,251,261..WT..IV3 T=1.85 |
2 | ||
| 41361-60490 |
KDY231,251,261..WT..IV3 T=1.65 |
2 | ||
| 41361-0C110 |
KDY231,251,261..WT..IV3 T=1.60 |
2 | ||
| 41361-0C170 |
KDY231,251,261..WT..IV3 T=1.90 |
2 | ||
| 41361-0C100 |
KDY231,251,261..WT..IV3 T=1.55 |
2 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41371-36011 |
KDY231,251,261..WT..IV3 |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||

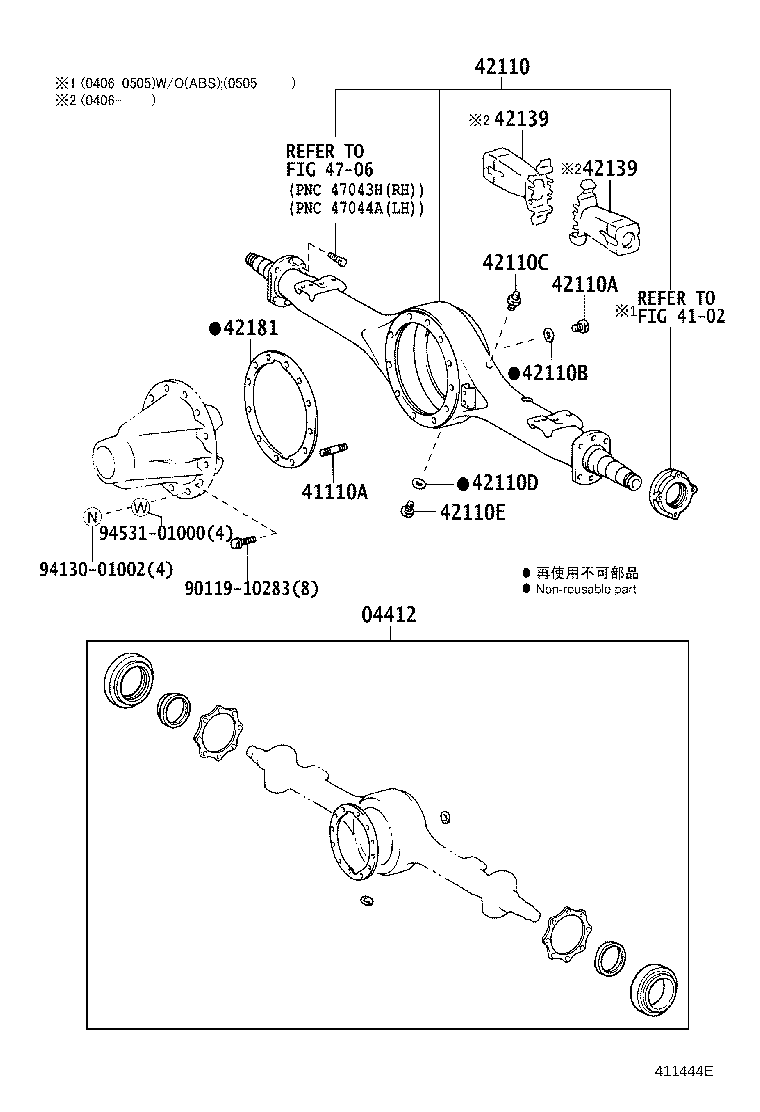

ILLUST NO. 2 OF 2(0107- )WT..IV3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER | ||||
| 04412-25100 |
KDY23#,25#,26#,LY230..WT..IV3 |
1 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-10211 |
KDY23#,25#,26#,LY230..WT..IV3 S=17 & 12.5,L=41.5 |
4 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18006 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03138 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
KDY221,231,251,261,LY225,23# |
1 | ||
| 90341-18040 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-36060 |
KDY23#,25#,26#,LY230..WT..IV3 |
1 | ||
| Common parts | ||||
| 90119-10283 | ||||
| 94130-01002 | ||||
| 94531-01000 | ||||
| Linked diagrams | ||||
| 4102 | ||||
| 4706 | ||||
ILLUST NO. 1 OF 2(0903- )KDY231,251,261..WT..IV3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41039 - GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41039-34140 |
KDY231,251,261..WT..IV3 |
1 | ||
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-37010 |
KDY231,251,261..WT..IV3 |
1 | ||
| 41101-0C020 |
KDY231,251,261..WT..IV3 |
1 | ||
| 41101B - PIN, RING (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90253-A0002 |
KDY231,251,261..WT..IV3 |
4 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-25330 |
KDY231,251,261..WT..IV3 *FGR=43:10=4.300 |
1 | ||
| 41110-0C100 |
KDY231,251,261..WT..IV3 *FGR=41:10=4.100 |
1 | ||
| 41115 - RING, DIFFERENTIAL OIL STORAGE | ||||
| 41115-0C010 |
KDY231,251,261..WT..IV3 |
1 | ||
| 41115-37010 |
KDY231,251,261..WT..IV3 |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-09A20 |
KDY231,251,261..WT..IV3 *FGR=41:10=4.100 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-A0017 |
KDY231,251,261..WT..IV3 |
1 | ||
| 90366-40100 |
KDY231,251,261..WT..IV3 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-A0023 |
KDY231,251,261..WT..IV3 |
1 | ||
| 90366-35108 |
KDY231,251,261..WT..IV3 |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-A0008 |
KDY231,251,261..WT..IV3 |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90564-40006 |
KDY231,251,261..WT..IV3 T=1.075 |
1 | ||
| 90564-40010 |
KDY231,251,261..WT..IV3 T=1.175 |
1 | ||
| 90564-40016 |
KDY231,251,261..WT..IV3 T=1.325 |
1 | ||
| 90564-40008 |
KDY231,251,261..WT..IV3 T=1.125 |
1 | ||
| 90564-40018 |
KDY231,251,261..WT..IV3 T=1.375 |
1 | ||
| 90564-40020 |
KDY231,251,261..WT..IV3 T=1.425 |
1 | ||
| 90564-40017 |
KDY231,251,261..WT..IV3 T=1.35 |
1 | ||
| 90564-40014 |
KDY231,251,261..WT..IV3 T=1.275 |
1 | ||
| 90564-40013 |
KDY231,251,261..WT..IV3 T=1.25 |
1 | ||
| 90564-40012 |
KDY231,251,261..WT..IV3 T=1.225 |
1 | ||
| 90564-40011 |
KDY231,251,261..WT..IV3 T=1.20 |
1 | ||
| 90564-40025 |
KDY231,251,261..WT..IV3 T=1.55 |
1 | ||
| 90564-40009 |
KDY231,251,261..WT..IV3 T=1.15 |
1 | ||
| 90564-40021 |
KDY231,251,261..WT..IV3 T=1.45 |
1 | ||
| 90564-A0022 |
KDY231,251,261..WT..IV3 T=1.90 |
1 | ||
| 90564-40019 |
KDY231,251,261..WT..IV3 T=1.40 |
1 | ||
| 90564-40004 |
KDY231,251,261..WT..IV3 T=1.05 |
1 | ||
| 90564-40015 |
KDY231,251,261..WT..IV3 T=1.30 |
1 | ||
| 90564-40024 |
KDY231,251,261..WT..IV3 T=1.525 |
1 | ||
| 90564-40007 |
KDY231,251,261..WT..IV3 T=1.10 |
1 | ||
| 90564-A0023 |
KDY231,251,261..WT..IV3 T=2.00 |
1 | ||
| 90564-40022 |
KDY231,251,261..WT..IV3 T=1.475 |
1 | ||
| 90564-A0032 |
KDY231,251,261..WT..IV3 T=2.90 |
1 | ||
| 90564-A0024 |
KDY231,251,261..WT..IV3 T=2.10 |
1 | ||
| 90564-A0026 |
KDY231,251,261..WT..IV3 T=2.30 |
1 | ||
| 90564-40023 |
KDY231,251,261..WT..IV3 T=1.50 |
1 | ||
| 90564-A0025 |
KDY231,251,261..WT..IV3 T=2.20 |
1 | ||
| 90564-A0033 |
KDY231,251,261..WT..IV3 T=3.00 |
1 | ||
| 90564-A0028 |
KDY231,251,261..WT..IV3 T=2.50 |
1 | ||
| 90564-A0027 |
KDY231,251,261..WT..IV3 T=2.40 |
1 | ||
| 90564-A0031 |
KDY231,251,261..WT..IV3 T=2.80 |
1 | ||
| 90564-A0029 |
KDY231,251,261..WT..IV3 T=2.60 |
1 | ||
| 90564-A0030 |
KDY231,251,261..WT..IV3 T=2.70 |
1 | ||
| 41201E - SHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST) | ||||
| 90564-35019 |
KDY231,251,261..WT..IV3 T=1.80 |
1 | ||
| 90564-35024 |
KDY231,251,261..WT..IV3 T=1.90 |
1 | ||
| 90564-35026 |
KDY231,251,261..WT..IV3 T=2.10 |
1 | ||
| 90564-35031 |
KDY231,251,261..WT..IV3 T=2.60 |
1 | ||
| 90564-35025 |
KDY231,251,261..WT..IV3 T=2.00 |
1 | ||
| 90564-35028 |
KDY231,251,261..WT..IV3 T=2.30 |
1 | ||
| 90564-35023 |
KDY231,251,261..WT..IV3 T=1.88 |
1 | ||
| 90564-35027 |
KDY231,251,261..WT..IV3 T=2.20 |
1 | ||
| 90564-35022 |
KDY231,251,261..WT..IV3 T=1.86 |
1 | ||
| 90564-35030 |
KDY231,251,261..WT..IV3 T=2.50 |
1 | ||
| 90564-35021 |
KDY231,251,261..WT..IV3 T=1.84 |
1 | ||
| 90564-35020 |
KDY231,251,261..WT..IV3 T=1.82 |
1 | ||
| 90564-35032 |
KDY231,251,261..WT..IV3 T=2.70 |
1 | ||
| 90564-35033 |
KDY231,251,261..WT..IV3 T=2.80 |
1 | ||
| 90564-35029 |
KDY231,251,261..WT..IV3 T=2.40 |
1 | ||
| 90564-35040 |
KDY231,251,261..WT..IV3 T=1.89 |
1 | ||
| 90564-35038 |
KDY231,251,261..WT..IV3 T=1.85 |
1 | ||
| 90564-A0039 |
KDY231,251,261..WT..IV3 T=1.85 |
1 | ||
| 90564-35034 |
KDY231,251,261..WT..IV3 T=2.90 |
1 | ||
| 90564-35035 |
KDY231,251,261..WT..IV3 T=3.00 |
1 | ||
| 90564-35039 |
KDY231,251,261..WT..IV3 T=1.87 |
1 | ||
| 90564-A0036 |
KDY231,251,261..WT..IV3 T=1.82 |
1 | ||
| 90564-A0037 |
KDY231,251,261..WT..IV3 T=1.83 |
1 | ||
| 90564-A0035 |
KDY231,251,261..WT..IV3 T=1.81 |
1 | ||
| 90564-35037 |
KDY231,251,261..WT..IV3 T=1.83 |
1 | ||
| 90564-35036 |
KDY231,251,261..WT..IV3 T=1.81 |
1 | ||
| 90564-A0040 |
KDY231,251,261..WT..IV3 T=1.86 |
1 | ||
| 90564-A0034 |
KDY231,251,261..WT..IV3 T=1.80 |
1 | ||
| 90564-A0042 |
KDY231,251,261..WT..IV3 T=1.88 |
1 | ||
| 90564-A0041 |
KDY231,251,261..WT..IV3 T=1.87 |
1 | ||
| 90564-A0038 |
KDY231,251,261..WT..IV3 T=1.84 |
1 | ||
| 90564-A0043 |
KDY231,251,261..WT..IV3 T=1.89 |
1 | ||
| 41201F - SHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST) | ||||
| 90564-A0001 |
KDY231,251,261..WT..IV3 T=1.000 |
1 | ||
| 90564-A0009 |
KDY231,251,261..WT..IV3 T=1.200 |
1 | ||
| 90564-A0007 |
KDY231,251,261..WT..IV3 T=1.150 |
1 | ||
| 90564-A0015 |
KDY231,251,261..WT..IV3 T=1.350 |
1 | ||
| 90564-A0002 |
KDY231,251,261..WT..IV3 T=1.025 |
1 | ||
| 90564-A0013 |
KDY231,251,261..WT..IV3 T=1.300 |
1 | ||
| 90564-A0004 |
KDY231,251,261..WT..IV3 T=1.075 |
1 | ||
| 90564-A0014 |
KDY231,251,261..WT..IV3 T=1.325 |
1 | ||
| 90564-A0008 |
KDY231,251,261..WT..IV3 T=1.175 |
1 | ||
| 90564-A0005 |
KDY231,251,261..WT..IV3 T=1.100 |
1 | ||
| 90564-A0003 |
KDY231,251,261..WT..IV3 T=1.050 |
1 | ||
| 90564-A0020 |
KDY231,251,261..WT..IV3 T=1.475 |
1 | ||
| 90564-A0016 |
KDY231,251,261..WT..IV3 T=1.375 |
1 | ||
| 90564-A0017 |
KDY231,251,261..WT..IV3 T=1.400 |
1 | ||
| 90564-A0010 |
KDY231,251,261..WT..IV3 T=1.225 |
1 | ||
| 90564-A0012 |
KDY231,251,261..WT..IV3 T=1.275 |
1 | ||
| 90564-A0006 |
KDY231,251,261..WT..IV3 T=1.125 |
1 | ||
| 90564-A0011 |
KDY231,251,261..WT..IV3 T=1.250 |
1 | ||
| 90564-A0021 |
KDY231,251,261..WT..IV3 T=1.500 |
1 | ||
| 90564-A0019 |
KDY231,251,261..WT..IV3 T=1.450 |
1 | ||
| 90564-A0018 |
KDY231,251,261..WT..IV3 T=1.425 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-37010 |
KDY231,251,261..WT..IV3 |
1 | ||
| 41204-0C030 |
KDY231,251,261..WT..IV3 |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-22029 |
KDY231,251,261,LY230..WT..IV3 OD=43 |
1 | ||
| 90179-22003 |
KDY23#,25#,26#,LY230..WT..IV3 OD=29 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-37010 |
KDY231,251,261..WT..IV3 |
1 | ||
| 41214-0C020 |
KDY231,251,261..WT..IV3 |
1 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-14315 |
KDY231,251,261..WT..IV3 |
12 | ||
| 90105-14183 |
KDY231,251,261..WT..IV3 |
12 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-34030 |
KDY231,251,261..WT..IV3 |
1 | ||
| 41231-36040 |
KDY231,251,261..WT..IV3 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-0C020 |
KDY231,251,261..WT..IV3 |
1 | ||
| 41252-37020 |
KDY231,251,261..WT..IV3 |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-A0020 |
KDY231,251,261..WT..IV3 |
2 | ||
| 90366-52004 |
KDY231,251,261..WT..IV3 |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-A0020 |
KDY231,251,261..WT..IV3 |
2 | ||
| 90366-52004 |
KDY231,251,261..WT..IV3 |
2 | ||
| 41311J - CASE, REAR DIFFERENTIAL | ||||
| 41311-0C030 |
KDY231,251,261..WT..IV3 |
1 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-34040 |
KDY231,251,261..WT..IV3 |
1 | ||
| 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT | ||||
| 90250-A0007 |
KDY231,251,261..WT..IV3 |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-34030 |
KDY231,251,261..WT..IV3 |
2 | ||
| 41351-35011 |
KDY231,251,261..WT..IV3 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-34030 |
KDY231,251,261..WT..IV3 |
2 | ||
| 41351-35011 |
KDY231,251,261..WT..IV3 |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60011 |
KDY231,251,261..WT..IV3 T=1.60 |
2 | ||
| 41361-60021 |
KDY231,251,261..WT..IV3 T=1.75 |
2 | ||
| 41361-60031 |
KDY231,251,261..WT..IV3 T=1.90 |
2 | ||
| 41361-60480 |
KDY231,251,261..WT..IV3 T=1.55 |
2 | ||
| 41361-60041 |
KDY231,251,261..WT..IV3 T=2.05 |
2 | ||
| 41361-60540 |
KDY231,251,261..WT..IV3 T=2.00 |
2 | ||
| 41361-0C130 |
KDY231,251,261..WT..IV3 T=1.70 |
2 | ||
| 41361-60520 |
KDY231,251,261..WT..IV3 T=1.85 |
2 | ||
| 41361-0C150 |
KDY231,251,261..WT..IV3 T=1.80 |
2 | ||
| 41361-60510 |
KDY231,251,261..WT..IV3 T=1.80 |
2 | ||
| 41361-0C120 |
KDY231,251,261..WT..IV3 T=1.65 |
2 | ||
| 41361-60550 |
KDY231,251,261..WT..IV3 T=2.10 |
2 | ||
| 41361-0C180 |
KDY231,251,261..WT..IV3 T=1.95 |
2 | ||
| 41361-60530 |
KDY231,251,261..WT..IV3 T=1.95 |
2 | ||
| 41361-60500 |
KDY231,251,261..WT..IV3 T=1.70 |
2 | ||
| 41361-0C140 |
KDY231,251,261..WT..IV3 T=1.75 |
2 | ||
| 41361-0C160 |
KDY231,251,261..WT..IV3 T=1.85 |
2 | ||
| 41361-60490 |
KDY231,251,261..WT..IV3 T=1.65 |
2 | ||
| 41361-0C110 |
KDY231,251,261..WT..IV3 T=1.60 |
2 | ||
| 41361-0C170 |
KDY231,251,261..WT..IV3 T=1.90 |
2 | ||
| 41361-0C100 |
KDY231,251,261..WT..IV3 T=1.55 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60011 |
KDY231,251,261..WT..IV3 T=1.60 |
2 | ||
| 41361-60021 |
KDY231,251,261..WT..IV3 T=1.75 |
2 | ||
| 41361-60031 |
KDY231,251,261..WT..IV3 T=1.90 |
2 | ||
| 41361-60480 |
KDY231,251,261..WT..IV3 T=1.55 |
2 | ||
| 41361-60041 |
KDY231,251,261..WT..IV3 T=2.05 |
2 | ||
| 41361-60540 |
KDY231,251,261..WT..IV3 T=2.00 |
2 | ||
| 41361-0C130 |
KDY231,251,261..WT..IV3 T=1.70 |
2 | ||
| 41361-60520 |
KDY231,251,261..WT..IV3 T=1.85 |
2 | ||
| 41361-0C150 |
KDY231,251,261..WT..IV3 T=1.80 |
2 | ||
| 41361-60510 |
KDY231,251,261..WT..IV3 T=1.80 |
2 | ||
| 41361-0C120 |
KDY231,251,261..WT..IV3 T=1.65 |
2 | ||
| 41361-60550 |
KDY231,251,261..WT..IV3 T=2.10 |
2 | ||
| 41361-0C180 |
KDY231,251,261..WT..IV3 T=1.95 |
2 | ||
| 41361-60530 |
KDY231,251,261..WT..IV3 T=1.95 |
2 | ||
| 41361-60500 |
KDY231,251,261..WT..IV3 T=1.70 |
2 | ||
| 41361-0C140 |
KDY231,251,261..WT..IV3 T=1.75 |
2 | ||
| 41361-0C160 |
KDY231,251,261..WT..IV3 T=1.85 |
2 | ||
| 41361-60490 |
KDY231,251,261..WT..IV3 T=1.65 |
2 | ||
| 41361-0C110 |
KDY231,251,261..WT..IV3 T=1.60 |
2 | ||
| 41361-0C170 |
KDY231,251,261..WT..IV3 T=1.90 |
2 | ||
| 41361-0C100 |
KDY231,251,261..WT..IV3 T=1.55 |
2 | ||
| 41361A - SHIM(FOR REAR DIFFERENTIAL SIDE GEAR THRUST) | ||||
| 90564-A0049 |
KDY231,251,261..WT..IV3 T=1.76,MARK 76 |
2 | ||
| 90564-A0050 |
KDY231,251,261..WT..IV3 T=1.78,MARK 78 |
2 | ||
| 90564-A0053 |
KDY231,251,261..WT..IV3 T=1.84,MARK 84 |
2 | ||
| 90564-A0046 |
KDY231,251,261..WT..IV3 T=1.70,MARK 70 |
2 | ||
| 90564-A0051 |
KDY231,251,261..WT..IV3 T=1.80,MARK 80 |
2 | ||
| 90564-A0048 |
KDY231,251,261..WT..IV3 T=1.74,MARK 74 |
2 | ||
| 90564-A0054 |
KDY231,251,261..WT..IV3 T=1.86,MARK 86 |
2 | ||
| 90564-A0047 |
KDY231,251,261..WT..IV3 T=1.72,MARK 72 |
2 | ||
| 90564-A0045 |
KDY231,251,261..WT..IV3 T=1.68,MARK 68 |
2 | ||
| 90564-A0044 |
KDY231,251,261..WT..IV3 T=1.66,MARK 66 |
2 | ||
| 90564-A0055 |
KDY231,251,261..WT..IV3 T=1.88,MARK 88 |
2 | ||
| 90564-A0052 |
KDY231,251,261..WT..IV3 T=1.82,MARK 82 |
2 | ||
| 90564-A0057 |
KDY231,251,261..WT..IV3 T=1.92,MARK 92 |
2 | ||
| 90564-A0056 |
KDY231,251,261..WT..IV3 T=1.90,MARK 90 |
2 | ||
| 90564-A0059 |
KDY231,251,261..WT..IV3 T=1.96,MARK 96 |
2 | ||
| 90564-A0058 |
KDY231,251,261..WT..IV3 T=1.94,MARK 94 |
2 | ||
| 90564-A0063 |
KDY231,251,261..WT..IV3 T=2.04,MARK 04 |
2 | ||
| 90564-A0066 |
KDY231,251,261..WT..IV3 T=2.10,MARK 10 |
2 | ||
| 90564-A0069 |
KDY231,251,261..WT..IV3 T=2.16,MARK 16 |
2 | ||
| 90564-A0068 |
KDY231,251,261..WT..IV3 T=2.14,MARK 14 |
2 | ||
| 90564-A0065 |
KDY231,251,261..WT..IV3 T=2.08,MARK 08 |
2 | ||
| 90564-A0061 |
KDY231,251,261..WT..IV3 T=2.00,MARK 00 |
2 | ||
| 90564-A0073 |
KDY231,251,261..WT..IV3 T=2.24,MARK 24 |
2 | ||
| 90564-A0076 |
KDY231,251,261..WT..IV3 T=2.30,MARK 30 |
2 | ||
| 90564-A0071 |
KDY231,251,261..WT..IV3 T=2.20,MARK 20 |
2 | ||
| 90564-A0062 |
KDY231,251,261..WT..IV3 T=2.02,MARK 02 |
2 | ||
| 90564-A0072 |
KDY231,251,261..WT..IV3 T=2.22,MARK 22 |
2 | ||
| 90564-A0067 |
KDY231,251,261..WT..IV3 T=2.12,MARK 12 |
2 | ||
| 90564-A0060 |
KDY231,251,261..WT..IV3 T=1.98,MARK 98 |
2 | ||
| 90564-A0081 |
KDY231,251,261..WT..IV3 T=2.40,MARK 40 |
2 | ||
| 90564-A0070 |
KDY231,251,261..WT..IV3 T=2.18,MARK 18 |
2 | ||
| 90564-A0080 |
KDY231,251,261..WT..IV3 T=2.38,MARK 38 |
2 | ||
| 90564-A0074 |
KDY231,251,261..WT..IV3 T=2.26,MARK 26 |
2 | ||
| 90564-A0064 |
KDY231,251,261..WT..IV3 T=2.06,MARK 06 |
2 | ||
| 90564-A0077 |
KDY231,251,261..WT..IV3 T=2.32,MARK 32 |
2 | ||
| 90564-A0084 |
KDY231,251,261..WT..IV3 T=2.46,MARK 46 |
2 | ||
| 90564-A0079 |
KDY231,251,261..WT..IV3 T=2.36,MARK 36 |
2 | ||
| 90564-A0075 |
KDY231,251,261..WT..IV3 T=2.28,MARK 28 |
2 | ||
| 90564-A0078 |
KDY231,251,261..WT..IV3 T=2.34,MARK 34 |
2 | ||
| 90564-A0083 |
KDY231,251,261..WT..IV3 T=2.44,MARK 44 |
2 | ||
| 90564-A0082 |
KDY231,251,261..WT..IV3 T=2.42,MARK 42 |
2 | ||
| 41361A - SHIM(FOR REAR DIFFERENTIAL SIDE GEAR THRUST) | ||||
| 90564-A0049 |
KDY231,251,261..WT..IV3 T=1.76,MARK 76 |
2 | ||
| 90564-A0050 |
KDY231,251,261..WT..IV3 T=1.78,MARK 78 |
2 | ||
| 90564-A0053 |
KDY231,251,261..WT..IV3 T=1.84,MARK 84 |
2 | ||
| 90564-A0046 |
KDY231,251,261..WT..IV3 T=1.70,MARK 70 |
2 | ||
| 90564-A0051 |
KDY231,251,261..WT..IV3 T=1.80,MARK 80 |
2 | ||
| 90564-A0048 |
KDY231,251,261..WT..IV3 T=1.74,MARK 74 |
2 | ||
| 90564-A0054 |
KDY231,251,261..WT..IV3 T=1.86,MARK 86 |
2 | ||
| 90564-A0047 |
KDY231,251,261..WT..IV3 T=1.72,MARK 72 |
2 | ||
| 90564-A0045 |
KDY231,251,261..WT..IV3 T=1.68,MARK 68 |
2 | ||
| 90564-A0044 |
KDY231,251,261..WT..IV3 T=1.66,MARK 66 |
2 | ||
| 90564-A0055 |
KDY231,251,261..WT..IV3 T=1.88,MARK 88 |
2 | ||
| 90564-A0052 |
KDY231,251,261..WT..IV3 T=1.82,MARK 82 |
2 | ||
| 90564-A0057 |
KDY231,251,261..WT..IV3 T=1.92,MARK 92 |
2 | ||
| 90564-A0056 |
KDY231,251,261..WT..IV3 T=1.90,MARK 90 |
2 | ||
| 90564-A0059 |
KDY231,251,261..WT..IV3 T=1.96,MARK 96 |
2 | ||
| 90564-A0058 |
KDY231,251,261..WT..IV3 T=1.94,MARK 94 |
2 | ||
| 90564-A0063 |
KDY231,251,261..WT..IV3 T=2.04,MARK 04 |
2 | ||
| 90564-A0066 |
KDY231,251,261..WT..IV3 T=2.10,MARK 10 |
2 | ||
| 90564-A0069 |
KDY231,251,261..WT..IV3 T=2.16,MARK 16 |
2 | ||
| 90564-A0068 |
KDY231,251,261..WT..IV3 T=2.14,MARK 14 |
2 | ||
| 90564-A0065 |
KDY231,251,261..WT..IV3 T=2.08,MARK 08 |
2 | ||
| 90564-A0061 |
KDY231,251,261..WT..IV3 T=2.00,MARK 00 |
2 | ||
| 90564-A0073 |
KDY231,251,261..WT..IV3 T=2.24,MARK 24 |
2 | ||
| 90564-A0076 |
KDY231,251,261..WT..IV3 T=2.30,MARK 30 |
2 | ||
| 90564-A0071 |
KDY231,251,261..WT..IV3 T=2.20,MARK 20 |
2 | ||
| 90564-A0062 |
KDY231,251,261..WT..IV3 T=2.02,MARK 02 |
2 | ||
| 90564-A0072 |
KDY231,251,261..WT..IV3 T=2.22,MARK 22 |
2 | ||
| 90564-A0067 |
KDY231,251,261..WT..IV3 T=2.12,MARK 12 |
2 | ||
| 90564-A0060 |
KDY231,251,261..WT..IV3 T=1.98,MARK 98 |
2 | ||
| 90564-A0081 |
KDY231,251,261..WT..IV3 T=2.40,MARK 40 |
2 | ||
| 90564-A0070 |
KDY231,251,261..WT..IV3 T=2.18,MARK 18 |
2 | ||
| 90564-A0080 |
KDY231,251,261..WT..IV3 T=2.38,MARK 38 |
2 | ||
| 90564-A0074 |
KDY231,251,261..WT..IV3 T=2.26,MARK 26 |
2 | ||
| 90564-A0064 |
KDY231,251,261..WT..IV3 T=2.06,MARK 06 |
2 | ||
| 90564-A0077 |
KDY231,251,261..WT..IV3 T=2.32,MARK 32 |
2 | ||
| 90564-A0084 |
KDY231,251,261..WT..IV3 T=2.46,MARK 46 |
2 | ||
| 90564-A0079 |
KDY231,251,261..WT..IV3 T=2.36,MARK 36 |
2 | ||
| 90564-A0075 |
KDY231,251,261..WT..IV3 T=2.28,MARK 28 |
2 | ||
| 90564-A0078 |
KDY231,251,261..WT..IV3 T=2.34,MARK 34 |
2 | ||
| 90564-A0083 |
KDY231,251,261..WT..IV3 T=2.44,MARK 44 |
2 | ||
| 90564-A0082 |
KDY231,251,261..WT..IV3 T=2.42,MARK 42 |
2 | ||
| Common parts | ||||
| 90105-16022 | ||||
| 90105-A0137 | ||||
(7708- )BU2#,3#,HU30,JU20,RU2#,30
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91111-40814 | ||||
| 94512-00800 | ||||
| 94512-01400 | ||||
| 94512-01600 | ||||
(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-10227 | ||||
| 90119-10283 | ||||
| 94110-51000 | ||||
| 94120-41000 | ||||
| 94512-01000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
