KDY231L-PBMEYW3 (2006)
Toyota Dyna

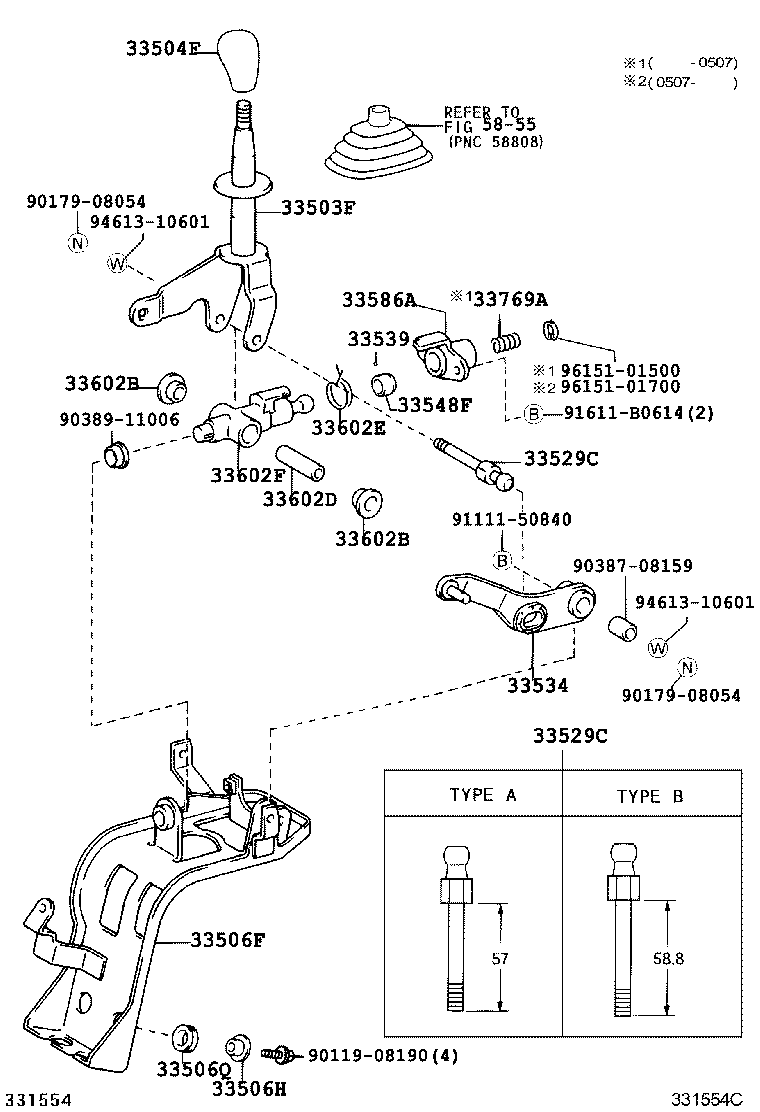

ILLUST NO. 1 OF 2(0107- )LY22#,23#
M/T RHD FIXING TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-37091 |
KDY22#,23#,25#,26#,LY225,235..LHD |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-35030B3 |
KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY22#,23# DK.CHARCOAL,TRIM1# |
1 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33506-37052 |
KDY22#,23#,25#,26#,LY225,235..LHD |
1 | ||
| 33506H - BUSH (FOR SHIFT LEVER RETAINER) | ||||
| 90386-12056 |
KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY22#,23# |
4 | ||
| 33506Q - GROMMET, NO.1(FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 33577-37060 |
KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY22#,23# |
4 | ||
| 33534 - BELLCRANK, SELECTING | ||||
| 33534-37081 |
KDY22#,23#,25#,26#,LY225,235..LHD |
1 | ||
| 33539 - CUSHION, SHIFT LEVER ANTI-RATTLE | ||||
| 33539-12010 |
KDY221,231,251,261,LY225,23# |
2 | ||
| 33539-12010 |
KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY22#,23# |
1 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-12040 |
KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY22#,23# |
1 | ||
| 33548-52010 |
KDY221,231,251,261,LY225,23# |
1 | ||
| 33602B - BUSHING (FOR SELECT LEVER) | ||||
| 90386-13007 |
KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY22#,23# |
2 | ||
| 33602B - BUSHING (FOR SELECT LEVER) | ||||
| 90386-13007 |
KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY22#,23# |
2 | ||
| 33602D - COLLAR (FOR SELECT LEVER) | ||||
| 90387-08063 |
KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY22#,23# |
1 | ||
| 33602E - SPRING, TORSION (FOR SELECT LEVER) | ||||
| 90949-03034 |
KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY22#,23# |
1 | ||
| 33602F - LEVER SUB-ASSY, SELECT (FOR FLOOR SHIFT) | ||||
| 33602-37030 |
KDY22#,23#,25#,26#,LY225,235..LHD |
1 | ||
| Common parts | ||||
| 90119-08190 | ||||
| 90179-08054 | ||||
| 90387-08159 | ||||
| 90389-11006 | ||||
| 91111-50840 | ||||
| 91611-B0614 | ||||
| 94613-10601 | ||||
| 96151-01500 | ||||
| 96151-01700 | ||||
| Linked diagrams | ||||
| 5855 | ||||
ILLUST NO. 1 OF 2(0107- )LHD
M/T LHD FIXING TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-37091 |
KDY22#,23#,25#,26#,LY225,235..LHD |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-35030B3 |
KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY22#,23# DK.CHARCOAL,TRIM1# |
1 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33506-37052 |
KDY22#,23#,25#,26#,LY225,235..LHD |
1 | ||
| 33506H - BUSH (FOR SHIFT LEVER RETAINER) | ||||
| 90386-12056 |
KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY22#,23# |
4 | ||
| 33506Q - GROMMET, NO.1(FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 33577-37060 |
KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY22#,23# |
4 | ||
| 33534 - BELLCRANK, SELECTING | ||||
| 33534-37081 |
KDY22#,23#,25#,26#,LY225,235..LHD |
1 | ||
| 33539 - CUSHION, SHIFT LEVER ANTI-RATTLE | ||||
| 33539-12010 |
KDY221,231,251,261,LY225,23# |
2 | ||
| 33539-12010 |
KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY22#,23# |
1 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-12040 |
KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY22#,23# |
1 | ||
| 33548-52010 |
KDY221,231,251,261,LY225,23# |
1 | ||
| 33602B - BUSHING (FOR SELECT LEVER) | ||||
| 90386-13007 |
KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY22#,23# |
2 | ||
| 33602B - BUSHING (FOR SELECT LEVER) | ||||
| 90386-13007 |
KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY22#,23# |
2 | ||
| 33602D - COLLAR (FOR SELECT LEVER) | ||||
| 90387-08063 |
KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY22#,23# |
1 | ||
| 33602E - SPRING, TORSION (FOR SELECT LEVER) | ||||
| 90949-03034 |
KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY22#,23# |
1 | ||
| 33602F - LEVER SUB-ASSY, SELECT (FOR FLOOR SHIFT) | ||||
| 33602-37030 |
KDY22#,23#,25#,26#,LY225,235..LHD |
1 | ||
| Common parts | ||||
| 90119-08190 | ||||
| 90179-08054 | ||||
| 90387-08159 | ||||
| 90389-11006 | ||||
| 91111-40860 | ||||
| 91111-50840 | ||||
| 91611-B0614 | ||||
| 94613-10601 | ||||
| 96151-01500 | ||||
| 96151-01700 | ||||
| Linked diagrams | ||||
| 5855 | ||||
