KDY231L-PBMEYW3 (2006)

Toyota Dyna

Production Sep 2006 - Feb 2015
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )

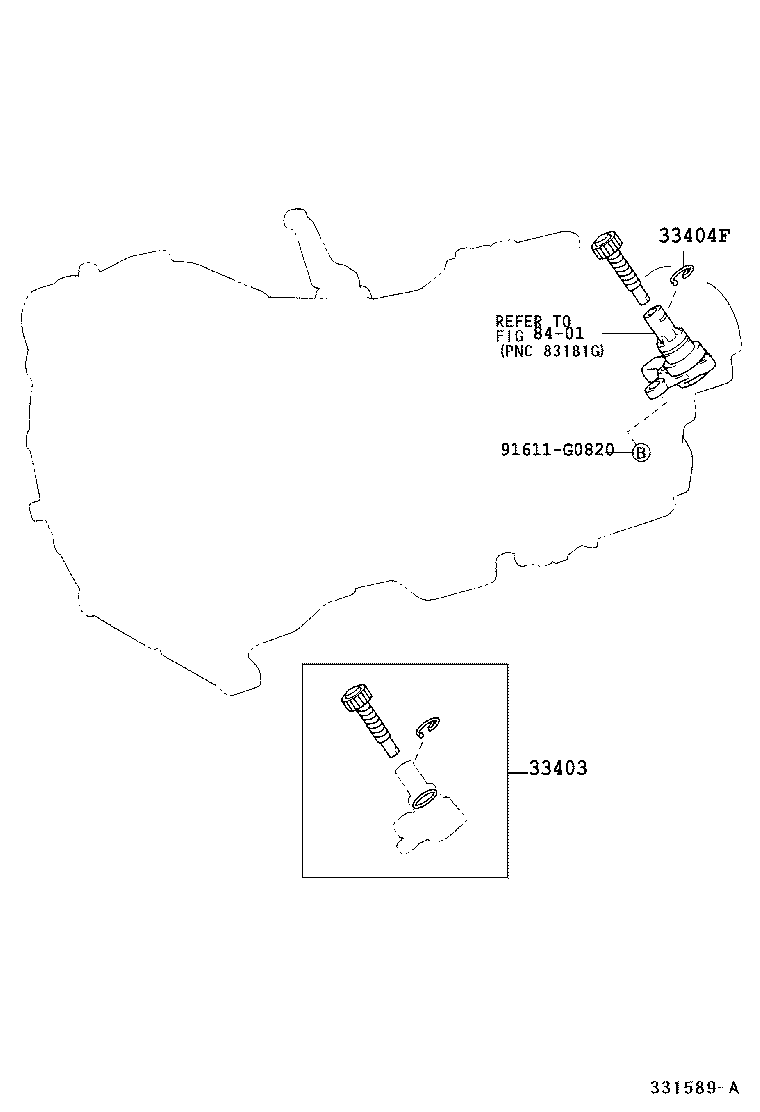

Click highlighted areas on diagram

G54,R351,R451,R452

diagram 33403 33404F 8401 91611G0820
Part # Description Qty Price
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33403-29315

KDY231,251,261..WT..IV3

N=32,MARK 32:10

 1
33403-29325

KDY231,251,261..WT..IV3

N=33,MARK 33:10

 1
33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90468-12005

KDY22#,23#,25#,26#,LY22#,23#

 1
Common parts
91611-G0820
Linked diagrams
8401

(7708- )

Click highlighted areas on diagram

diagram 33403 33403 33403A 33403A 33403C 33403C 33404 33404 33404A 33404A 33404A 33404A 33404B 33404C 33404C 33404C 33404E 33404F 33404F 33485 9161140610 9318016012 9451200600
Part # Description Qty Price
Common parts
91611-40610
93180-16012
94512-00600
