KDY231L-PBMEYW3 (2006)
Toyota Dyna

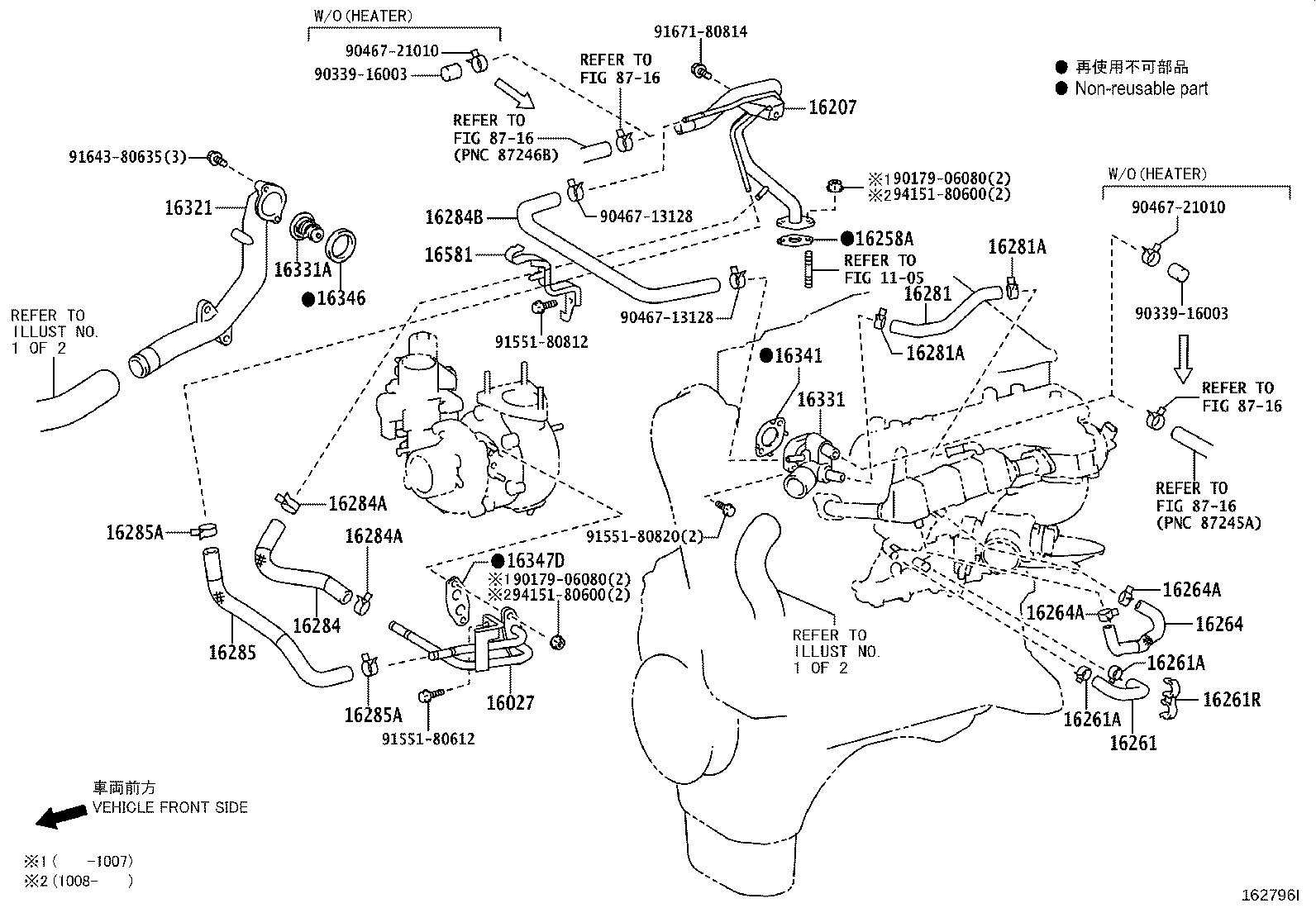

ILLUST NO. 2 OF 2(0609-0905)1KDFTV ; (0905-1310)1KDFTV..KDY221,231..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16027-30100 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 16027-30130 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 16027-30080 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 16207 - PIPE SUB-ASSY, WATER BY-PASS, NO.2 | ||||
| 16207-30160 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-30120 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-19022 |
1KDFTV..KDY221,231,251,261..EUR |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-19022 |
1KDFTV..KDY221,231,251,261..EUR |
2 | ||
| 16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90467-13073 |
1KDFTV..KDY221,231,251,261..EUR |
2 | ||
| 90464-00574 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-30080 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-19022 |
1KDFTV..KDY221,231,251,261..EUR |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-19022 |
1KDFTV..KDY221,231,251,261..EUR |
2 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-30050 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 16281-30110 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-19022 |
1KDFTV..KDY221,231,251,261..EUR |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-19022 |
1KDFTV..KDY221,231,251,261..EUR |
2 | ||
| 16284 - HOSE, TURBO WATER, NO.1 | ||||
| 16284-30100 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 16284-30050 |
1KDFTV..KDY221,231,251,261..EUR PNC 16288=TYPE A |
1 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-13128 |
1KDFTV..KDY221,231,251,261..EUR |
2 | ||
| 90467-13073 |
1KDFTV..KDY221,231,251,261..EUR |
2 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-13128 |
1KDFTV..KDY221,231,251,261..EUR |
2 | ||
| 90467-13073 |
1KDFTV..KDY221,231,251,261..EUR |
2 | ||
| 16284B - HOSE, TURBO WATER, NO.2 | ||||
| 16284-30080 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 16285 - HOSE, TURBO WATER, NO.2 | ||||
| 16285-30120 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 16285-30081 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-13128 |
1KDFTV..KDY221,231,251,261..EUR |
2 | ||
| 90467-13073 |
1KDFTV..KDY221,231,251,261..EUR |
2 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-13128 |
1KDFTV..KDY221,231,251,261..EUR |
2 | ||
| 90467-13073 |
1KDFTV..KDY221,231,251,261..EUR |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-30090 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-30150 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 16347D - GASKET, WATER BY-PASS | ||||
| 16347-30010 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-30020 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| Common parts | ||||
| 90179-06080 | ||||
| 90339-16003 | ||||
| 90467-13128 | ||||
| 90467-21010 | ||||
| 91551-80612 | ||||
| 91551-80812 | ||||
| 91551-80820 | ||||
| 91643-80635 | ||||
| 91671-80814 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 8716 | ||||

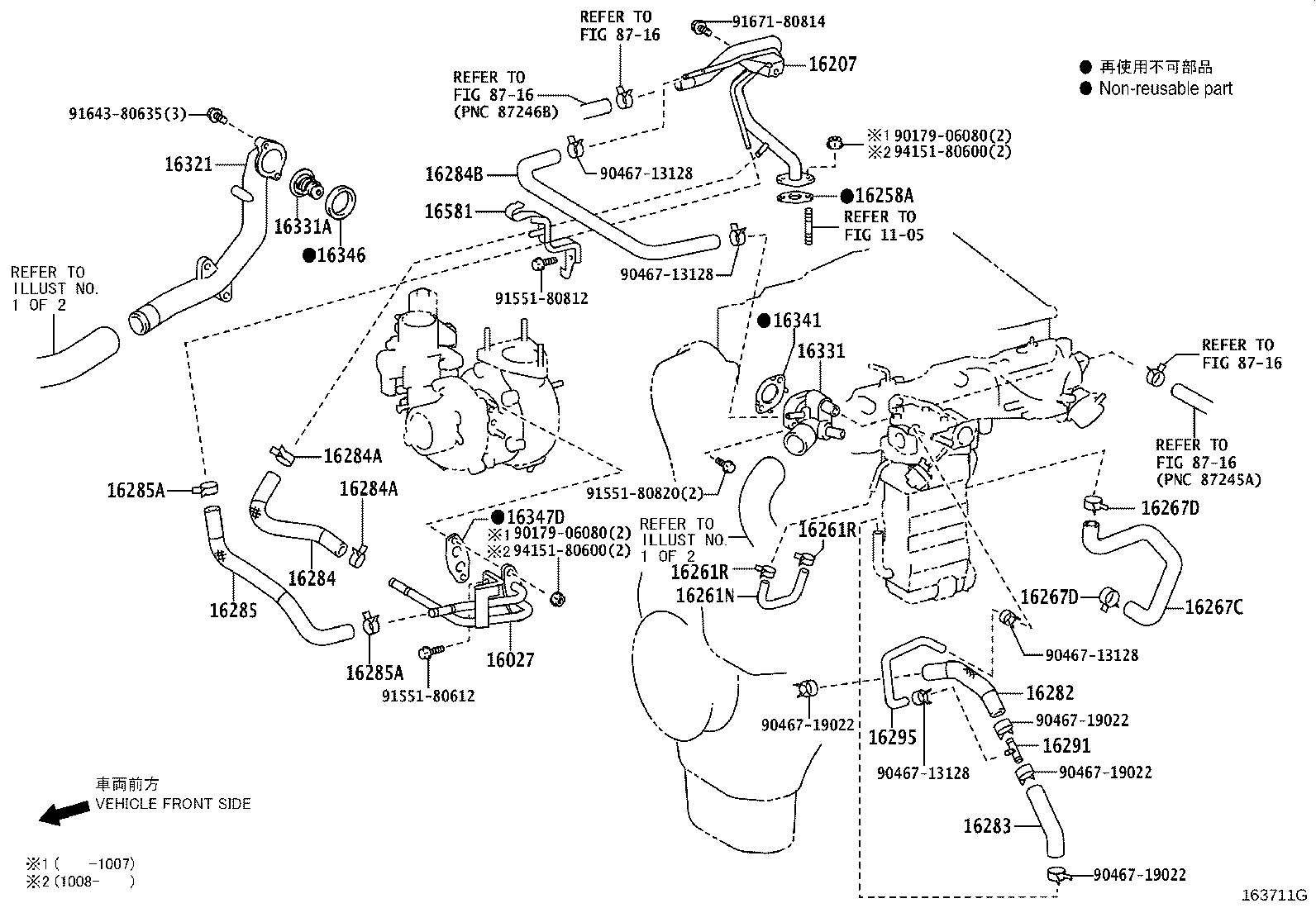

ILLUST NO. 2 OF 2(0905-1109)1KDFTV..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16027-30100 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 16027-30130 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 16027-30080 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 16207 - PIPE SUB-ASSY, WATER BY-PASS, NO.2 | ||||
| 16207-30160 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 16261N - HOSE, WATER BY-PASS, NO.2 | ||||
| 16261-30140 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90467-13073 |
1KDFTV..KDY221,231,251,261..EUR |
2 | ||
| 90464-00574 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90467-13073 |
1KDFTV..KDY221,231,251,261..EUR |
2 | ||
| 90464-00574 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 16267C - HOSE, WATER BY-PASS, NO.4 | ||||
| 16267-30110 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 16267D - CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-19022 |
1KDFTV..KDY221,231,251,261..EUR |
2 | ||
| 16267D - CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-19022 |
1KDFTV..KDY221,231,251,261..EUR |
2 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-30030 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 16282-30020 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-30010 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 16283-30020 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 16284 - HOSE, TURBO WATER, NO.1 | ||||
| 16284-30100 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 16284-30050 |
1KDFTV..KDY221,231,251,261..EUR PNC 16288=TYPE A |
1 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-13128 |
1KDFTV..KDY221,231,251,261..EUR |
2 | ||
| 90467-13073 |
1KDFTV..KDY221,231,251,261..EUR |
2 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-13128 |
1KDFTV..KDY221,231,251,261..EUR |
2 | ||
| 90467-13073 |
1KDFTV..KDY221,231,251,261..EUR |
2 | ||
| 16284B - HOSE, TURBO WATER, NO.2 | ||||
| 16284-30080 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 16285 - HOSE, TURBO WATER, NO.2 | ||||
| 16285-30120 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 16285-30081 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-13128 |
1KDFTV..KDY221,231,251,261..EUR |
2 | ||
| 90467-13073 |
1KDFTV..KDY221,231,251,261..EUR |
2 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-13128 |
1KDFTV..KDY221,231,251,261..EUR |
2 | ||
| 90467-13073 |
1KDFTV..KDY221,231,251,261..EUR |
2 | ||
| 16291 - JOINT, WATER HOSE | ||||
| 16291-30010 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 16295 - HOSE, WATER BY-PASS, NO.7 | ||||
| 16295-30010 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 16295-30020 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-30090 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-30150 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 16347D - GASKET, WATER BY-PASS | ||||
| 16347-30010 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-30020 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| Common parts | ||||
| 90179-06080 | ||||
| 90467-13128 | ||||
| 90467-19022 | ||||
| 91551-80612 | ||||
| 91551-80812 | ||||
| 91551-80820 | ||||
| 91643-80635 | ||||
| 91671-80814 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 8716 | ||||

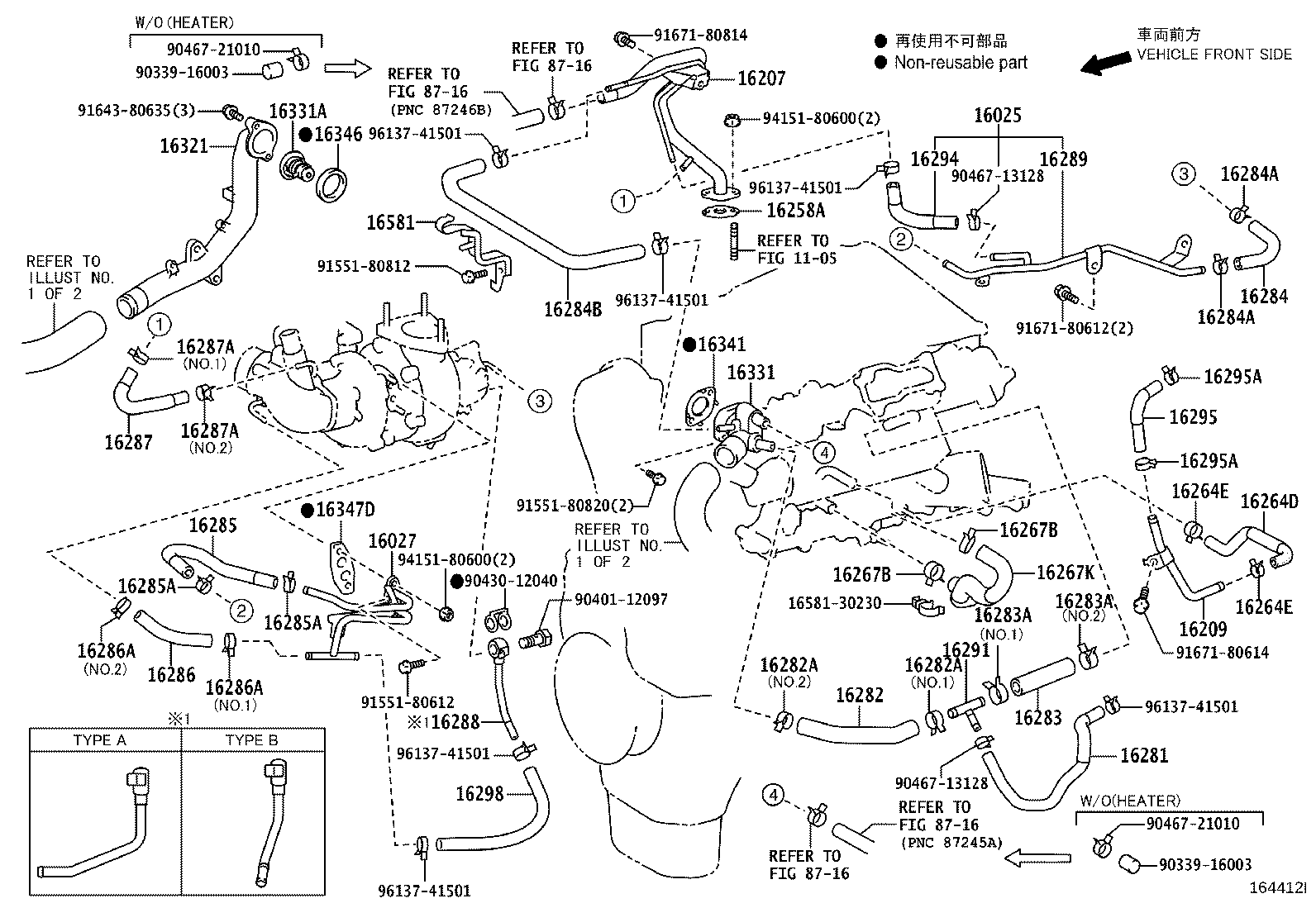

ILLUST NO. 2 OF 2(1109- )1KDFTV..EUR ; (1310- )1KDFTV..KDY221,231..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16025 - PIPE SUB-ASSY, WATER BY-PASS, NO.5 | ||||
| 16025-30021 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16027-30100 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 16027-30130 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 16027-30080 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 16207 - PIPE SUB-ASSY, WATER BY-PASS, NO.2 | ||||
| 16207-30160 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 16209 - PIPE SUB-ASSY, WATER BY-PASS, NO.4 | ||||
| 16209-30010 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 16264D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-30100 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 16267K - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-30150 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-30050 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 16281-30110 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-30030 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 16282-30020 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-19022 |
1KDFTV..KDY221,231,251,261..EUR NO.1:REFER ILLUST. |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-19022 |
1KDFTV..KDY221,231,251,261..EUR NO.1:REFER ILLUST. |
1 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-30010 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 16283-30020 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 90467-19022 |
1KDFTV..KDY221,231,251,261..EUR NO.1:REFER ILLUST. |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 90467-19022 |
1KDFTV..KDY221,231,251,261..EUR NO.1:REFER ILLUST. |
1 | ||
| 16284 - HOSE, TURBO WATER, NO.1 | ||||
| 16284-30100 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 16284-30050 |
1KDFTV..KDY221,231,251,261..EUR PNC 16288=TYPE A |
1 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-13128 |
1KDFTV..KDY221,231,251,261..EUR |
2 | ||
| 90467-13073 |
1KDFTV..KDY221,231,251,261..EUR |
2 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-13128 |
1KDFTV..KDY221,231,251,261..EUR |
2 | ||
| 90467-13073 |
1KDFTV..KDY221,231,251,261..EUR |
2 | ||
| 16284B - HOSE, TURBO WATER, NO.2 | ||||
| 16284-30080 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 16285 - HOSE, TURBO WATER, NO.2 | ||||
| 16285-30120 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 16285-30081 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-13128 |
1KDFTV..KDY221,231,251,261..EUR |
2 | ||
| 90467-13073 |
1KDFTV..KDY221,231,251,261..EUR |
2 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-13128 |
1KDFTV..KDY221,231,251,261..EUR |
2 | ||
| 90467-13073 |
1KDFTV..KDY221,231,251,261..EUR |
2 | ||
| 16286 - HOSE, TURBO WATER, NO.3 | ||||
| 16286-30110 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 16286A - CLIP(FOR TURBO WATER HOSE NO.3) | ||||
| 90467-15022 |
1KDFTV..KDY221,231,251,261..EUR NO.2 |
1 | ||
| 16286A - CLIP(FOR TURBO WATER HOSE NO.3) | ||||
| 90467-15022 |
1KDFTV..KDY221,231,251,261..EUR NO.2 |
1 | ||
| 16287 - HOSE, TURBO WATER, NO.4 | ||||
| 16287-30020 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 16287A - CLIP(FOR TURBO WATER HOSE NO.4) | ||||
| 90467-15022 |
1KDFTV..KDY221,231,251,261..EUR NO.2 |
1 | ||
| 16287A - CLIP(FOR TURBO WATER HOSE NO.4) | ||||
| 90467-15022 |
1KDFTV..KDY221,231,251,261..EUR NO.2 |
1 | ||
| 16288 - PIPE, WATER BY-PASS, NO.4 | ||||
| 16288-30010 |
1KDFTV..KDY221,231,251,261..EUR TYPE A:REFER ILLUST. |
1 | ||
| 16289 - PIPE, WATER BY-PASS, NO.5 | ||||
| 16289-30020 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 16291 - JOINT, WATER HOSE | ||||
| 16291-30010 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 16294 - HOSE, WATER BY-PASS, NO.11 | ||||
| 16293-30020 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 16295 - HOSE, WATER BY-PASS, NO.7 | ||||
| 16295-30010 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 16295-30020 |
1KDFTV..KDY221,231,251,261..EUR |
1 | ||
| 16298 - HOSE, WATER BY-PASS, NO.12 | ||||
| 16299-30010 |
1KDFTV..KDY221,231,251,261..EUR PNC 16288=TYPE A |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-30090 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-30150 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 16347D - GASKET, WATER BY-PASS | ||||
| 16347-30010 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-30020 |
1KDFTV..KDY221,231,251,261 |
1 | ||
| Common parts | ||||
| 16581-30230 | ||||
| 90339-16003 | ||||
| 90401-12097 | ||||
| 90430-12040 | ||||
| 90467-13128 | ||||
| 90467-21010 | ||||
| 91551-80612 | ||||
| 91551-80812 | ||||
| 91551-80820 | ||||
| 91643-80635 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91671-80814 | ||||
| 94151-80600 | ||||
| 96137-41501 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 8716 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
