KDY230L-PBMEYW3 (2001)
Toyota Dyna
Production
Aug 2001
-
Sep 2006
Engine
2KDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0108- )KDY22#,23#,25#,26#

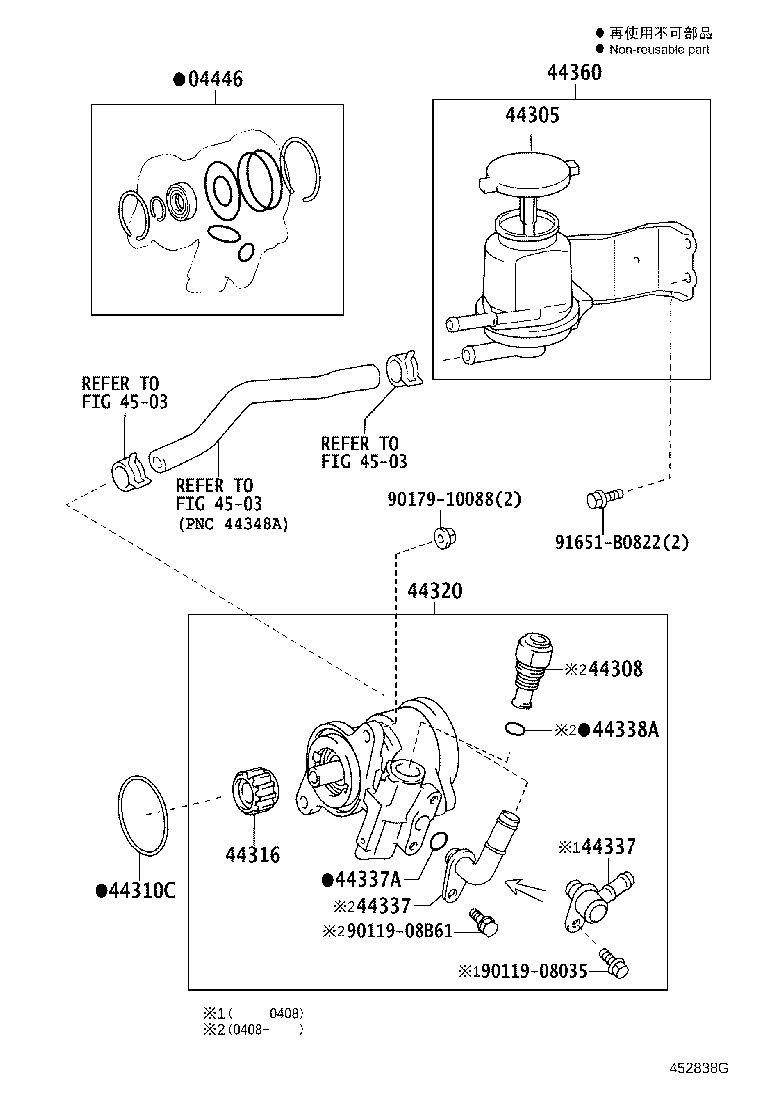

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-34010 |
LY22#,23# |
1 | ||
| 04446-53030 |
LY22#,23# |
1 | ||
| 04446-35070 |
KDY22#,23#,25#,26# |
1 | ||
| 04446-26050 |
KDY220,230,250,260 |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-28030 |
KDY22#,23#,25#,26#,LY220,230 |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-26120 |
KDY22#,23#,25#,26# |
1 | ||
| 44310C - RING, O(FOR VANE PUMP) | ||||
| 90301-60002 |
KDY22#,23#,25#,26# |
1 | ||
| 44316 - GEAR, VANE PUMP | ||||
| 44316-60030 |
KDY22#,23#,25#,26# |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-25090 |
LY22#,23# |
1 | ||
| 44310-25150 |
KDY22#,23#,25#,26# |
1 | ||
| 44310-25110 |
KDY220,230,250,260 |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-25020 |
KDY220,230,250,260 |
1 | ||
| 44337-25030 |
KDY22#,23#,25#,26# |
1 | ||
| 44337-35070 |
LY22#,23# |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-25020 |
KDY220,230,250,260 |
1 | ||
| 44337-25030 |
KDY22#,23#,25#,26# |
1 | ||
| 44337-35070 |
LY22#,23# |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90301-11020 |
KDY22#,23#,25#,26# |
1 | ||
| 90301-11016 |
LY22#,23# |
1 | ||
| 90301-11016 |
KDY220,230,250,260 |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-18009 |
KDY22#,23#,25#,26# OD=22,ID=18.6 |
1 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-25030 |
KDY22#,23#,25#,26#,LY220,230 |
1 | ||
| Common parts | ||||
| 90119-08035 | ||||
| 90119-08B61 | ||||
| 90179-10088 | ||||
| 91651-B0822 | ||||
| Linked diagrams | ||||
| 4503 | ||||
