HU50R-MRDTQ3 (1982)

Toyota Dyna

Production Apr 1982 - Aug 1984
Engine 2H
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8204-8408)2H

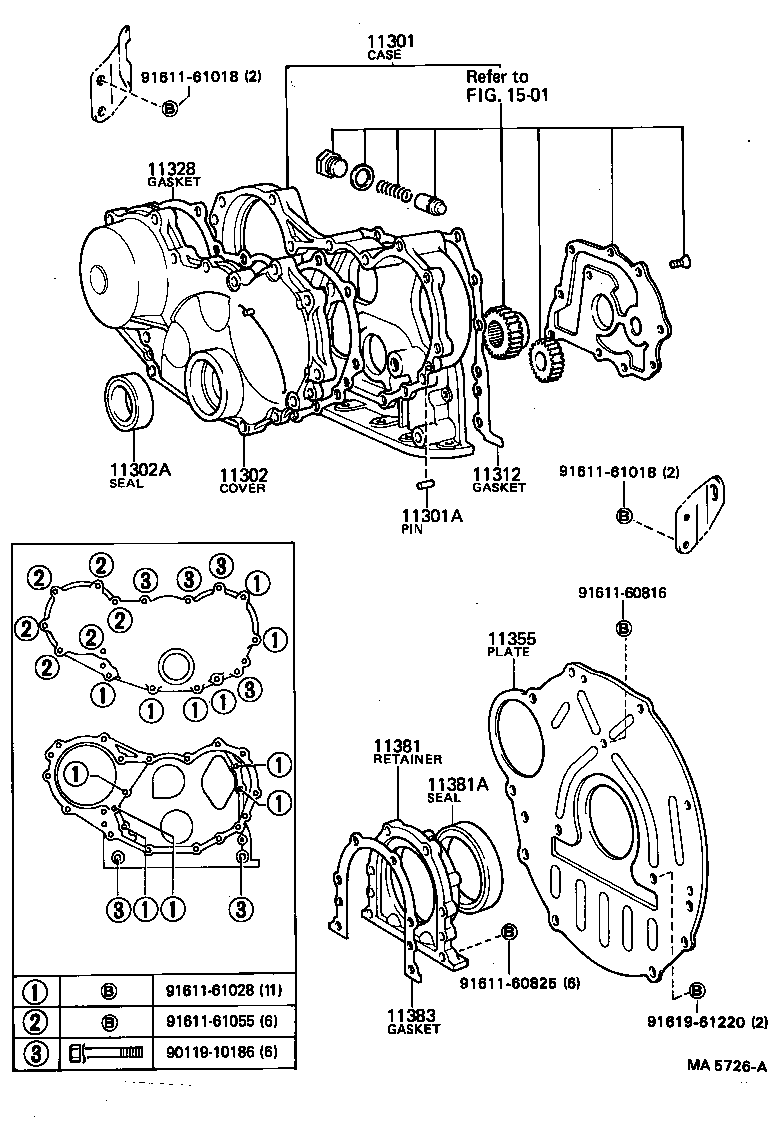

Click highlighted areas on diagram

diagram 11301 11301A 11302 11302A 11312 11328 11355 11381 11381A 11383 1501 9011910186 9161160816 9161160825 9161161018 9161161018 9161161028 9161161055 9161961220
Part # Description Qty Price
11301 - CASE SUB-ASSY, TIMING GEAR
11301-68010

2H..HU40,50

 1
11301A - PIN, STRAIGHT(FOR TIMING GEAR CASE)
90250-08120

B,2B,3B..BU2#,3#,40

L=18,OD=8,L=18,OD=8

 2
90250-08120

H,2H..HU30,40,50

L=18,OD=8,L=18,OD=8

 2
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-68011

2H..HU40,50

 1
11321-68010

2H..HU40,50

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-50049

2H..HU40,50

TC3 50 72 12

 1
90311-50006

2H..HU40,50

 1
90311-50002

B,2B,3B..BU2#,3#,40

 1
11312 - GASKET, FRONT END PLATE
11312-68010

2H..HU40,50

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-68010

2H..HU40,50

 1
11355 - PLATE, REAR END
11355-68010

2H..HU40,50

 1
11355-56051

B,2B,3B..BU2#,3#,40

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-68010

2H..HU40,50

 1
11381A - SEAL, ENGINE REAR OIL
90311-95002

2H..HU40,50

 1
90311-95001

B,2B,3B..BU2#,3#,40

HTC 95 115 12

 1
90311-95001

2H..HU40,50

HTC 95 115 12

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-47010

2H..HU40,50

 1
Common parts
90119-10186
91611-60816
91611-60825
91611-61018
91611-61028
91611-61055
91619-61220
Linked diagrams
1501
