HU50R-MRDT3 (1982)

Toyota Dyna

Production Apr 1982 - Aug 1984
Engine 2H
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8204-8408)2H

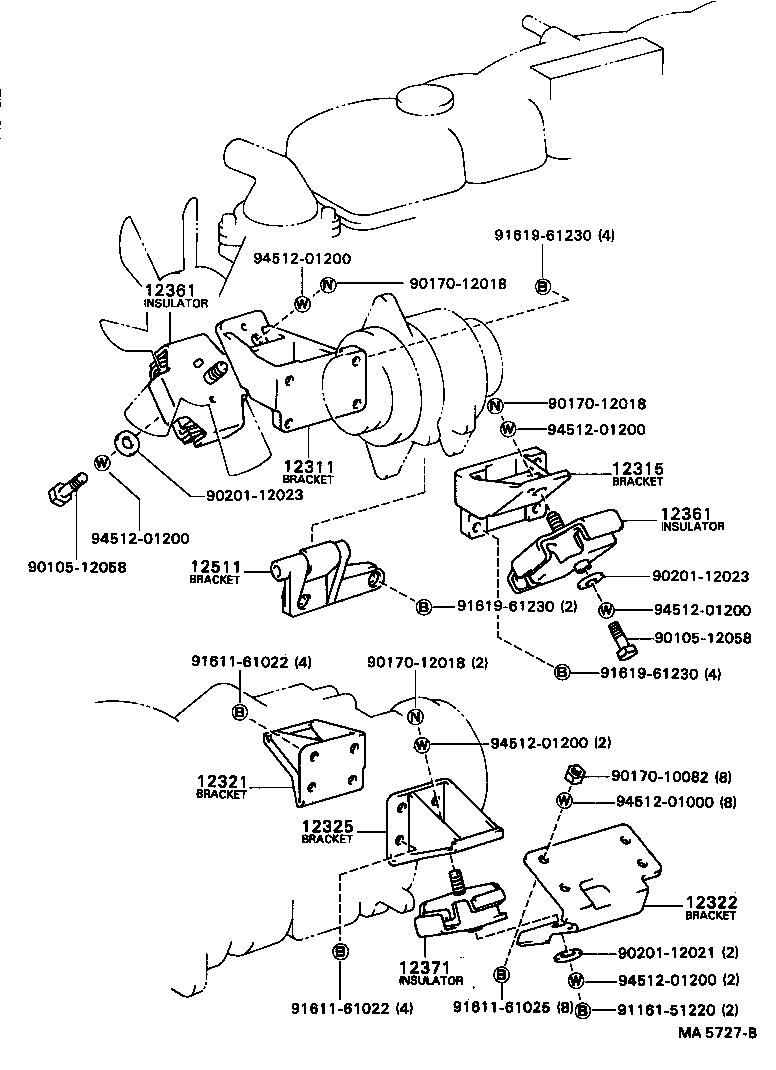

Click highlighted areas on diagram

diagram 12311 12315 12321 12322 12325 12361 12361 12371 12511 9010512058 9010512058 9017010082 9017012018 9017012018 9017012018 9020112021 9020112023 9020112023 9116151220 9161161022 9161161022 9161161025 9161961230 9161961230 9161961230 9451201000 9451201200 9451201200 9451201200 9451201200 9451201200 9451201200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-68050

2H..HU40,50

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-68030

2H..HU40,50

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-56031

B,2B,3B..BU20,23,3#,40

 1
12321-68020

2H..HU40,50

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12326-68010

2H..HU40,50

LH

 1
12322-68020

2H..HU40,50

RH

 1
12325 - BRACKET, ENGINE MOUNTING, NO.3
12325-68020

2H..HU40,50

 1
12325-56021

B,2B,3B..BU20,23,3#,40

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12362-68010

2H..HU40,50

LH

 1
12361-68040

2H..HU40,50

RH

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12362-68010

2H..HU40,50

LH

 1
12361-68040

2H..HU40,50

RH

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-68030

2H..HU40,50

 2
12511 - BRACKET, ALTERNATOR, NO.1
12511-68010

2H..HU40,50

 1
Common parts
90105-12058
90170-10082
90170-12018
90201-12021
90201-12023
91161-51220
91611-61022
91611-61025
91619-61230
94512-01000
94512-01200
