HU50R-MRDT3 (1982)

Toyota Dyna

Production Apr 1982 - Aug 1984
Engine 2H
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8204-8408)2H

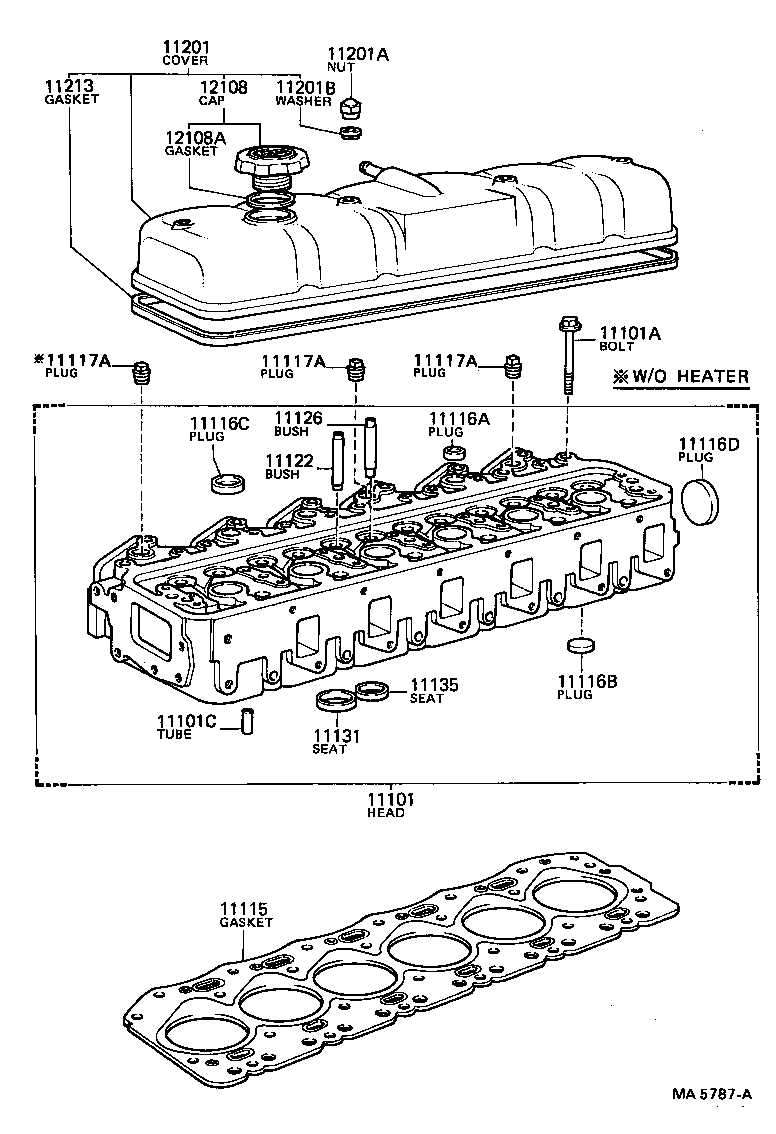

Click highlighted areas on diagram

diagram 11101 11101A 11101C 11115 11116A 11116B 11116C 11116D 11117A 11117A 11117A 11122 11126 11131 11135 11201 11201A 11201B 11213 12108 12108A
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-68011

2H..HU40,50

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02070

2H..HU40,50

*12-1.25PX119-25

 26
90910-02046

B,2B,3B..BU2#,3#,40

*12-1.25PX119-25

 18
11101C - TUBE(FOR CYLINDER HEAD)
90440-15141

2H..HU40,50

 6
11115 - GASKET, CYLINDER HEAD
11115-68010

2H..HU40,50

 1
11116A - PLUG, TIGHT, NO.1
96411-42000

2H..HU40,50

OD=20

 3
11116B - PLUG, TIGHT, NO.2
96411-12500

B,2B,3B..BU2#,3#,40

OD=25

 4
96411-42500

2H..HU40,50

OD=25

 5
11116C - PLUG, TIGHT, NO.3
96411-43000

2H..HU40,50

OD=30

 12
11116D - PLUG, TIGHT, NO.4
96411-45000

2H..HU40,50

OD=50

 1
96411-12800

B,2B,3B..BU2#,3#,40

OD=28

 3
11122 - BUSH, INTAKE VALVE GUIDE
11122-56020

B,2B,3B..BU2#,3#,40

STD

 4
11122-68010

2H..HU40,50

STD,STD

 6
11126 - BUSH, EXHAUST VALVE GUIDE
11122-68010

2H..HU40,50

STD,STD

 6
11122-56020

B,2B,3B..BU2#,3#,40

STD

 4
11131 - SEAT, INTAKE VALVE
11131-68010

2H..HU40,50

STD

 6
11135 - SEAT, EXHAUST VALVE
11135-68010

2H..HU40,50

STD

 6
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-69055

2H..HU40,50

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
11295-46010

B,2B,3B..BU2#,3#,40

 4
90176-08014

2H..HU40,50

 4
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-13001

2H..HU40,50

 4
11213 - GASKET, CYLINDER HEAD COVER
11213-68010

2H..HU40,50

 1
