HU40R-MRDT3 (1982)

Toyota Dyna

Production Apr 1982 - Aug 1984
Engine 2H
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8204-8408)HU40,50,WU40,50

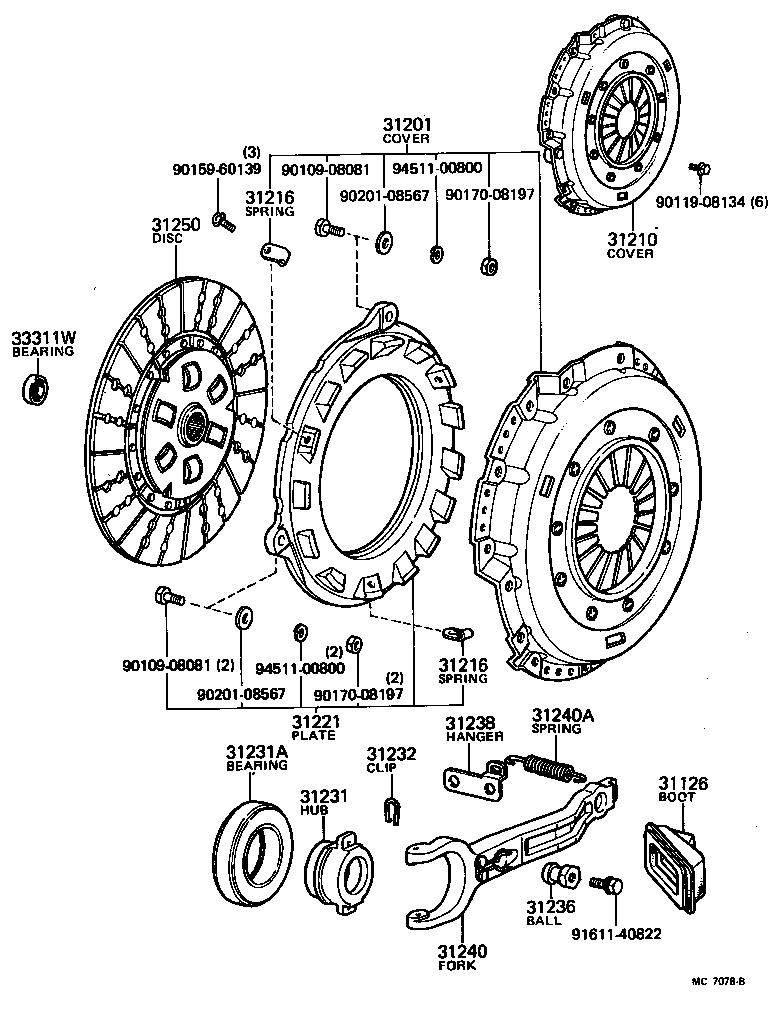

Click highlighted areas on diagram

diagram 31126 31201 31210 31216 31216 31221 31231 31231A 31232 31236 31238 31240 31240A 31250 33311W 9010908081 9010908081 9011908134 9015960139 9017008197 9017008197 9020108567 9020108567 9161140822 9451100800 9451100800
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-20050

BU2#,3#,40,RU2#,30

 1
31126-60021

HU40,50,WU40,50

 1
31201 - COVER SUB-ASSY, CLUTCH
31201-69027

HU40,50,WU40,50

 1
31210 - COVER ASSY, CLUTCH
31210-60042

HU40,50,WU40,50

 1
31216 - SPRING, CLUTCH RETRACTING
31216-60010

HU40,50,WU40,50

 3
31216-36010

BU2#,3#,40

 3
31216 - SPRING, CLUTCH RETRACTING
31216-60010

HU40,50,WU40,50

 3
31216-36010

BU2#,3#,40

 3
31221 - PLATE, CLUTCH PRESSURE
31221-69025

HU40,50,WU40,50

 1
31231 - HUB, CLUTCH RELEASE BEARING
31231-60050

HU40,50,WU40,50

 1
31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB)
90363-52001

HU40,50,WU40,50

 1
90363-45001

BU2#,3#

 1
31232 - CLIP OR SPRING, RELEASE BEARING HUB
31232-60020

HU40,50,WU40,50

 2
31232-30010

BU2#,3#,40,JU20

 2
31236 - BALL, RELEASE FORK
31236-60030

HU40,50,WU40,50

 1
31238 - HANGER, RELEASE FORK RETRACTING SPRING
31238-60060

HU40,50

 1
31240 - FORK ASSY, CLUTCH RELEASE
31204-60040

HU40,50

 1
31204-60041

HU40,50,WU40,50

 1
31240A - SPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)
90506-16004

BU2#,3#,40,JU20,RU2#,30

 1
90506-16475

HU30,40,50,WU40,50

 1
31250 - DISC ASSY, CLUTCH
31250-36161

BU2#,3#,40

 1
31250-36150

HU40,50

 1
31250-36210

HU40,50

 1
Common parts
90109-08081
90119-08134
90159-60139
90170-08197
90201-08567
91611-40822
94511-00800
